Запчасти Case IH PATRIOT 4440 (55.515.AL[03]) - AUTOBOOM CONTROL KIT, 90/100 BOOM, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

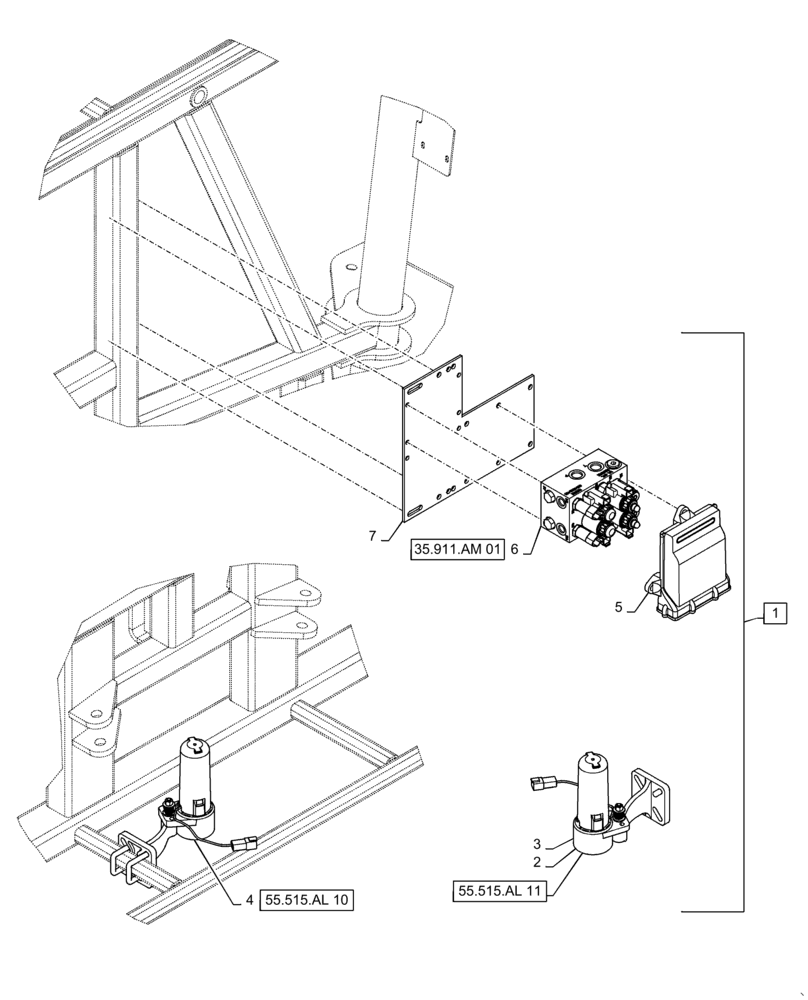

Схема запчастей Case IH PATRIOT 4440 - (55.515.AL[03]) - AUTOBOOM CONTROL KIT, 90/100 BOOM, BSN YGT044001 (55) - ELECTRICAL SYSTEMS
35.911.am 01
3
55.515.al 10
1
7
4
2
6
55.515.al 11
5

Артикул

Название

Примечание

Количество

1

47545007

CONTROLLER

DIA Kit, Autoboom Control, 90'/100', Incl 2 -11, Serial Range: -YGT044000

1шт.

1

48030076

Autoboom Control, 90'/100', Incl 2 -11, Start Serial: YGT044001

KIT

1шт.

2

87710685

SENSOR

Ultrasonic, RH

1шт.

3

87710686

SENSOR

Ultrasonic, LH

1шт.

4

84247475

SENSOR

Ultrasonic, Digital, 4 Pin, Center

1шт.

5

87717349

MODULE

Autoboom Node, CAN Control, Serial Range: -YGT044000

1шт.

5

87717349R

REMAN-MODULE

4430 - PATRIOT SPRAYER TIER 4 , Serial Range: -YGT044000

1шт.

5

87717349C

CORE-MODULE

Return Number, Serial Range: -YGT044000

1шт.

5

48030111

ECU

Autoboom Node, CAN Control, Start Serial: YGT044001

1шт.

6

84299098

HYDRAULIC VALVE

Autoboom

1шт.

7

87718266

MOUNTING PLATE

Autoboom Node and Hydraulic Valve

1шт.

8

84180940

WIRE HARNESS

60' Extension, Ultrasonic Sensor, Not Shown

2шт.

9

84241505

WIRE HARNESS

Autoboom Control, Not Shown

1шт.

10

87718974

SERVICE MANUAL

Autoboom Calibration, Not Shown, Serial Range: -YGT044000

1шт.

11

87718973

SERVICE MANUAL

Autoboom, Case IH, Not Shown

1шт.

Выбрано товаров: 15
