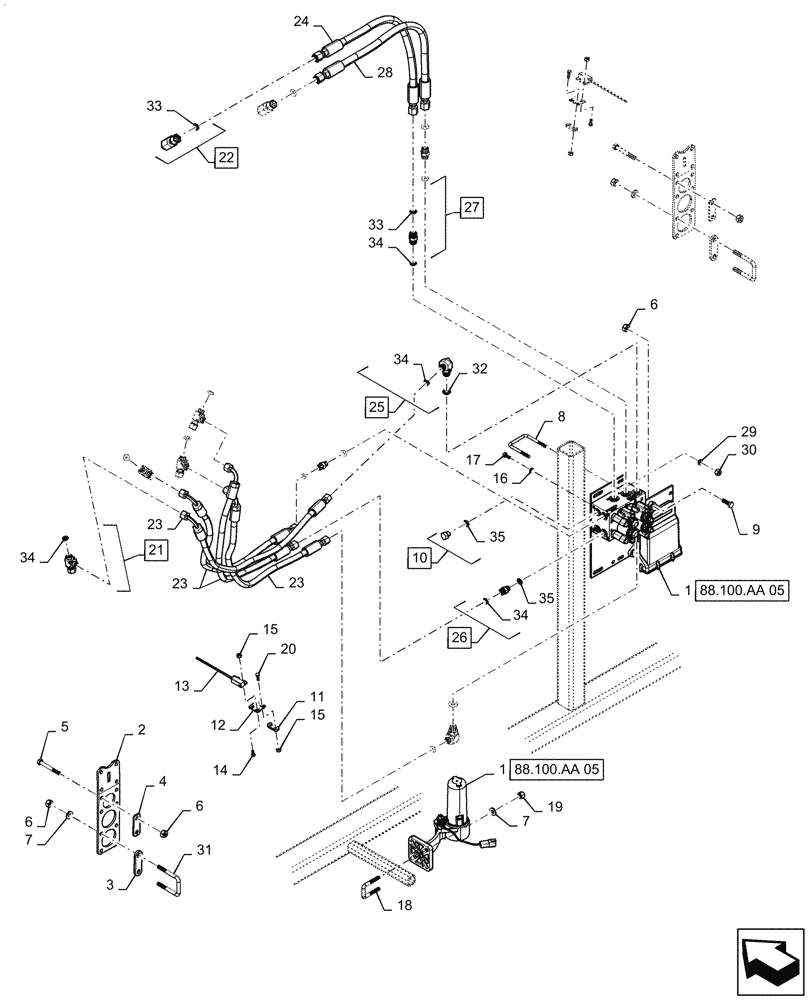

Запчасти Case IH PATRIOT 4440 (55.515.AL[02.1]) - AUTOBOOM MOUNTING PARTS, HOSES, AND SENSORS, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

48030076

DIA Kit, Autoboom Control, 90'/100', Includes Control Node, Hydraulic Valve, Harnesses, and Sensors

KIT

1шт.

2

47593329

MOUNT

Tall Sensor Mount

2шт.

3

47654165

SPACER

U - Bolt

4шт.

4

87628243

PLATE

Backer, 1-1/2" Tube, Sensor Mount

4шт.

5

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

8шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

19шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

8

BN313492

U-BOLT

5/16" x 2 1/2" ID

2шт.

9

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

10

BN446048

PLUG

9/16" -18 ORB, Incl 35

2шт.

11

84476044

SPACER

Position Sensor

2шт.

12

84476037

SUPPORT

Position Sensor

2шт.

13

BN315498

SWITCH

Proximity Sensor, W/ Diode

2шт.

14

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

15

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

16

80681

LOCK WASHER,5/16"

4шт.

17

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

18

BN67284

U-BOLT

3/8-16, Square Bend, 1 1/4" ID x 2 3/4" Long

2шт.

19

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.

20

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

21

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel, Incl 34

4шт.

22

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel, Incl 33

2шт.

23

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

11/16 -16 ORFS Swivel Medium Elbow x 11/16 -16 ORFS Swivel x 3/8" ID x 42" Long, Autoboom Valve to Boom Valve Bank

4шт.

24

87487132

HOSE ASSY.

13/16 -16 ORFS Swivel x 13/16 -16 ORFS Swivel x 1/2" ID x 32" Long, Autoboom Valve to Pressure Port on Boom Valve Bank

1шт.

25

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg, Incl 32, 34

2шт.

26

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Incl 34, 35

2шт.

27

BN302650

FITTING

13/16" - 16 ORFS x 3/4" - 16 ORB, Incl 32, 33

2шт.

28

87487133

HOSE ASSY.

13/16 -16 ORFS Swivel x 13/16 -16 ORFS Swivel x 1/2" ID x 34" Long, Autoboom Valve to Tank Port on Boom Valve Bank

1шт.

29

87529232

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

4шт.

30

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

31

47650282

U-BOLT

M10, 2" ID x 3 1/4" Long

4шт.

32

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

33

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

34

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

14шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
