(55.515.AK[04]) - ONE TOUCH FOLD HARNESS

Запчасти Case IH PATRIOT 4440 (55.515.AK[04]) - ONE TOUCH FOLD HARNESS (55) - ELECTRICAL SYSTEMS

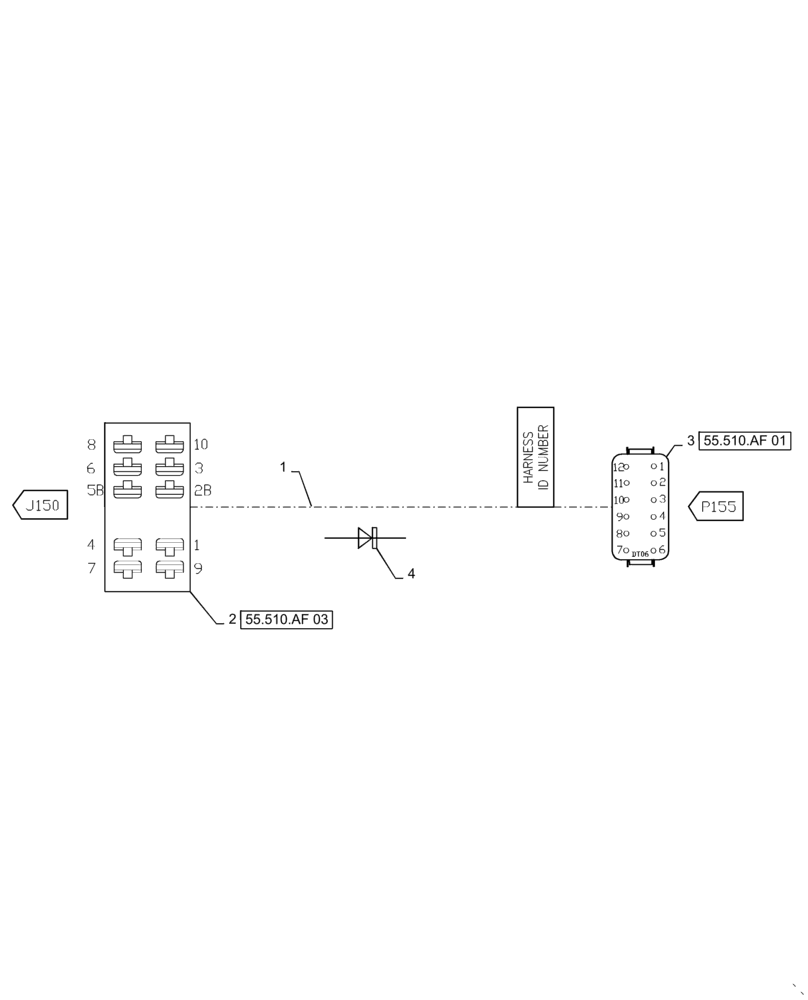

Схема запчастей Case IH PATRIOT 4440 - (55.515.AK[04]) - ONE TOUCH FOLD HARNESS (55) - ELECTRICAL SYSTEMS
55.510.af 01
2
1
4
3
55.510.af 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87397319

WIRE HARNESS

EZ Fold

1шт.

2

BN310610

ELEC CONNECTOR,Female, 10 Pin

EZ Fold Switch, J150

1шт.

182136A1

TERMINAL CONNECTOR

Terminal, EZ Fold Switch, J150

10шт.

3

225389C1

CONNECTOR, ELEC

CONNECTOR RH Console Interface, P155

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Console Interface, P155

9шт.

84068583

PLUG,12 - 16 Ga, White

RH Console Interface, P155

3шт.

4

BN16174

DIODE,600V, 3A

3A, 600V

8шт.
