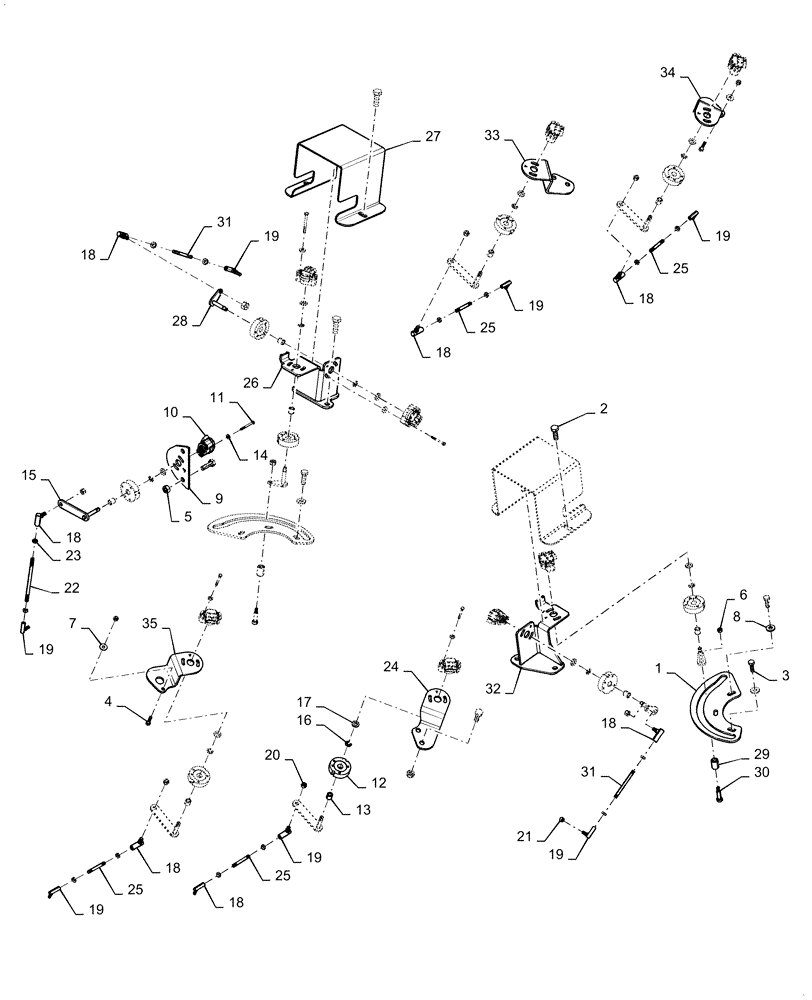

Запчасти Case IH PATRIOT 4440 (55.515.AK[03]) - AUTOFOLD SENSORS, 120 BOOM, ASN YFT042000 (55) - ELECTRICAL SYSTEMS

1

87482929

CAM

Pivot Sensor

2шт.

2

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

14шт.

3

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

7

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

9

47418265

MOUNT

Center Section Sensor

1шт.

10

47708484

SENSOR

Angle Position

9шт.

11

87384106

BOLT,M4 x 42.92mm, Cl 8.8

18шт.

12

87362418

MOUNT

Round Sensor Bushing

9шт.

13

47416080

BUSHING

Autofold

9шт.

14

BN310265

WASHER

#10, Stainless Steel

18шт.

15

87046644

ROD

A

5шт.

16

86640147

SNAP RING,#31, Ext, E-Type

9шт.

17

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, DOR

9шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

1/4" Ball

7шт.

19

86550597

BALL JOINT,1/4" -28 x 1

Quick Disconnect

7шт.

20

231-2444

NUT,1/4"-28, GB

7шт.

21

20332

LOCK NUT,#10-32, GB

3шт.

22

84135001

TIE-ROD

1/4" -28 x 136mm, DOR, Center Position Sensor

1шт.

23

86976064

JAM NUT,Jam, 1/4"-28, G5

14шт.

24

47912977

MOUNT

LH Mid Autofold Sensor

1шт.

25

84135003

TIE-ROD

1/4" -28 x 52mm, DOR, Mid and Outer Boom Fold Position Sensors

4шт.

26

47929082

MOUNT

RH Boom Pivot

1шт.

27

87488487

COVER

Pivot Position Sensors

2шт.

28

431034A1

ARM

Potentiometer

4шт.

29

87488496

ROLLER

Cam, Poly

2шт.

30

87495287

HEX SOC SCREW,Shoulder, M6 - 8 x 25 mm, Cl 12.9

2шт.

31

84135002

TIE-ROD

1/4" -28 x 78mm, DOR, Pivot Position Sensors

2шт.

32

47929086

MOUNT

LH Boom Pivot

1шт.

33

47910778

MOUNT

RH Mid Autofold Sensor

1шт.

34

47910770

MOUNT

RH Outer Autofold Sensor

1шт.

35

47911436

MOUNT

LH Outer Autofold Sensor

1шт.
