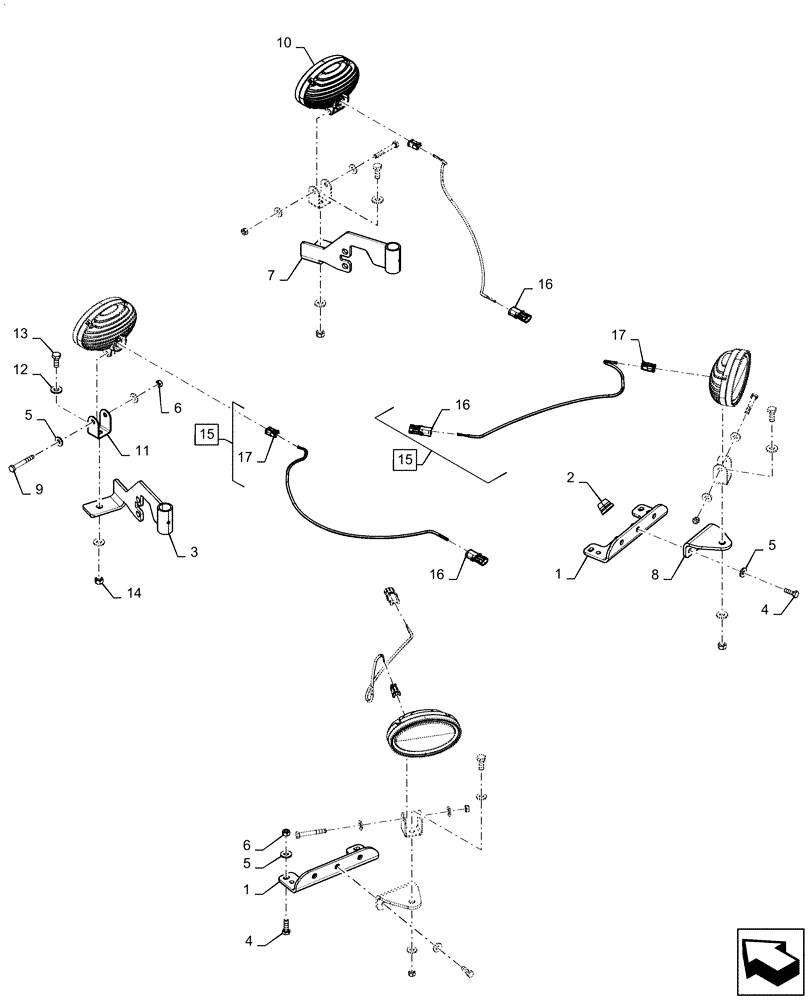

Запчасти Case IH PATRIOT 4440 (55.514.AB[04]) - CAB ROOF LIGHTS, LED ASSY (55) - ELECTRICAL SYSTEMS

1

84406221

SUPPORT

Rear Light

2шт.

2

182049A1

GROMMET

Rubber

2шт.

3

84396156

MOUNT

LH Front Light

1шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

20шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

7

84396157

MOUNT

RH Front Light

1шт.

8

84406226

MOUNT

Rear Light

2шт.

9

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

4шт.

10

47683634

WORK LAMP

LED, 30W, Oval Flood

4шт.

11

47856324

MOUNT

Light

4шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

13

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

15

47825679

WIRE HARNESS

LED Adapter, Incl 16, 17

4шт.

16

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cab Roof Harness, C939F

4шт.

17

87711966

PLUG

Female, 2 Cavity, LED Lamp, C940

4шт.

17

87712180

ELEC CONNECTOR

2 Way, Wedgelock, LED Lamp, C940

4шт.
