(55.514.AB[02]) - CAB ROOF LIGHTS, HID , ASSY

Запчасти Case IH PATRIOT 4440 (55.514.AB[02]) - CAB ROOF LIGHTS, HID , ASSY (55) - ELECTRICAL SYSTEMS

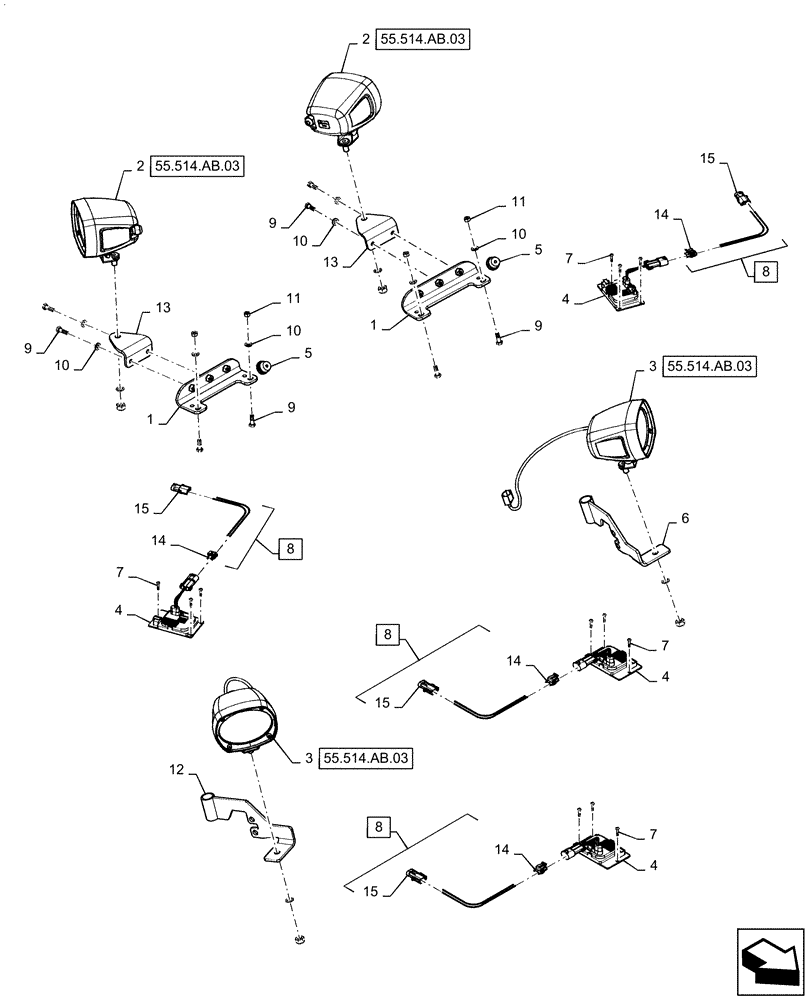

Схема запчастей Case IH PATRIOT 4440 - (55.514.AB[02]) - CAB ROOF LIGHTS, HID , ASSY (55) - ELECTRICAL SYSTEMS
55.514.ab.03
8
10
9
15
10
9
13
8
11
14
3
10
7
2
14
12
7
6
10
4
4
14
15
8
14
5
7
1
7
15
15
13
8
5
3
2
1
4
4
11
9
9
55.514.ab.03
55.514.ab.03
55.514.ab.03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84406221

SUPPORT

Rear HID Light

2шт.

2

87475202

LAMP

Trap, Rear HID

2шт.

See 55.514.AB 03 for Service

1шт.

3

87475205

LAMP,HID, 12V, 35W, Clear

Flood, Front HID

2шт.

See 55.514.AB 03 for Service

1шт.

4

87475204

BALLAST

HID Light

4шт.

5

182049A1

GROMMET

Roof

2шт.

6

84396156

MOUNT

LH Front Work Light

1шт.

7

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

12шт.

8

87475203

CABLE TERMINAL

Harness, Ballast to Roof Harness, Incl 14, 15

4шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

12шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

12

84396157

MOUNT

RH Front Work Light

1шт.

13

84406226

MOUNT

Rear HID Light

2шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

4шт.

15

256342A1

ELEC CONNECTOR,Female, 2 Pin

4шт.
