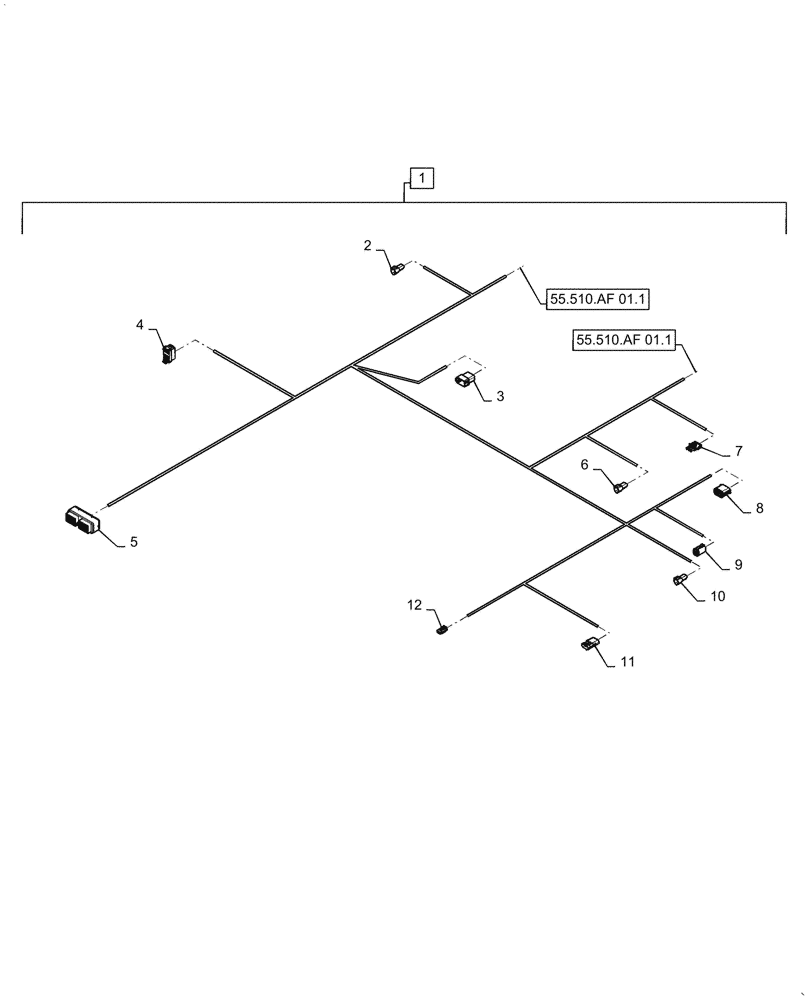

Запчасти Case IH PATRIOT 4440 (55.510.AF[01.2]) - RH CONSOLE HARNESS, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

48070378

WIRE HARNESS

RH Console Harness, Incl 2 - 12

1шт.

2

87695723

ELEC CONNECTOR,Male , 3 Pole

TPS Interface, X-147M

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, X-147M

3шт.

2

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, X-147M

1шт.

3

87695724

ELEC CONNECTOR,Male, 12 Pole

One Touch Fold, X-155M

1шт.

3

87695623

ELEC. TERMINAL PIN

Male, X-155M

9шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavity, X-155M

3шт.

4

BN310610

ELEC CONNECTOR,Female, 10 Pin

Park Brake Switch, X-122F

1шт.

4

87697752

TERMINAL

Female,Tin, X-122F

5шт.

4

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-122F

1шт.

5

87707115

CONTACT HOUSING,Female, 70 Pole

RH Console Interface, X-128F

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-128F

54шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-128F

1шт.

5

84068583

PLUG,12 - 16 Ga, White

Cavity, X-128F

15шт.

5

87271606

BOOT

Connector, X-128F

1шт.

6

87695723

ELEC CONNECTOR,Male , 3 Pole

Foam Volume, X-113M

1шт.

6

87695623

ELEC. TERMINAL PIN

Male, X-113M

3шт.

6

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, X-113M

1шт.

7

87644909

WIRE CONNECTOR,Female, 3 Pins

Hydraulic Controller, X-144F

1шт.

7

87692856

CABLE TERMINAL

Female,Tin, X-144F

3шт.

7

84286327

SEAL

Wire, Green, X-144F

3шт.

8

87695592

CONTACT HOUSING,Female, 12 Pole

Control Handle, X-101F

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-101F

9шт.

8

84068583

PLUG,12 - 16 Ga, White

Cavity, X-101F

1шт.

8

87695651

LOCKING TAB,Wedge Lock

X-101F

1шт.

9

87694112

ELEC CONNECTOR,Female, 6 Pole

Control Handle Power, X-100F

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-100F

5шт.

9

84068583

PLUG,12 - 16 Ga, White

X-100F

3шт.

9

87694150

LOCKING TAB,Wedge Lock

X-100F

1шт.

10

87695723

ELEC CONNECTOR,Male , 3 Pole

Axle Adjustment, X-123M

1шт.

10

87695623

ELEC. TERMINAL PIN

Male, Nickel, X-123M

3шт.

10

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, X-123M

1шт.

11

87692858

ELEC CONNECTOR,Male

Reverse, X-146M

1шт.

11

87692880

CABLE TERMINAL

Male, Tin, X-146M

2шт.

11

84286327

SEAL

Wire, Green, X-146M

2шт.

11

87686742

PLUG

Cavity, Green, X-146M

1шт.

12

87696551

CONTACT HOUSING,Female, 3 Pole

Neutral, X-145F

1шт.

12

87704042

TERMINAL

Female, Nickel, X-145F

2шт.

12

225055C1

PLUG

Blind Seal, Red, X-145F

1шт.

12

87705586

WEDGE

Lock, X-145F

1шт.
