Запчасти Case IH PATRIOT 4440 (55.510.AF[01.1]) - RH CONSOLE HARNESS, PART 1, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

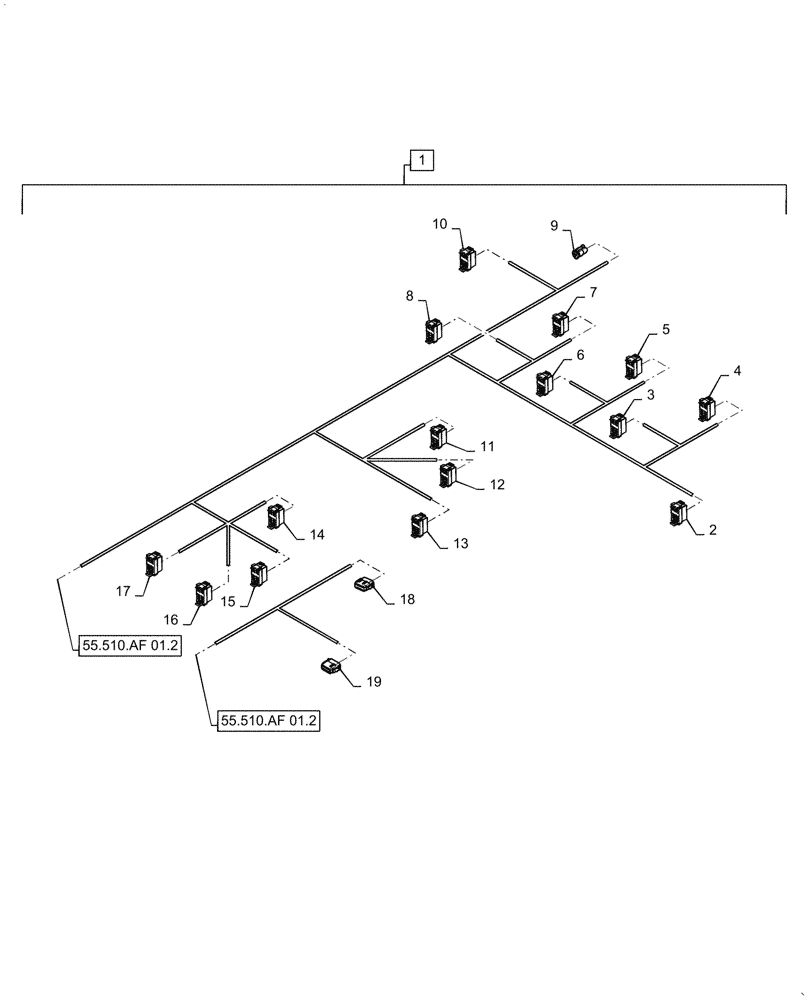

Схема запчастей Case IH PATRIOT 4440 - (55.510.AF[01.1]) - RH CONSOLE HARNESS, PART 1, ASN YGT044000 (55) - ELECTRICAL SYSTEMS
17
13
6
15
9
7
12
16
4
10
1
18
19
14
5
2
11
3
8
55.510.af 01.2
55.510.af 01.2

Артикул

Название

Примечание

Количество

1

48070378

WIRE HARNESS

RH Harness, Complete, Incl 2 - 19

1шт.

2

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Section 1, X-106F

1шт.

2

87697752

TERMINAL

Female,Tin, X-106F

2шт.

2

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-106F

2шт.

3

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Section 2, X-107F

1шт.

3

87697752

TERMINAL

Female,Tin, X-107F

2шт.

3

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-107F

2шт.

4

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Section 3, X-108F

1шт.

4

87697752

TERMINAL

Female,Tin, X-108F

2шт.

4

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-108F

2шт.

5

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Section 4, X-109F

1шт.

5

87697752

TERMINAL

Female,Tin, X-109F

2шт.

5

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-109F

2шт.

6

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Section 5, X-110F

1шт.

6

87697752

TERMINAL

Female,Tin, X-110F

2шт.

6

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-110F

2шт.

7

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Section 3, X-111F

1шт.

7

87697752

TERMINAL

Female,Tin, X-111F

2шт.

7

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-111F

2шт.

8

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Section 3, X-112F

1шт.

8

87697752

TERMINAL

Female,Tin, X-112F

2шт.

8

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-112F

2шт.

9

87695580

ELEC CONNECTOR,Female, 3 Pole

Forward Speed, X-102F

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-102F

3шт.

9

84074639

LOCKING TAB,Wedge Lock

X-102F

1шт.

10

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Switch, Level, X-118F

1шт.

10

87697752

TERMINAL

Female,Tin, X-118F

3шт.

11

BN310610

ELEC CONNECTOR,Female, 10 Pin

Fence Row Switch, X-116F

1шт.

11

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-116F

2шт.

11

87697752

TERMINAL

Female, Tin, X-116F

4шт.

12

BN310610

ELEC CONNECTOR,Female, 10 Pin

Foam Advance, X-289F

1шт.

12

87697752

TERMINAL

Female, Tin, X-289F

2шт.

13

BN310610

ELEC CONNECTOR,Female, 10 Pin

Foam Marker, X-114F

1шт.

13

87697752

TERMINAL

Female, Tin, X-114F

2шт.

13

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-114F

1шт.

14

BN310610

ELEC CONNECTOR,Female, 10 Pin

RH Boom Tip, X-119F

1шт.

14

87697752

TERMINAL

Female, Tin, X-119F

3шт.

15

BN310610

ELEC CONNECTOR,Female, 10 Pin

RH Boom Tip, X-117F

1шт.

15

87697752

TERMINAL

Female, Tin, X-117F

3шт.

16

BN310610

ELEC CONNECTOR,Female, 10 Pin

Sparge Pressure, X-120F

1шт.

16

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-120F

2шт.

16

87697752

TERMINAL

Female, Tin, X-120F

4шт.

17

BN310610

ELEC CONNECTOR,Female, 10 Pin

Master Power, X-121F

1шт.

17

87697752

TERMINAL

Female, Tin, X-121F

4шт.

17

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-121F

2шт.

18

87700156

CONTACT HOUSING,Female, 12 Pole

Speed Node "A", X-249F

1шт.

18

87704042

TERMINAL

Female, Nickel, X-249F

11шт.

18

84807680

PLUG

Cavity, X-249F

1шт.

18

87705198

WEDGE

Lock, 12 Way, X-249F

1шт.

19

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Speed Node "B", X-251F

1шт.

19

87704042

TERMINAL

Female, Nickel, X-251F

3шт.

19

84807680

PLUG

Cavity, X-251F

7шт.

19

87705198

WEDGE

Lock, 12 Way, X-251F

1шт.

Выбрано товаров: 53
