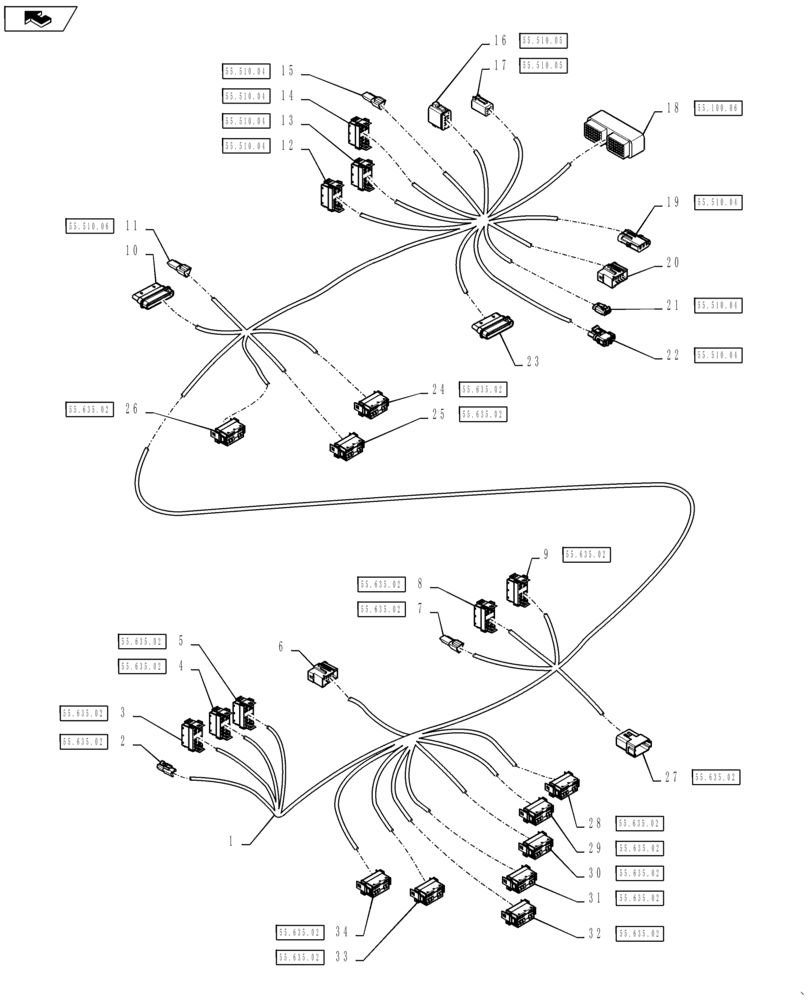

Запчасти Case IH PATRIOT 4440 (55.510.AF[01]) - RH CONSOLE HARNESS, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

1

84281626

HARNESS

RH Console Harness

1шт.

2

87695580

ELEC CONNECTOR,Female, 3 Pole

Forward Speed, C102F

1шт.

2

87695646

WEDGE

Forward Speed, C102F

1шт.

2

381418A1

SOCKET

Terminal, Forward Speed, C102F

3шт.

3

BN310610

ELEC CONNECTOR,Female, 10 Pin

Aim Command, Auto/ Manual, C103F

1шт.

3

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Aim Command, Auto/ Manual, C103F

9шт.

4

BN310610

ELEC CONNECTOR,Female, 10 Pin

Aim Command Pressure, Increase/ Decrease, C104F

1шт.

4

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Aim Command Pressure, Increase/ Decrease, C104F

3шт.

5

BN310610

ELEC CONNECTOR,Female, 10 Pin

Aim Command, P1/ P2, C105F

1шт.

5

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Aim Command, P1/ P2, C105F

3шт.

6

87352746

ELEC CONNECTOR

Splice 56B 12W, S52B

1шт.

6

87693733

RETAINER

Wedge, Splice 56B 12W, S52B

1шт.

6

87352747

CAP

Wedge, Splice 56B 12W, S52B

1шт.

6

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Terminal, Splice 56B 12W, S52B

6шт.

7

87695723

ELEC CONNECTOR,Male , 3 Pole

Foam Volume, C113M

1шт.

7

87695625

WIRE CONNECTOR,Locking, Green

Foam Volume, C113M

1шт.

7

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Terminal, Foam Volume, C113M

3шт.

8

BN310610

ELEC CONNECTOR,Female, 10 Pin

Foam Marker, On/ Off, C114F

1шт.

8

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Foam Marker, On/ Off, C114F

3шт.

9

BN310610

ELEC CONNECTOR,Female, 10 Pin

Fence Row, LH/ RH, C116F

1шт.

9

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Fence Row, LH/ RH, C116F

6шт.

10

87694717

ELEC CONNECTOR

Splice Pack, 3 x 4 Way, S182F

1шт.

10

84153405

RETAINER

Splice Pack, 3 x 4 Way, S182F

1шт.

10

87695206

ELEC CONNECTOR

Splice Pack, 3 x 4 Way, S182F

1шт.

10

388688A1

CONNECTOR, ELEC

Connector Terminal. Splice Pack, 3 x 4 Way, S182F

10шт.

11

87695723

ELEC CONNECTOR,Male , 3 Pole

TPS Interface, C147M

1шт.

11

87695625

WIRE CONNECTOR,Locking, Green

TPS Interface, C147M

1шт.

11

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

TPS Interface, C147M

3шт.

12

BN310610

ELEC CONNECTOR,Female, 10 Pin

Sparge, Increase/ Decrease, C120F

1шт.

12

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Sparge, Increase/ Decrease, C120F

5шт.

13

BN310610

ELEC CONNECTOR,Female, 10 Pin

Master Power, C121F

1шт.

13

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Master Power, C121F

5шт.

14

BN310610

ELEC CONNECTOR,Female, 10 Pin

Park Brake, C122F

1шт.

14

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Park Brake, C122F

7шт.

15

87695723

ELEC CONNECTOR,Male , 3 Pole

Axle In/ Out, C123M

1шт.

15

87695625

WIRE CONNECTOR,Locking, Green

Axle In/ Out, C123M

1шт.

15

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Axle In/ Out, C123M

3шт.

16

87695592

CONTACT HOUSING,Female, 12 Pole

Control Handle, C101F

1шт.

16

87695651

LOCKING TAB,Wedge Lock

Control Handle, C101F

1шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Control Handle, C101F

9шт.

17

87694112

ELEC CONNECTOR,Female, 6 Pole

Control Handle Power, C100F

1шт.

17

87694150

LOCKING TAB,Wedge Lock

Control Handle Power, C100F

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Control Handle Power, C100F

5шт.

18

87707115

CONTACT HOUSING,Female, 70 Pole

Cab Harness Interface, Behind Seat, C128F

1шт.

18

87271606

BOOT

Cab Harness Interface, Behind Seat, C128F

1шт.

18

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cab Harness Interface, Behind Seat, C128F

51шт.

18

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Terminal, Cab Harness Interface, Behind Seat, C128F

5шт.

19

87692858

ELEC CONNECTOR,Male

Reverse, C146M

1шт.

19

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Terminal, Reverse, C146M

2шт.

20

87352746

ELEC CONNECTOR

Splice 056A 12W, S52A

1шт.

20

87693733

RETAINER

Wedge, Splice 056A 12W, S52A

1шт.

20

87352747

CAP

Wedge, Splice 056A 12W, S52A

1шт.

20

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Terminal, Splice 056A 12W, S52A

12шт.

21

87696551

CONTACT HOUSING,Female, 3 Pole

Neutral, C145F

1шт.

21

87705586

WEDGE

Neutral, C145F

1шт.

21

225039C1

TERMINAL

Terminal, Neutral, C145F

2шт.

22

87644909

WIRE CONNECTOR,Female, 3 Pins

Hydrostatic Control Lever, C144F

1шт.

22

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Hydrostatic Control Lever, C144F

3шт.

23

87694717

ELEC CONNECTOR

Splice Pack 3 x 4 Way, S154F

1шт.

23

84153405

RETAINER

Splice Pack 3 x 4 Way, S154F

1шт.

23

87695206

ELEC CONNECTOR

Splice Pack 3 x 4 Way, S154F

1шт.

23

388688A1

CONNECTOR, ELEC

Connector Terminal, Splice Pack 3 x 4 Way, S154F

10шт.

24

BN310610

ELEC CONNECTOR,Female, 10 Pin

RH Boom Tip, C119F

1шт.

24

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, RH Boom Tip, C119F

3шт.

25

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Level, C118F

1шт.

25

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Boom Level, C118F

3шт.

26

BN310610

ELEC CONNECTOR,Female, 10 Pin

LH Boom Tip, C119F

1шт.

26

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, LH Boom Tip, C119F

3шт.

27

87695724

ELEC CONNECTOR,Male, 12 Pole

One Touch Fold, C155M

1шт.

27

87698541

LOCKING TAB,Wedge Lock, 12-Pin

One Touch Fold, C155M

1шт.

27

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

One Touch Fold, C155M

9шт.

28

BN310610

ELEC CONNECTOR,Female, 10 Pin

Section 7, C112F

1шт.

28

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Section 7, C112F

3шт.

29

BN310610

ELEC CONNECTOR,Female, 10 Pin

Section 6, C111F

1шт.

29

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Section 6, C111F

3шт.

30

BN310610

ELEC CONNECTOR,Female, 10 Pin

Section 5, C110F

1шт.

30

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Section 5, C110F

3шт.

31

BN310610

ELEC CONNECTOR,Female, 10 Pin

Section 4, C109F

1шт.

31

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Section 4, C109F

3шт.

32

BN310610

ELEC CONNECTOR,Female, 10 Pin

Section 3, C108F

1шт.

32

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Section 3, C108F

3шт.

33

BN310610

ELEC CONNECTOR,Female, 10 Pin

Section 2, C107F

1шт.

33

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Section 2, C107F

3шт.

34

BN310610

ELEC CONNECTOR,Female, 10 Pin

Section 1, C106F

1шт.

34

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Section 1, C106F

3шт.
