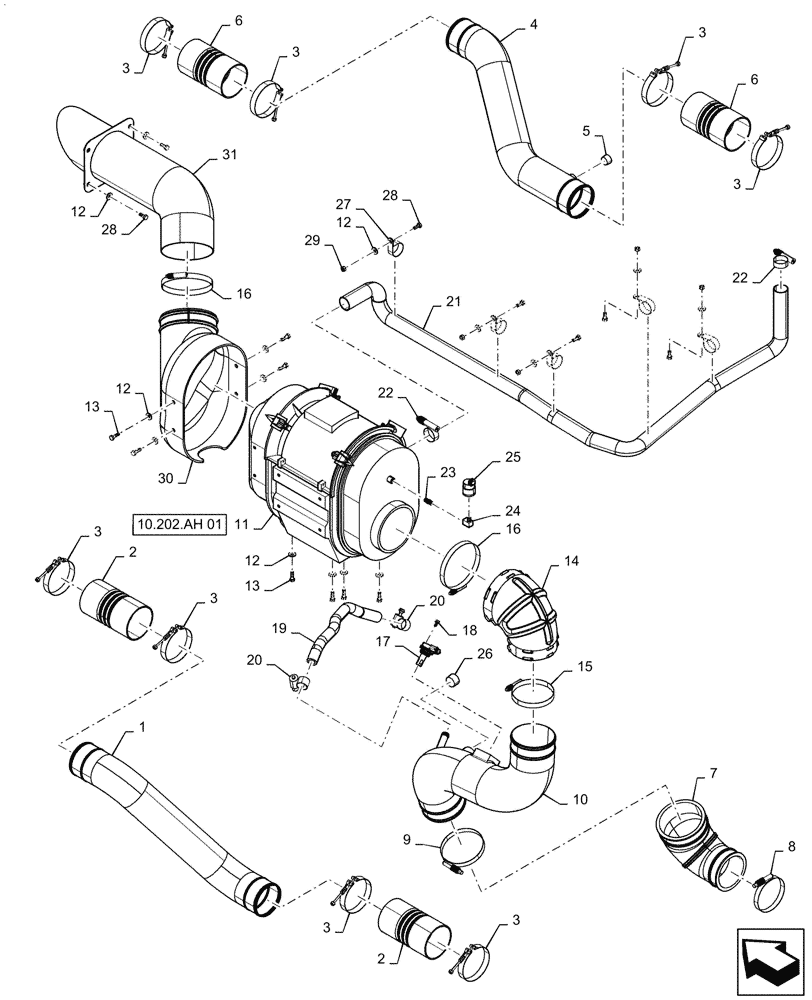

Запчасти Case IH PATRIOT 4440 (10.202.AK[02]) - AIR INTAKE ASSY, ASN YGT044000 (10) - ENGINE

1

47939646

TUBE

Turbo to CAC

1шт.

2

251400A1

BELLOWS

CAC

2шт.

3

349360A1

CLAMP

Spring Hose

8шт.

4

47939648

TUBE

CAC, Cool

1шт.

5

217-441

PLUG,Hex Soc, 3/4" - 14 NPTF

1шт.

6

87306140

BELLOWS

CAC

2шт.

7

47562716

90 ELBOW

Turbo Hose Inlet

1шт.

8

L124635

HOSE CLAMP

Constant Torque

1шт.

9

L124802

COLLAR CLAMP

Constant Torque

1шт.

10

47612578

AIR INTAKE TUBE

1шт.

11

47403616

FILTER ASSY

Engine Air

1шт.

12

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

17шт.

13

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

14

87418236

ELBOW

6" x 5", 90 Degrees

1шт.

15

87485010

CLAMP,4.75" - 5.62", Worm Gear

1шт.

16

87485016

CLAMP,5.75" - 6.62", Worm Gear

2шт.

17

87482355

SENSOR

Air Intake

1шт.

18

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

19

47706596

HOSE

CCV

1шт.

20

87487835

CLAMP,0.69" - 1.25"

2шт.

21

BN323704

HOSE

Aspirator, 12' Bulk Roll

1шт.

22

87485014

CLAMP,1.25" - 2.12", Worm Gear

2шт.

23

D36264

FITTING

Adapter Air Cleaner

1шт.

24

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

25

279492A1

RESTRICTION SWITCH

Air

1шт.

26

86625135

PLUG,1" - 11-1/2 NPT

1шт.

27

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

5шт.

28

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

29

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

30

84553455

DUCT

Air Cleaner

1шт.

31

47445984

AIR INTAKE TUBE

1шт.
