(55.408.AG[01]) - AUDIBLE ALARM AND HORN

Запчасти Case IH PATRIOT 4440 (55.408.AG[01]) - AUDIBLE ALARM AND HORN (55) - ELECTRICAL SYSTEMS

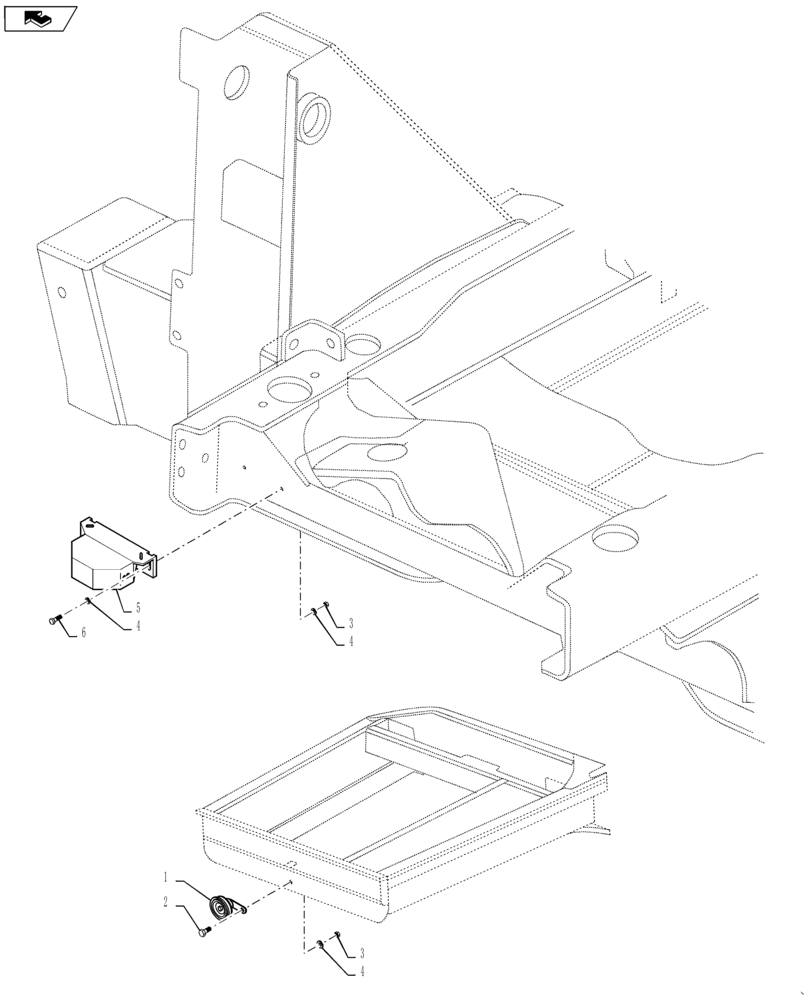

Схема запчастей Case IH PATRIOT 4440 - (55.408.AG[01]) - AUDIBLE ALARM AND HORN (55) - ELECTRICAL SYSTEMS
5
4
3
3
6
4
1
4
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87714969

HORN

With Breather

1шт.

2

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

3шт.

4

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

5шт.

5

325258A1

ALARM

Backup Alarm

1шт.

6

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.
