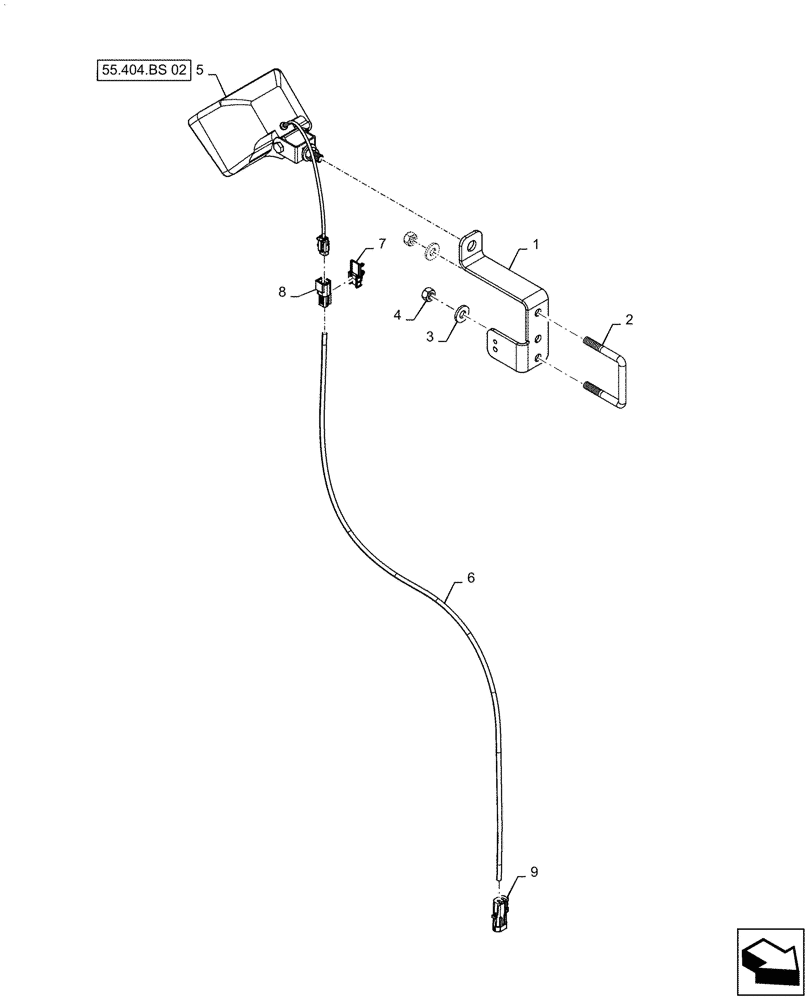

Запчасти Case IH PATRIOT 4440 (55.404.BS[01.5]) - BOOM, CENTER SECTION LIGHT ASN YGT044293 (55) - ELECTRICAL SYSTEMS

1

48077438

MOUNT

Boom Light, Rear

1шт.

2

87586548

U-BOLT

Square, M10 x 64mm ID x 64

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

5

87658615

LAMP

35W Flood, Assembly, 3" x 5"

1шт.

See Fig 55.404.BS 02 For Service

1шт.

6

87658598

WIRE HARNESS

Center Section Light, Incl 8, 9

1шт.

7

84322203

CLIP

Mounting

1шт.

8

222136A1

ELEC CONNECTOR,Male, 2 Pin

Center Section Light, J001

1шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Center Section Light, J003

1шт.
