(55.404.BM[03]) - REAR TAIL LAMPS, ASN YGT042518

Запчасти Case IH PATRIOT 4440 (55.404.BM[03]) - REAR TAIL LAMPS, ASN YGT042518 (55) - ELECTRICAL SYSTEMS

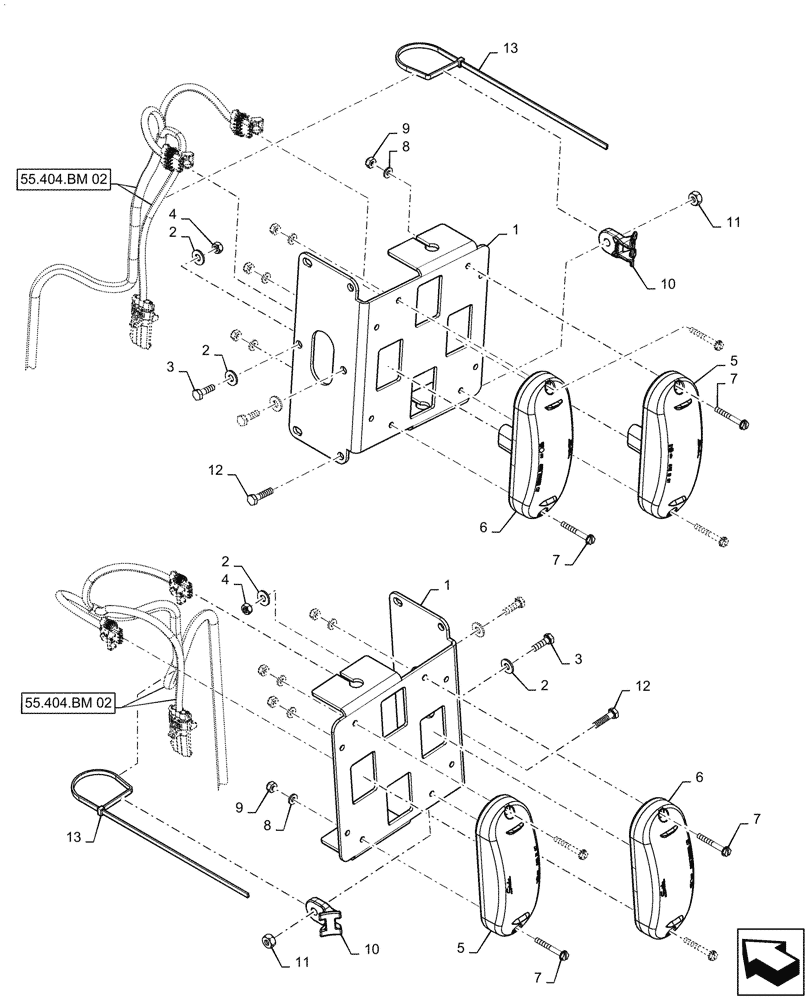

Схема запчастей Case IH PATRIOT 4440 - (55.404.BM[03]) - REAR TAIL LAMPS, ASN YGT042518 (55) - ELECTRICAL SYSTEMS
55.404.bm 02
2
6
3
13
12
2
7
8
11
9
4
3
4
1
8
2
2
9
10
5
6
7
1
7
5
10
12
11
13
7
55.404.bm 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47688746

BRACKET

Tail Light, LED

2шт.

2

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

3

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

M6, DOR

8шт.

6

87694405

LIGHT ASSY.

Turn, LED Amber

2шт.

7

87694404

LIGHT ASSY.

Brake, LED Red

2шт.

8

BN316803

SCREW,#10 - 24 x 1 1/2", SST

8шт.

9

BN310265

WASHER

# 10, SST

8шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

11

86991007

CABLE TIE,509mm L

2шт.

12

84474186

BASE

Tie

2шт.

13

BN570007

STRAP

2шт.
