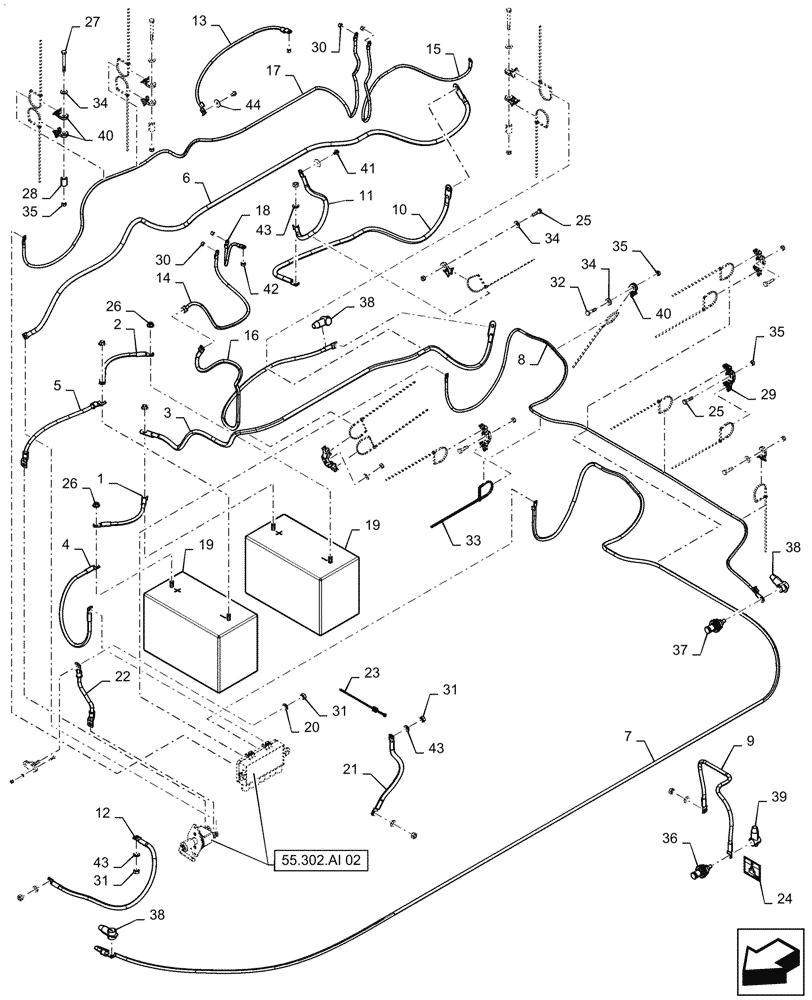

Запчасти Case IH PATRIOT 4440 (55.302.AI[03]) - BATTERY - CABLES, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

47883714

POS BATTERY CABLE

M10 Eyelet x M10 Eyelet x 6 1/2" Long, Battery to Battery

1шт.

2

47883716

NEG BATTERY CABLE

M10 Eyelet x M10 Eyelet x 6 1/2" Long, Battery to Battery

1шт.

3

47981992

CABLE

Positive, M10 Eyelet x M10 Eyelet x 65 1/2" Long, Battery to Starter

1шт.

4

47365538

POS BATTERY CABLE

0 Ga, M8 Eyelet x M10 Eyelet x 17" Long, Power Distribution to Battery

1шт.

5

84363187

NEG BATTERY CABLE

M10 Eyelet x M10 Eyelet x 14 1/2" Long, Battery to Battery Disconnect Switch

1шт.

6

47981993

CABLE

Negative, M10 Eyelet x M12 Eyelet x 81 1/2" Long, Starter to Battery Disconnect Switch

1шт.

7

84513447

POS BATTERY CABLE

2 Ga, M5 Eyelet x M10 Eyelet x 17' - 7" Long, Power Distribution to Cab

1шт.

8

47965058

CABLE

Positive, M5 Eyelet x M10 Eyelet x 94 1/2" Long, Power Distribution to External Lug

1шт.

9

84363170

NEG BATTERY CABLE

M10 Eyelet x M10 Eyelet x 25 1/2" Long, Negative Jump Stud to Ground

1шт.

10

47981989

CABLE

Negative, M10 Eyelet x M12 Eyelet x 31 1/2" Long, Starter to Ground

1шт.

11

47981990

CABLE

Negative, M10 Eyelet x M6 Eyelet x 14 1/2" Long, Alternator to Ground

1шт.

12

47975623

CABLE

Negative, M10 Eyelet x M10 Eyelet x 21 1/2" Long, Cab to Ground

1шт.

13

86611287

CABLE,490mm L

Negative, M6 Eyelet x M6 Eyelet x 17 1/2" Alternator to Grid Heater

1шт.

14

48018133

CABLE

Positive, M8 Eyelet x M6 Eyelet x 65 1/2" Long, Battery to Starter

1шт.

15

48018135

CABLE

Positive, M10 Eyelet x M6 Eyelet x 39" Long, Cold Start Relay to Starter

1шт.

16

47473680

POS BATTERY CABLE

2 Ga, M10 Eyelet x M8 Eyelet x 47" Long, Alternator to Starter

1шт.

17

47981991

CABLE

Positive, M5 Eyelet x M6 Eyelet x 21 1/2" Long, Power Distribution to Intermediate Start Relay

1шт.

18

47473822

POS BATTERY CABLE

M8 Eyelet x M6 Eyelet x 11 1/2" Long, Intermediate Start Relay to Grid Heater

1шт.

19

BMF31GSW

WET BATTERY

USA

2шт.

19

CCMF31GSW

WET BATTERY

Canada

2шт.

20

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

84423426

NEG BATTERY CABLE

M10 Eyelet x M10 Eyelet x 12 1/2" Long,

1шт.

22

84363188

NEG BATTERY CABLE

2 Ga, M10 Eyelet x M10 Eyelet x 9 1/2" Long, Junction Block to Battery Disconnect Switch

1шт.

23

47446365

FASTENER

Edge Clip

1шт.

24

47916183

DECAL

External Lug

1шт.

25

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

5шт.

26

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

27

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

28

13606111

SPACER,9mm ID x 18mm OD x 25mm L

3шт.

29

84360209

BASE

Tie

4шт.

30

832-10406

NUT,M6 x 1, Cl 8

5шт.

31

86500689

NUT,M10 x 1.5, Cl 10

7шт.

32

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

33

BN570007

STRAP

14" Zip Tie

17шт.

34

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

7шт.

35

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

36

A187583

STUD

Negative, Jump

1шт.

37

582785C91

TERMINAL CONNECTOR

Positive, Jump Stud

1шт.

38

342119A1

BOOT

Red

3шт.

39

342463A1

BOOT

Black

1шт.

40

84474186

BASE

Tie

9шт.

41

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

42

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

43

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

44

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.
