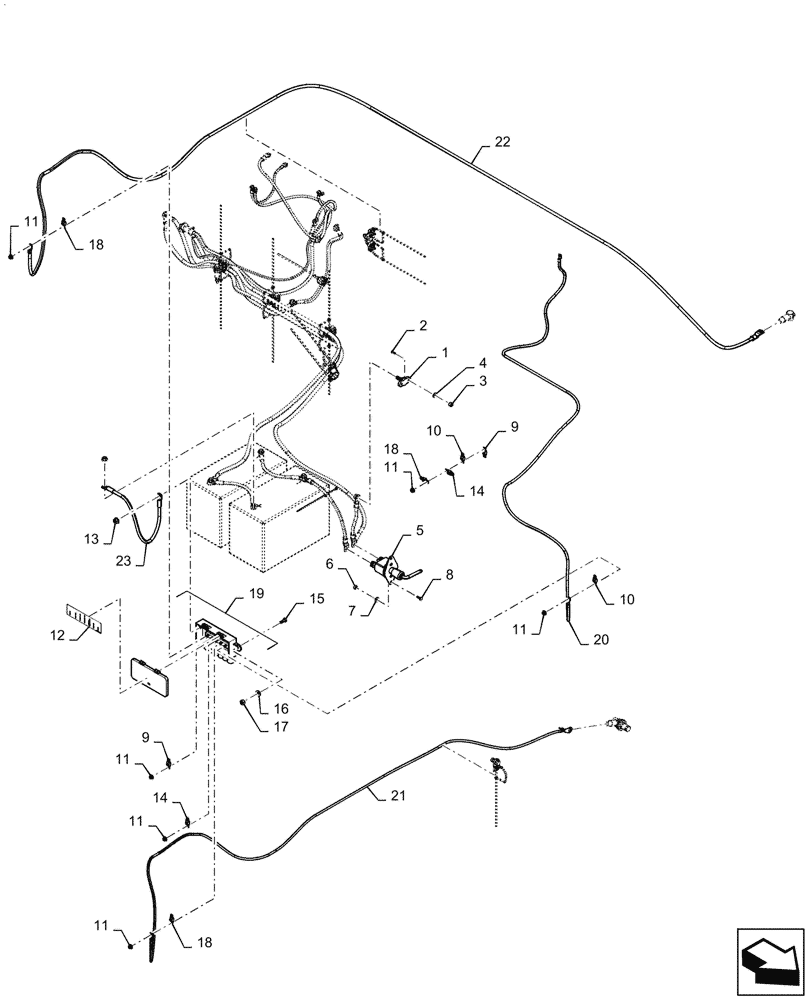

Запчасти Case IH PATRIOT 4440 (55.302.AI[02]) - BATTERY - BOX, FUSE BOX AND DISCONNECT, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

20-1451T1

BLOCK

Junction

1шт.

2

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

2шт.

3

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

4

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 x 10 x 1 MM, DOR

2шт.

5

47493762

BATTERY CUT-OUT

Battery Disconnect

1шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

7

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 MM

2шт.

8

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

9

84078783

FUSE,80A, Midival

80 Amp

2шт.

10

84330274

FUSE,125A

125 Amp

2шт.

11

86507064

FLANGE NUT,M5 x 0.8

11шт.

12

47913767

DECAL

Power Distribution / Fuse

1шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

14

84174070

FUSE,30A, Orange

30 Amp

2шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

18

87548130

FUSE,60A, Midival

60 AMP

3шт.

19

84206083

FUSE BOX

6 Way

1шт.

20

47981991

CABLE

Positive, M5 Eyelet x M6 Eyelet x 84-1/2" Long, Power Distribution to Intermediate Start Relay

1шт.

21

47965058

CABLE

Positive, M5 Eyelet x M10 Eyelet x 94-1/2" Long, Power Distribution to External Lug

1шт.

22

84513447

POS BATTERY CABLE

2 Ga, M5 Eyelet x M10 Eyelet x 17' - 7" Long, Power Distribution to Cab

1шт.

23

47365538

POS BATTERY CABLE

0 Ga, M8 Eyelet x M10 Eyelet x 17" Long, Power Distribution to Battery

1шт.
