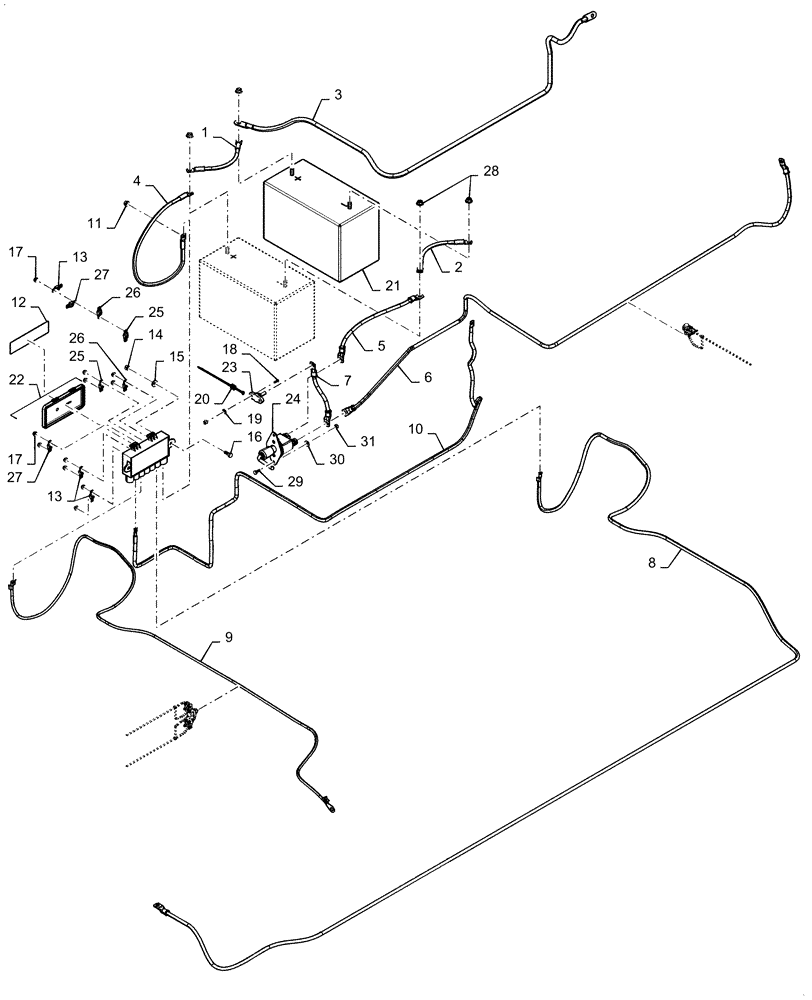

Запчасти Case IH PATRIOT 4440 (55.302.AI[01]) - FUSE BOX AND DISCONNECT, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

1

BN320001

CABLE

Positive, Battery to Battery, 55mm, 15" Long, Serial Range: -YGT042574

1шт.

1

47883714

POS BATTERY CABLE

Red, Battery to Battery, 62mm, M10 Ring x M10 Ring, 6 3/8" Long, Start Serial: YGT042575

1шт.

2

BN320002

NEG BATTERY CABLE

Battery to Battery, 55mm, 15" Long, Serial Range: -YGT042574

1шт.

2

47883716

NEG BATTERY CABLE

Black, Battery to Battery, 62mm, M10 Ring x M10 Ring, 6 3/8" Long, Start Serial: YGT042575

1шт.

3

84538145

POS BATTERY CABLE

Red, Battery to Starter, 62mm, M10 Ring x M10 Ring, 57 5/8" Long, Serial Range: -YGT042574

1шт.

3

47916876

CABLE

Red, Positive, Battery to Starter, 62mm, M10 Ring x M10 Ring, 64 1/2" Long, Start Serial: YGT042575

1шт.

4

47367749

POS BATTERY CABLE

Battery Positive Term, to Fuse, 50mm, M8 Ring x M10 Ring, 26" Long

1шт.

5

84363187

NEG BATTERY CABLE

Negative Battery Term, to Disconnect Switch, 62mm, M10 Ring x M10 Ring, 14 1/2" Long

1шт.

6

84538110

NEG BATTERY CABLE

Disconnect Switch to Starter, 62mm, M10 Ring x M12 Ring, 86" Long

1шт.

7

84363188

NEG BATTERY CABLE

Disconnect Switch to Jump Stud, 32mm, M10 Ring x M10 Ring, 9 3/8" long

1шт.

8

84513447

POS BATTERY CABLE

Red, Power Dist to Cab, 32mm, M5 Midi x M13 Ring, 17' 7" Long

1шт.

9

84363184

POS BATTERY CABLE

Jump Stud to Power Dist, 50mm, M10 Ring x M10 Ring, 94 1/2" Long, Serial Range: -YGT042574

1шт.

9

47915726

CABLE

Positive, Jump Stud to Power Dist, 13mm, M6 Midi x M10 Ring, 94 1/2" Long, Start Serial: YGT042575

1шт.

10

47485841

POS BATTERY CABLE

Power Dist to Start Relay, 13mm, M5 Ring x M6 Ring, 100" Long

1шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

12

47750407

DECAL

Power Distribution, Serial Range: -YGT042574

1шт.

12

47913767

DECAL

Power Distribution, Start Serial: YGT042575

1шт.

13

87548130

FUSE,60A, Midival

1шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

16

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

86507064

FLANGE NUT,M5 x 0.8

13шт.

18

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

2шт.

19

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 X 10 X 1MM CST, DOR

2шт.

20

47446365

FASTENER

Edge Clip

1шт.

21

BMF31GSW

WET BATTERY

12V, 950 CCA, Group 31, Wet

2шт.

21

CCMF31GSW

WET BATTERY

12V, 950 CCA, Group 31, Canada

2шт.

22

84206083

FUSE BOX

6 Way

1шт.

23

20-1451T1

BLOCK

Junction

1шт.

24

47493762

BATTERY CUT-OUT

Battery Disconnect

1шт.

25

84078783

FUSE,80A, Midival

80A

2шт.

26

84330274

FUSE,125A

125A

2шт.

27

84174070

FUSE,30A, Orange

30A

3шт.

28

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

29

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

30

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

31

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.
