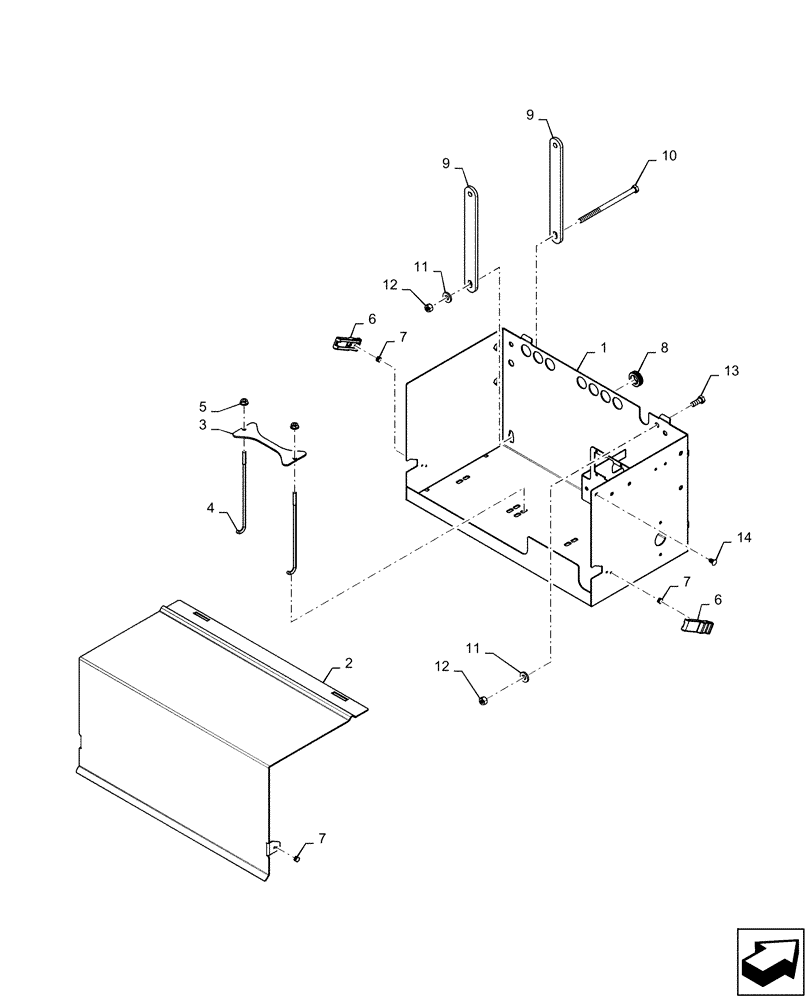

Запчасти Case IH PATRIOT 4440 (55.302.AH[01]) - BATTERY - BOX, ASSY (55) - ELECTRICAL SYSTEMS

1

47610809

BATTERY BOX

Battery

1шт.

2

47609347

COVER

Battery Box

1шт.

3

BN320331

BRACKET

Mount

2шт.

4

87691876

ROD

Battery, Hold Down

4шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

6

BN307683

LATCH

Soft, W/ Conceal Keep

2шт.

7

87017053

RIVET,Pop, .146" x .425"

8шт.

8

BN2290753

GROMMET

22.23mm Hole

8шт.

9

84344603

MOUNT

Battery Box

2шт.

10

87341826

BOLT,Hex, M12 x 200mm, Cl 8.8

M12 x 200mm, CL 8.8

2шт.

11

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4mm

4шт.

12

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

13

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

14

87529297

CLIP

Christmas Tree, 8.6mm Hole

2шт.
