Запчасти Case IH PATRIOT 4440 (55.101.AC[15]) - BOOM WIRE HARNESS, 120 LAYOUT, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

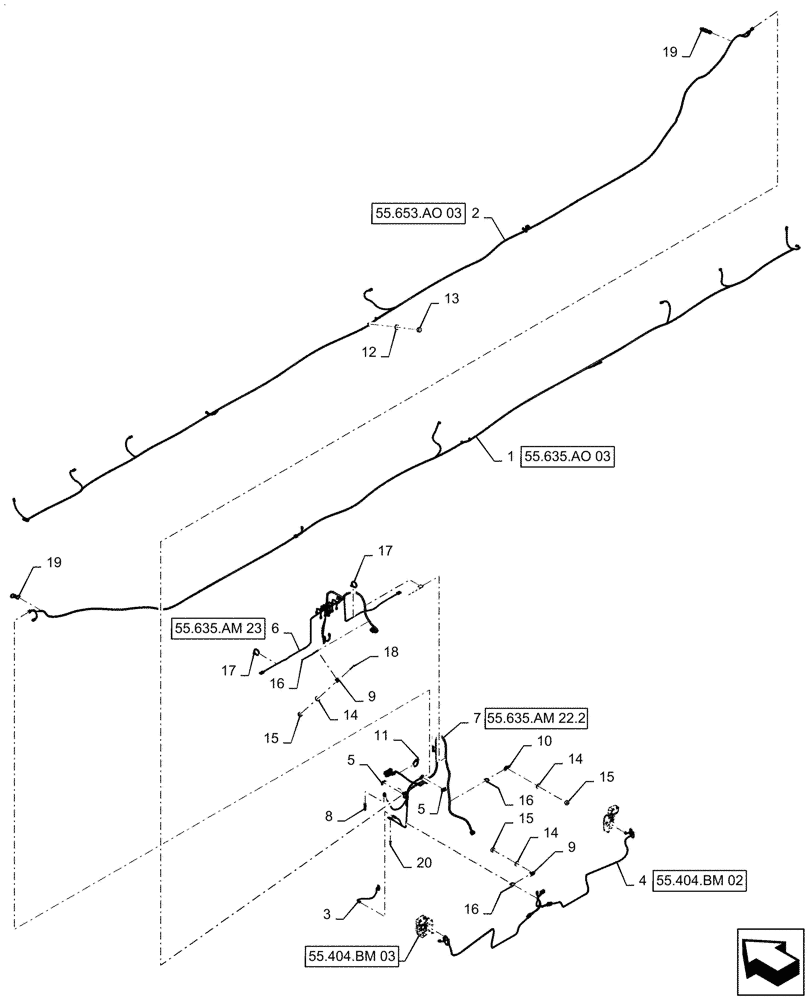

Схема запчастей Case IH PATRIOT 4440 - (55.101.AC[15]) - BOOM WIRE HARNESS, 120 LAYOUT, ASN YGT044000 (55) - ELECTRICAL SYSTEMS
55.404.bm 02
18
10
14
15
5
4
17
1
7
15
6
3
2
14
15
19
16
9
8
5
12
13
14
11
16
19
17
16
20
9
55.404.bm 03
55.635.am 23
55.635.am 22.2
55.653.ao 03
55.635.ao 03

Артикул

Название

Примечание

Количество

1

87479157

HARNESS

LH, 7 Section, 120'

1шт.

2

87479158

HARNESS

RH, 7 Section, 120'

1шт.

3

86986400

SWITCH

Pressure, PLMF

1шт.

4

47750805

WIRE HARNESS

Rear Light Extension

1шт.

5

84322203

CLIP

Wire Connector Mounting

2шт.

6

84281621

HARNESS

Hydraulic Control Center Section

1шт.

7

47984271

WIRE HARNESS

Product Control Center Section

1шт.

8

47995115

SENSOR

Pressure

1шт.

9

84474186

BASE

Single Tie

23шт.

10

84360209

BASE

Double Tie

2шт.

11

84551467

CABLE TIE,381mm L

With Fir Tree

1шт.

12

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

14

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

23шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

23шт.

16

BN570007

STRAP

14" Zip Tie

79шт.

17

86991007

CABLE TIE,509mm L

5шт.

18

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

47853521

CABLE TIE

Dual Dividing

2шт.

20

86017581

FASTENER

Clamping Clip

2шт.

Выбрано товаров: 20
