(55.101.AC[04]) - BOOM WIRE HARNESS, 90, 5 SECTION, LAYOUT, BSN YGT044001

Запчасти Case IH PATRIOT 4440 (55.101.AC[04]) - BOOM WIRE HARNESS, 90, 5 SECTION, LAYOUT, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

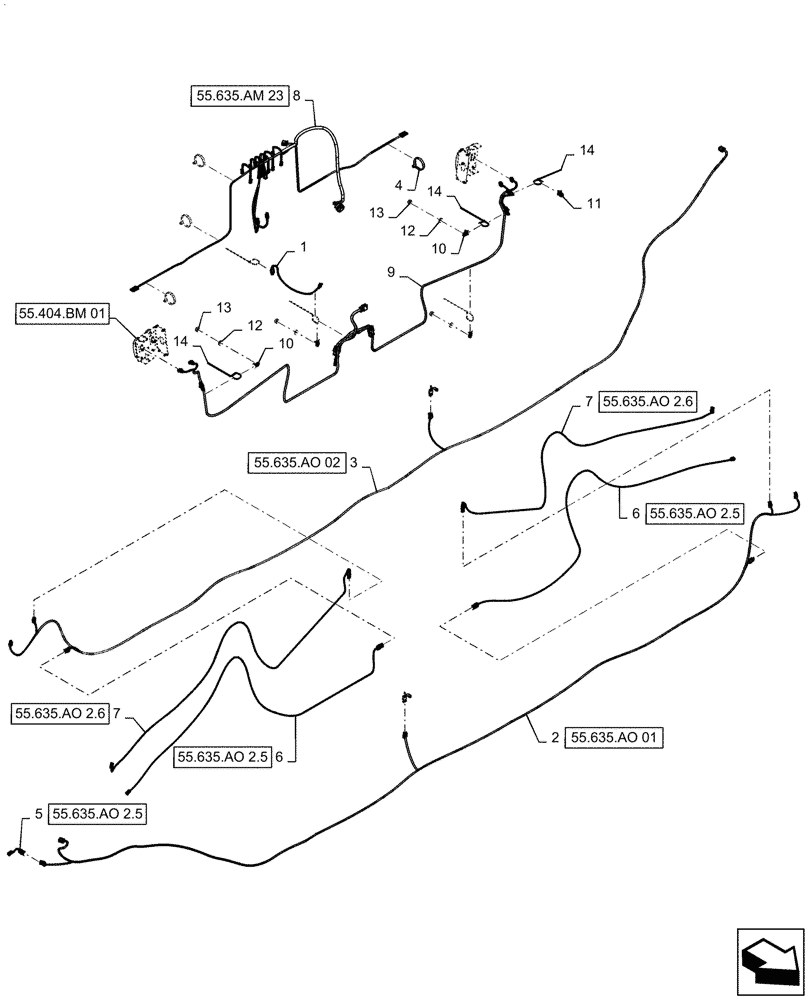

Схема запчастей Case IH PATRIOT 4440 - (55.101.AC[04]) - BOOM WIRE HARNESS, 90, 5 SECTION, LAYOUT, BSN YGT044001 (55) - ELECTRICAL SYSTEMS
55.635.ao 2.6
10
5
1
10
8
7
3
14
2
13
6
11
13
4
9
14
6
7
12
12
14
55.635.ao 02
55.635.ao 2.5
55.635.ao 2.5
55.635.ao 2.5
55.635.am 23
55.404.bm 01
55.635.ao 01
55.635.ao 2.6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986400

SWITCH

Pressure, PLMF

1шт.

2

343957A1

HARNESS

LH, 5 Section, 90'

1шт.

3

343958A1

HARNESS

RH, 5 Section, 90'

1шт.

4

86991007

CABLE TIE,509mm L

5шт.

5

84230826

HARNESS

3 Pin Flat To 3 Pin Triangular, 3" Long

3шт.

6

84230827

HARNESS

3 Pin Flat To 3 Pin Triangular, 110" Long

2шт.

7

84230828

HARNESS

Extension, 2 Connector, 75" Long

2шт.

8

84281621

HARNESS

Hydraulic Control Center Section

1шт.

9

47750805

WIRE HARNESS

Rear Light Extension

1шт.

10

84407295

BASE

Tie

19шт.

11

84474186

BASE

Single Tie

2шт.

12

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

21шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

21шт.

14

BN570007

STRAP

14" Zip Tie

50шт.

Выбрано товаров: 14
