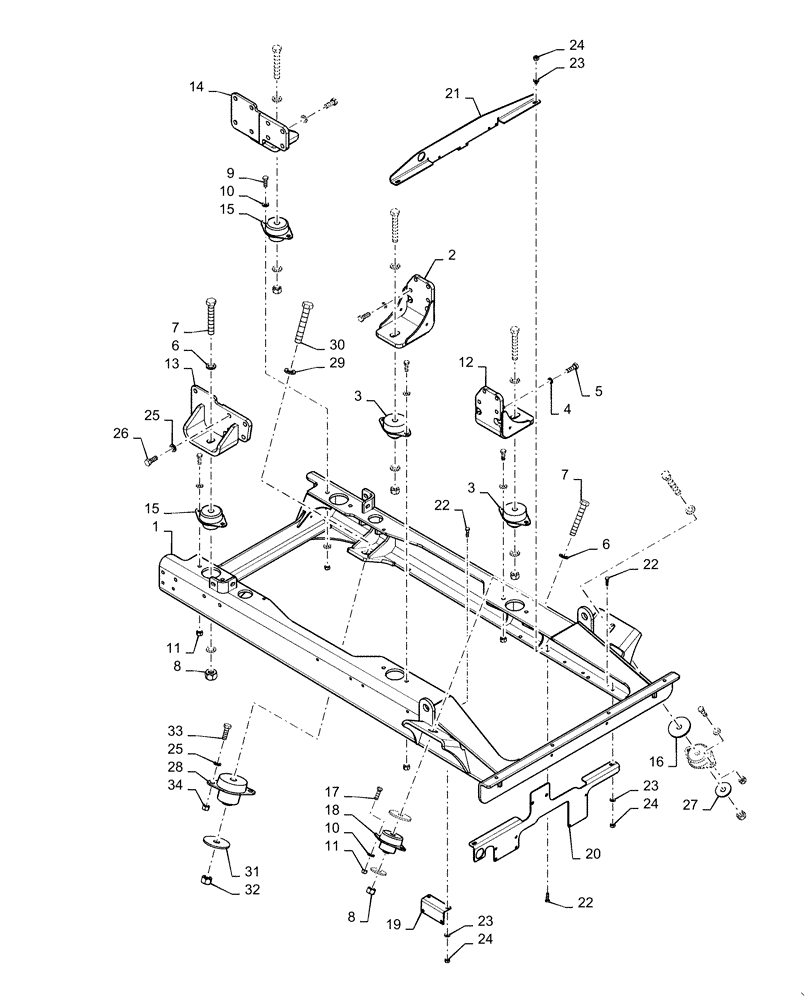

Запчасти Case IH PATRIOT 4440 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

1

84539178

MOUNTING PLATE

Engine Mount Subframe, Serial Range: -YGT042574

1шт.

1

47931373

MOUNT

Engine Mount Subframe, Serial Range: YGT042575-YGT044000

1шт.

1

47939059

MOUNT

, Start Serial: YGT044001

1шт.

2

84225209

ENGINE MOUNT

Front, RH

1шт.

3

BN304252

MOUNTING PARTS

Engine Isolator Mount

2шт.

4

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

8шт.

5

87672180

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

6

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22mm x 37mm x 4mm, HDN, DOR

10шт.

7

87341998

BOLT,Hex, M20 x 130mm, Cl 10.9

M20 x 130mm, CL10.9, DOR

6шт.

8

87024336

NUT,M20 x 2.5, Cl 10

6шт.

9

87342014

BOLT,M12 x 1.75 x 35mm, Class 10.9

M12 - 1.75 x 35mm, 10.9, DOR

8шт.

10

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5mm x 28mm x 4mm, HTS, DOR

14шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

12шт.

12

84526581

ENGINE MOUNT

Front, LH

1шт.

13

84296603

ENGINE MOUNT

Rear, RH

1шт.

14

84296607

ENGINE MOUNT

Rear, LH

1шт.

15

BN324263

MOUNTING PLATE

Center, Bonded

2шт.

16

BN322925

WASHER

M20, Rebound

2шт.

17

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

4шт.

18

BN322889

MOUNTING PLATE

Center, Bonded

2шт.

19

87266513

BRACKET, SUPPORTING

Return Manifold Mount

1шт.

20

84264254

MOUNT

Valve

1шт.

21

84264260

MOUNT

Valve

1шт.

22

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

6шт.

23

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

24

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

25

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

26

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

8шт.

27

84528936

WASHER

Rebound

2шт.

28

84536036

MOUNTING PLATE

Engine, Center Bonded

2шт.

29

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26mm x 44mm x 5mm

2шт.

30

86980486

BOLT,Hex, M24 x 150mm, Cl 8.8

M24 x150mm, Class8.8

2шт.

31

84535888

WASHER

Rebound, Finish

2шт.

32

86980520

NUT,Prev Torque, Hex, M24, 3mm Pitch, Cl 8

2шт.

33

87341745

BOLT,Hex, M16 x 50mm, Cl 8.8

M16 x 50mm, Class 8.8

4шт.

34

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.
