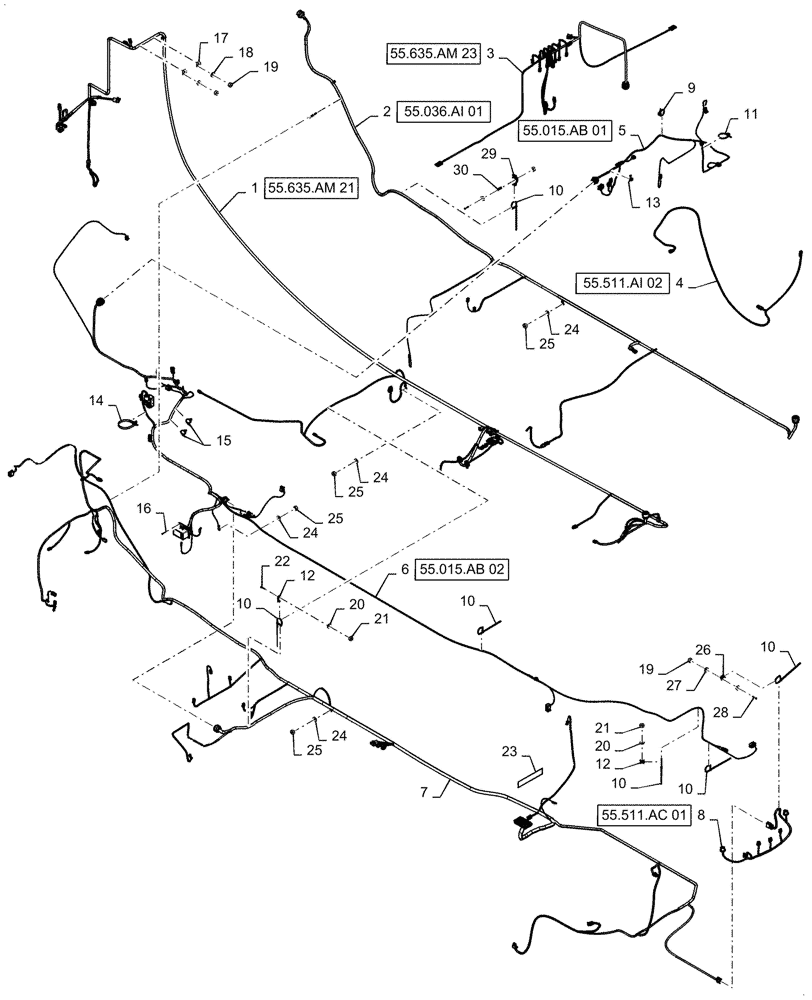

Запчасти Case IH PATRIOT 4440 (55.101.AC[01]) - FRAME WIRE HARNESS LAYOUT, BSN YGT042519 (55) - ELECTRICAL SYSTEMS

1

84397004

HARNESS

Product Control

1шт.

2

84281620

HARNESS

Hydraulic Control, Frame

2шт.

3

84281621

HARNESS

Hydraulic Control, Center Section

1шт.

4

84281649

HARNESS

Rear Lights

1шт.

5

47673379

WIRE HARNESS

Exhaust

1шт.

6

47767925

WIRE HARNESS

Engine, T4B

1шт.

7

47740219

WIRE HARNESS

Main Frame

1шт.

8

47674105

WIRE HARNESS

Hood Lights

1шт.

9

47395250

CABLE TIE,200mm L

7шт.

10

BN570007

STRAP

14" Zip Tie

35шт.

11

47395251

MOUNT

Edge Clip

2шт.

12

84407295

BASE

M8 Stud

6шт.

13

47446005

FASTENER

Edge Clip

2шт.

14

84266055

PLASTIC

Tie with Fir Tree

1шт.

15

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

3шт.

16

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

4шт.

17

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

18

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

5шт.

19

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

6шт.

20

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

5шт.

21

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

22

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

23

84318554

DECAL

Layout

1шт.

24

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

25

86500689

NUT,M10 x 1.5, Cl 10

4шт.

26

84360210

BASE

Tie

1шт.

27

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

28

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

29

84360209

BASE

Tie

1шт.

30

47836453

BUSHING

Bronze

1шт.
