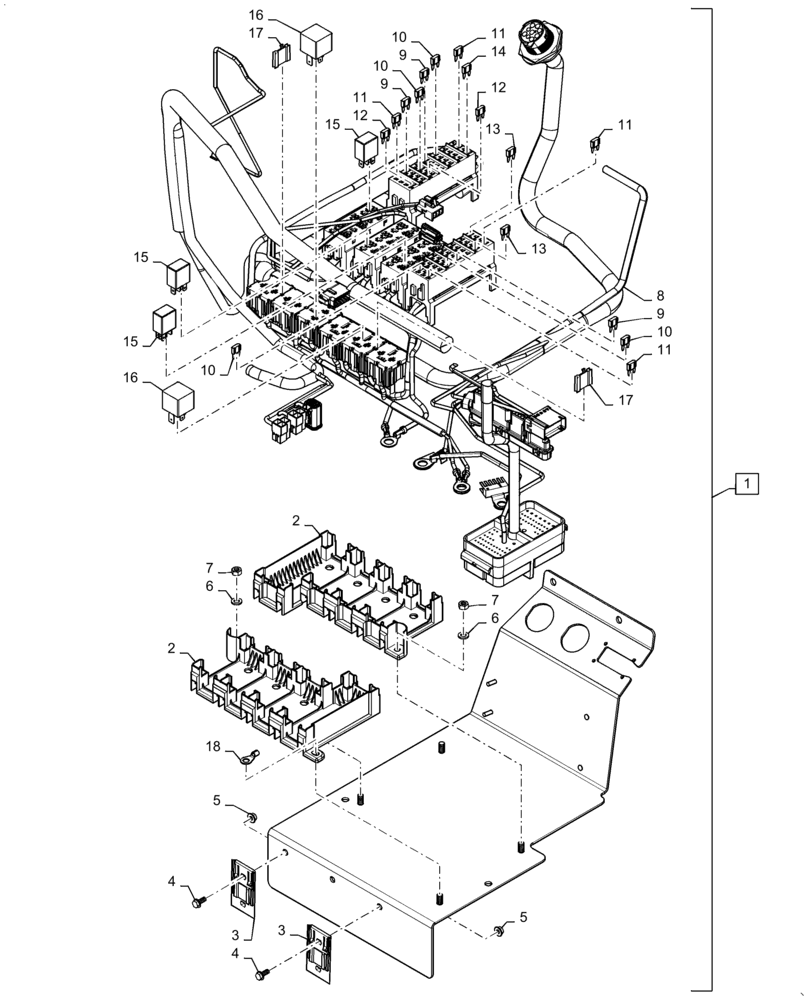

Запчасти Case IH PATRIOT 4440 (55.100.DP[05]) - MODULE, ELECTRICAL, CAB (55) - ELECTRICAL SYSTEMS

1

84561107

MODULE

Bracket, Electrical, Incl 2 - 18

1шт.

2

191135A1

BASE

Packard

2шт.

3

367147A1

BRACKET

Mounting

3шт.

4

86639263

BOLT,Hex, M5, Cl 8

3шт.

5

80043416

NUT,M5

Hex Flange, SER M5 SPL, ZNM

3шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

8

84551073

WIRE HARNESS

Main Cab

1шт.

9

121413A1

FUSE,15A, Mini, Blue

16шт.

10

121410A1

FUSE,5A, Mini, Tan

6шт.

11

121412A1

FUSE,10A, Mini, Red

15шт.

12

121414A1

FUSE,20A, Mini, Yellow

6шт.

13

121416A1

FUSE,30A, Mini, Green

6шт.

14

121415A1

FUSE,25A, Mini, Clear

2шт.

15

87414866

RELAY,12V, 20A

16шт.

16

368459A1

RELAY,12V, 70A

6шт.

17

367146A1

WEDGE

Lock Red

5шт.

18

84401280

TERMINAL,Straight, 1/4"

Eyelet, 1/4"

1шт.
