(55.100.DP[04.1]) - LH COMPARTMENT HARNESS ASSY, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (55.100.DP[04.1]) - LH COMPARTMENT HARNESS ASSY, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

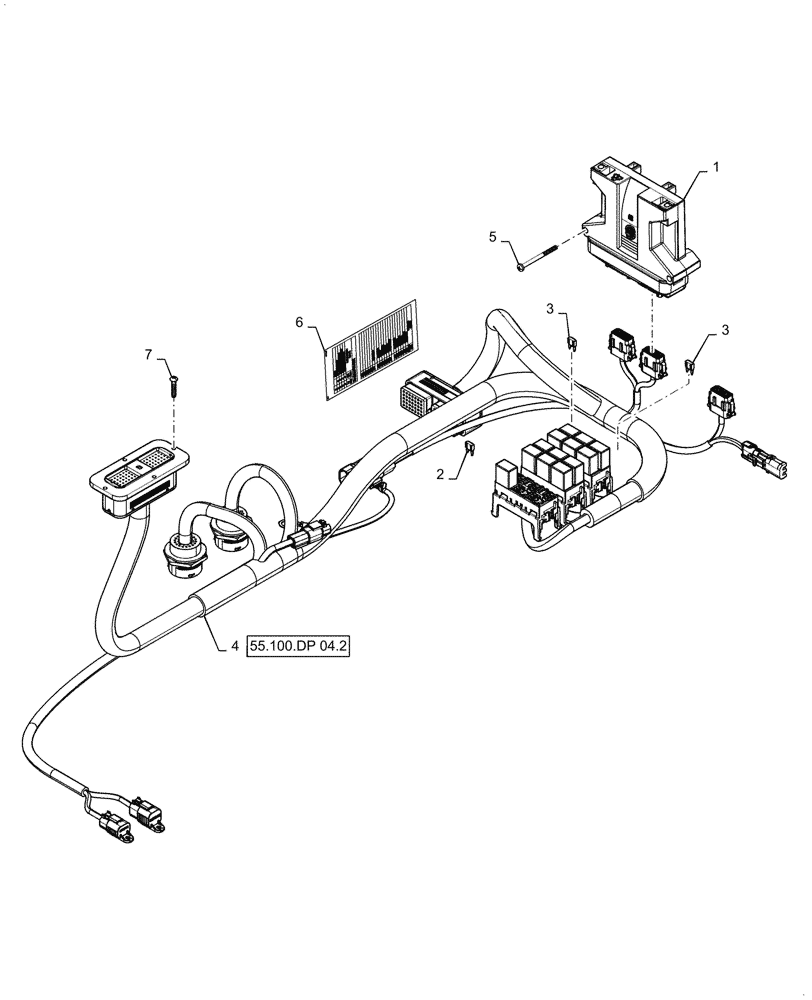

Схема запчастей Case IH PATRIOT 4440 - (55.100.DP[04.1]) - LH COMPARTMENT HARNESS ASSY, ASN YGT044000 (55) - ELECTRICAL SYSTEMS
55.100.dp 04.2
7
6
4
1
2
3
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48058176

Plus1

CONTROLLER

1шт.

2

121412A1

FUSE,10A, Mini, Red

1шт.

3

121413A1

FUSE,15A, Mini, Blue

2шт.

4

48039458

WIRE HARNESS

LH Compartment

1шт.

5

86529074

SCREW,Phil Pan Hd, M5 x 60mm, Cl 4.8

2шт.

6

47443863

DECAL

Fuses / Relays

1шт.

7

87016541

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1"

3шт.

Выбрано товаров: 7
