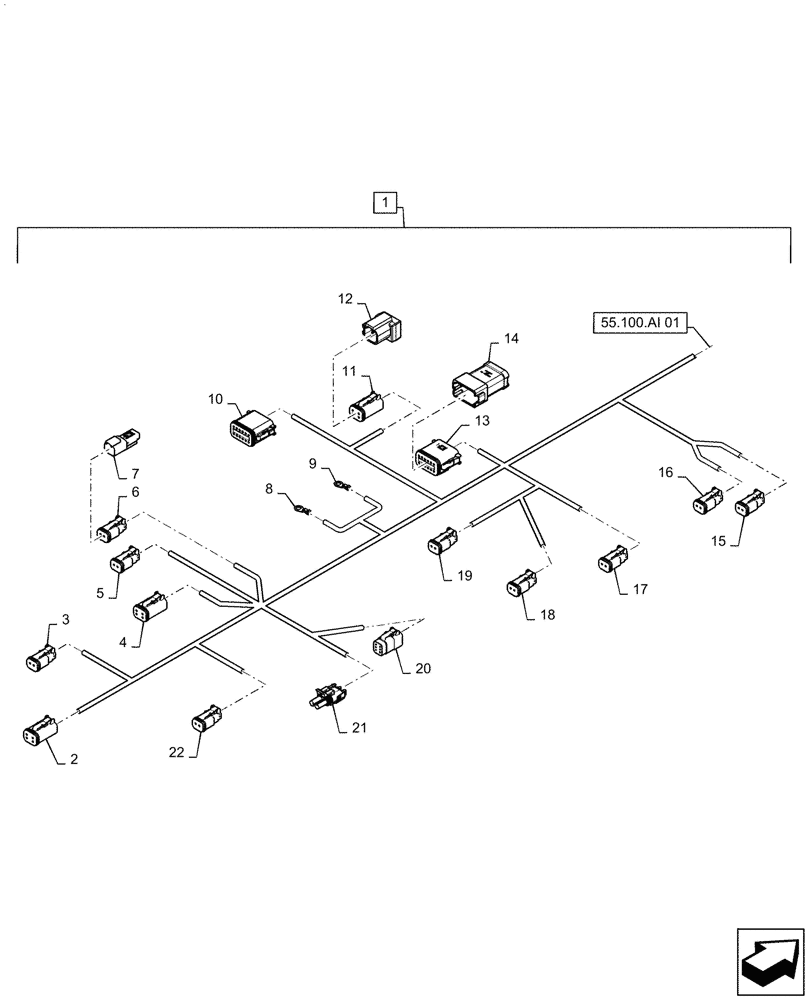

Запчасти Case IH PATRIOT 4440 (55.100.AI[02]) - MAIN FRAME WIRE HARNESS, PART II (55) - ELECTRICAL SYSTEMS

1

47740219

WIRE HARNESS

Frame Harness, Incl 2 - 22

1шт.

2

87694153

CONTACT HOUSING,Female, 4 Cavities

RH Hydrostat Control, X-641F5

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Hydrostat Control, X-641F5

4шт.

2

84074640

LOCKING TAB,Wedge Lock

Wedge, RH Hydrostat Control, X-641F5

1шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Hydrostat Control Override, X-645F5

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Hydrostat Control Override, X-645F5

2шт.

3

87695649

ELEC CONNECTOR,Locking, Green

Wedge, RH Hydrostat Control Override, X-645F5

1шт.

4

87694153

CONTACT HOUSING,Female, 4 Cavities

LH Hydrostat Control, X-639F5

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Hydrostat Control, X-639F5

4шт.

4

87694146

ELEC CONNECTOR,Locking, Green

Wedge, LH Hydrostat Control, X-639F5

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Hydrostat Control Override, X-645F5

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Hydrostat Control Override, X-645F5

2шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

LH Hydrostat Control Override, X-645F5

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Charge PSI, X-638F5

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Charge PSI, X-638F5

2шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Charge PSI, X-638F5

1шт.

7

87695584

CONTACT HOUSING,Male, 2 Cavities

Charge PSI Shorting Cap, X-638M5

1шт.

7

87695623

ELEC. TERMINAL PIN

Male, Nickel, X-638M5

2шт.

7

86500166

ELEC CONNECTOR

Wedge Lock, Charge PSI Shoring Cap, X-638M5

1шт.

8

84149205

TERMINAL

Backup Alarm, X-608F5

1шт.

9

84149205

TERMINAL

Backup Alarm, X-609F5

1шт.

10

87695592

CONTACT HOUSING,Female, 12 Pole

Tail Light Harness Interface, X-606F5

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Tail Light Harness Interface, X-606F5

7шт.

10

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Tail Light Harness Interface, X-606F5

3шт.

10

84068583

PLUG,12 - 16 Ga, White

Tail Light Harness Interface, X-606F5

2шт.

10

87695651

LOCKING TAB,Wedge Lock

Wedge Lock, Tail Light Harness Interface, X-606F5

1шт.

11

87694153

CONTACT HOUSING,Female, 4 Cavities

Brake Light and Worklight, X-604F5

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Brake Light and Worklight, X-604F5

3шт.

11

84068583

PLUG,12 - 16 Ga, White

Brake Light and Worklight, X-604F5

1шт.

11

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, Brake Light and Worklight, X-604F5

1шт.

12

87270520

DIODE

Brake Light and Worklight, X-604M5

1шт.

13

87696075

ELEC CONNECTOR

12 Way, Female, Splice Pack, SP-47FB5

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, SP-47FB5

10шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, SP-47FB5

2шт.

13

87695651

LOCKING TAB,Wedge Lock

Wedge Lock, Splice Pack, SP-47FB5

1шт.

14

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-47MB5

1шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

Axle Out, X-613F5

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Axle Out, X-613F5

2шт.

15

84074638

LOCKING TAB,Locking Wedge, Green

Axle Out, X-613F5

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Axle In, X-614F5

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Axle In, X-614F5

2шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

Axle In, X-614F5

1шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Motor Control, X-647F5

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Motor Control, X-647F5

2шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

Motor Control, X-647F5

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Reverse Limiter, X-632F5

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Reverse Limiter, X-632F5

2шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

Reverse Limiter, X-632F5

1шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Park Brake, X-631F5

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Park Brake, X-631F5

2шт.

19

84074638

LOCKING TAB,Locking Wedge, Green

Park Brake, X-631F5

1шт.

20

87700107

ELEC CONNECTOR

Hyd Oil Temp and Level, X-628F5

1шт.

20

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Hyd Oil Temp and Level, X-628F5

5шт.

20

84807680

PLUG

Red, Hyd Oil Temp and Level, X-628F5

1шт.

20

87705582

ELEC CONNECTOR

Wedge Lock, Hyd Oil Temp and Level, X-628F5

1шт.

21

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydraulic Filter Indicator, X-629F5

1шт.

21

87692856

CABLE TERMINAL

Female, Tin, Hydraulic Filter Indicator, X-629F5

2шт.

21

87680701

SEAL

Hydraulic Filter Indicator, X-629F5

2шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Traction Control, X-643F5

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Traction Control, X-643F5

2шт.

22

84074638

LOCKING TAB,Locking Wedge, Green

Traction Control, X-643F5

1шт.
