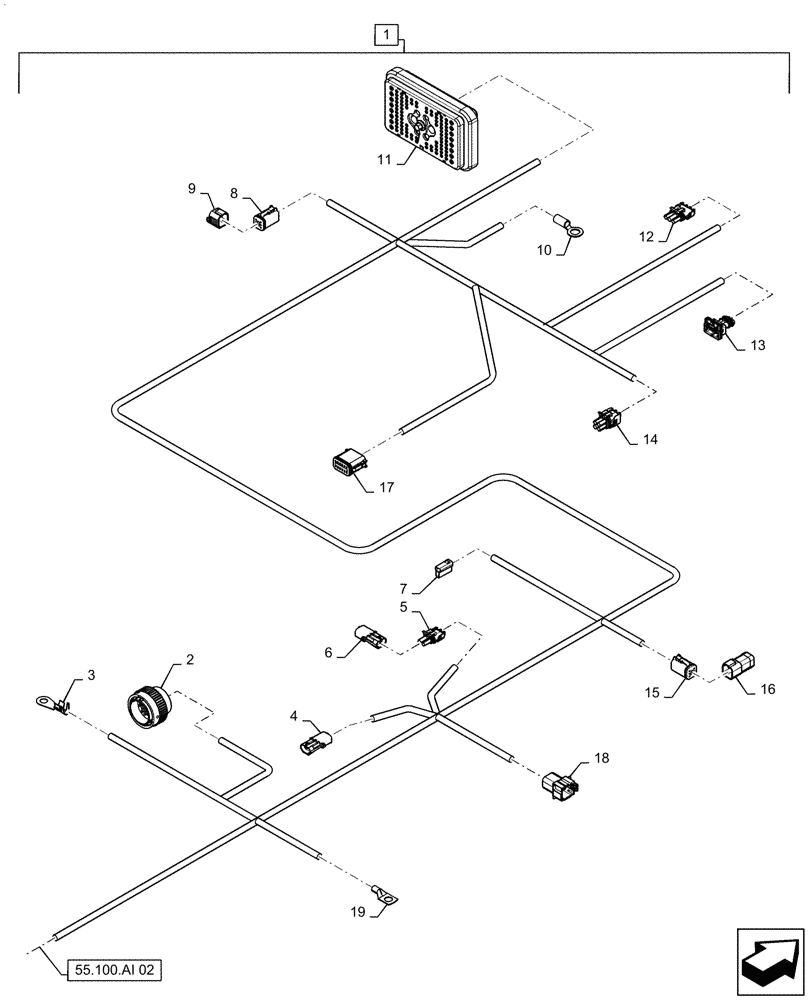

Запчасти Case IH PATRIOT 4440 (55.100.AI[01]) - MAIN FRAME WIRE HARNESS, PART I (55) - ELECTRICAL SYSTEMS

1

47740219

WIRE HARNESS

Frame Harness, Incl 2 - 19

1шт.

2

84177901

ELEC CONNECTOR

31 Cavity, Male, Engine Interface, XB-801M4

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Nickel, Engine Interface, XB-801M4

16шт.

2

84068583

PLUG,12 - 16 Ga, White

Engine Interface, XB-801M4

15шт.

3

84149204

TERMINAL CONNECTOR

Ring, Ground Box, CG-MF5

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Remote Power, X-630M3

1шт.

4

87692880

CABLE TERMINAL

Male, Tin, Remote Power, X-630M3

2шт.

4

87680701

SEAL

Cable, Green, Remote Power, X-630M3

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

Auxilary Boom Lights, X-627F5

1шт.

5

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Auxilary Boom Lights, X-627F5

2шт.

5

87680710

SEAL

Cable, Gray, Auxilary Boom Lights, X-627F5

2шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap For Auxilary Boom Lights, X-627M5

1шт.

6

87686742

PLUG

Green, Cap, X-627M5

2шт.

7

87697531

ELEC CONNECTOR,Female, 2 Cavities

Washer, X-625F5

1шт.

7

87709400

ELEC. TERMINAL PIN

Female, Tin, Washer, X-625F5

2шт.

8

87694112

ELEC CONNECTOR,Female, 6 Pole

Mirrors, X-612F5

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Mirrors, X-612F5

6шт.

9

84391167

CAP

X-612M5

1шт.

9

87694150

LOCKING TAB,Wedge Lock

Wedge Lock, Cap X-612M5

1шт.

10

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Ground, X-648F5

1шт.

11

87707116

WIRE CONNECTOR

102 Cavity, Female, Main Frame Bulkhead, XB-6F3

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Main Frame Bulkhead, XB-6F3

51шт.

11

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Main Frame Bulkhead, XB-6F3

7шт.

11

87704528

TERMINAL

Female, Nickel, Main Frame Bulkhead, XB-6F3

1шт.

11

87695923

TERMINAL

Female, Nickel, Main Frame Bulkhead, XB-6F3

4шт.

11

84068583

PLUG,12 - 16 Ga, White

Main Frame Bulkhead, XB-6F3

35шт.

11

87707258

PLUG

White, #8, Main Frame Bulkhead, XB-6F3

4шт.

12

87644909

WIRE CONNECTOR,Female, 3 Pins

3 Cavity, Fuel Sender, X-610F5

1шт.

12

87692856

CABLE TERMINAL

Female, Tin, Fuel Sender, X-610F5

3шт.

12

87680701

SEAL

Cable, Green, Fuel Sender, X-610F5

3шт.

13

87709663

ELEC CONNECTOR,Female, 3 Cavities

Water In Fuel Sensor, X-666F5

1шт.

13

87694668

ELEC CONNECTOR

Female, Tin, Water In Fuel Sensor, X-666F5

3шт.

13

87691480

SEAL

Cable, Water In Fuel Sensor, X-666F5

2шт.

13

87691478

SEAL

Cable, Water In Fuel Sensor, X-666F5

1шт.

14

87692862

ELEC CONNECTOR

4 Cavity, Radar Interface, X-603F5

1шт.

14

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Radar Interface, X-603F5

4шт.

14

87680710

SEAL

Cable, Green, Radar Interface, X-603F5

4шт.

15

87694112

ELEC CONNECTOR,Female, 6 Pole

Splice Pack, 047A, SP-47FA5

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, 047A, SP-47FA5

2шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, 047A, SP-47FA5

3шт.

15

84068583

PLUG,12 - 16 Ga, White

Splice Pack, 047A, SP-47FA5

1шт.

16

87587623

CONTACT HOUSING

Cap, Splice Pack, X-47MA5

1шт.

16

87694150

LOCKING TAB,Wedge Lock

Wedge Lock, Splice Pack, X-47MA5

1шт.

17

87695592

CONTACT HOUSING,Female, 12 Pole

Front Light Interface, X-640F5

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Front Light Interface, X-640F5

5шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Front Light Interface, X-640F5

5шт.

17

84068583

PLUG,12 - 16 Ga, White

Front Light Interface, X-640F5

2шт.

17

87695651

LOCKING TAB,Wedge Lock

Wedge Lock, Front Light Interface, X-640F5

1шт.

18

87700321

ELEC CONNECTOR,Female, 8 Cavities

8 Cavity Male, Eng Remote, X-800M3

1шт.

18

87695623

ELEC. TERMINAL PIN

Male, Nickel, Eng Remote, X-800M3

6шт.

18

84068583

PLUG,12 - 16 Ga, White

Eng Remote, X-800M3

2шт.

18

84806919

PLUG,Wedge Lock

Wedge Lock, Eng Remote, X-800M3

1шт.

19

84176551

ELEC CONNECTOR,16.00 - 16.00mm

Ring, M10, Chassis Ground, G1-MF5

1шт.
