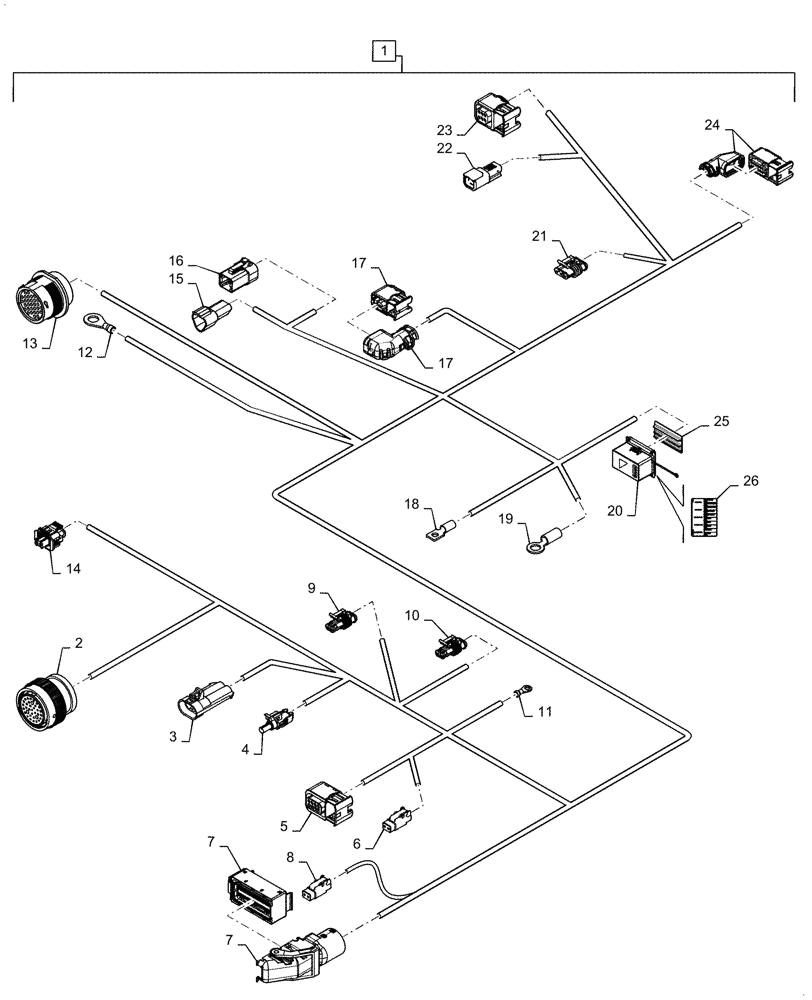

Запчасти Case IH PATRIOT 4440 (55.015.AB[03]) - ENGINE WIRE HARNESS, ASN YGT042518 (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47767925
WIRE HARNESS
Engine, Incl 2 - 26
1шт.
2
87700817
ELEC CONNECTOR
Female, 35 cavity, Interface, XB-802F5
1шт.
2
84807680
PLUG
Blind Seal, Red, XB-802F5
18шт.
2
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Interface, XB-802F5
16шт.
2
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Interface, XB-802F5
1шт.
3
87688788
MULTIPOLE CONNECTOR,Male, 2 Pole
AC Safety SW, X-813M3
1шт.
3
87688814
TERMINAL
Male, AC Safety SW, X-813M3
2шт.
3
87688862
LOCKING TAB
Wedge Lock, AC Safety SW, X-813M3
1шт.
4
87693744
WIRE CONNECTOR
1 Cavity, AC Clutch, X-814F3
1шт.
4
87692856
CABLE TERMINAL
Female, Tin, AC Clutch, X-814F3
1шт.
4
87680701
SEAL
Cable, Green, AC Clutch, X-814F3
1шт.
5
84152563
ELEC CONNECTOR
Receptacle, 7 Cavity, FPT Interface, X- 840F3
1шт.
5
82035902
PLUG
Cavity, FPT Interface, X- 840F3
1шт.
5
84129571
PLUG
Blind, FPT Interface, X- 840F3
2шт.
5
84152576
TERMINAL
Female, Tin, FPT Interface, X- 840F3
4шт.
5
87691478
SEAL
Wire, FPT Interface, X- 840F3
2шт.
5
84129570
SEAL
Wire, FPT Interface, X- 840F3
2шт.
6
87696093
ELEC CONNECTOR,Female, 2 Cavities
NOX Can Interface, X-819F1
1шт.
6
84807680
PLUG
Blind Seal, Red, NOX Can Interface, X-819F1
2шт.
6
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
NOX Can Interface, X-819F1
2шт.
6
87696145
LOCKING TAB
Wedge, NOX Can Interface, X-819F1
1шт.
7
84300197
ELEC CONNECTOR
96 Cavity, Female, Engine ECM, X-816F3
1шт.
7
84300196
TERMINAL
Female, Silver, Matrix 1.2, Engine ECM, X-816F3
1шт.
7
84300195
TERMINAL
Female, Silver, Matrix 1.2, Engine ECM, X-816F3
20шт.
7
47766631
TERMINAL
Female, Silver, Matrix 1.2, Engine ECM, X-816F3
25шт.
7
84300193
LOCK
Secondary Lock, Engine ECM, X-816F3
1шт.
7
84300198
ELEC CONNECTOR
Cover, Engine ECM, X-816F3
1шт.
8
87696093
ELEC CONNECTOR,Female, 2 Cavities
Flash Port, X-818F3
1шт.
8
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Flash Port, X-818F3
2шт.
8
84807680
PLUG
Blind Seal, Red, Flash Port, X-818F3
2шт.
8
87696145
LOCKING TAB
Wedge, Flash Port, X-818F3
1шт.
9
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
Intermediate Start X-806F3
2шт.
9
87406998
SEAL
Wire, Intermediate Start X-806F3
2шт.
10
87687564
TERMINAL CONNECTOR
Female, Tin, Grid Heater X-817F3
2шт.
10
82012084
SEAL,1.4mm ID
Wire, Yellow, Grid Heater X-817F3
2шт.
11
84127304
TERMINAL
Ring M5, Alternator Excite X-835F5
1шт.
12
84140737
TERMINAL CONNECTOR
Ring M10, Chassis Ground G1-SPX
1шт.
13
87696944
ELEC CONNECTOR,Female, 31 Pole
Engine Interface XB-801F3
1шт.
13
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Engine Interface XB-801F3
12шт.
13
84068583
PLUG,12 - 16 Ga, White
Engine Interface XB-801F3
19шт.
13
87271930
NUT
Plastic, Panel, Engine Interface XB-801F3
1шт.
14
47399877
TERMINAL
Female, Silver, DEF Dosing Module, X-804F3
2шт.
14
87705976
SEAL
Wire, Yellow, DEF Dosing Module, X-804F3
2шт.
15
87695723
ELEC CONNECTOR,Male , 3 Pole
SW PWR Interface, X-505M3
1шт.
15
87697956
TERMINAL
Male, Gold, SW PWR Interface, X-505M3
2шт.
15
87695625
WIRE CONNECTOR,Locking, Green
3 Way, SW PWR Interface, X-505M3
1шт.
16
87707727
WIRE CONNECTOR
4 Way, Female, PWR Interface X-506F3
1шт.
16
87695923
TERMINAL
Female, Nickel, PWR Interface X-506F3
4шт.
16
87707796
ELEC CONNECTOR
Wedge Lock, PWR Interface X-506F3
1шт.
16
87421341
MULTIPOLE CONNECTOR,Male, 4 Pole
PWR Interface X-506F3
1шт.
16
84068583
PLUG,12 - 16 Ga, White
Blind Seal, PWR Interface X-506F3
4шт.
17
84146685
WIRE CONNECTOR,Female, 3 Cavities
Urea Heater Valve X-829F3
1шт.
17
84152576
TERMINAL
Female, Tin, Urea Heater Valve X-829F3
2шт.
17
84129571
PLUG
Blind Seal, White, Urea Heater Valve X-829F3
1шт.
17
84595907
ELEC CONNECTOR
90° Cover, Black, Urea Heater Valve X-829F3
1шт.
18
84260359
TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm
Ring, M5, Battery Power PD3.3
1шт.
19
84398828
TERMINAL,3/8" Ring, SAE 8
Clean Ground CG4.3
1шт.
20
87312843
FUSE BOX
50 Way, Fuse / Relay, X-810F3
1шт.
20
84127704
FUSE,20A, Mini, Yellow
X-810F3
2шт.
20
84127708
FUSE,30A, Mini, Green
X-810F3
7шт.
20
87655334
RELAY,12V, 35A, Micro
X-810F3
3шт.
20
87704966
TERMINAL
Female, Tin, Fuse / Relay X-810F3
7шт.
20
84286327
SEAL
Green, Fuse / Relay X-810F3
7шт.
20
84392736
TERMINAL CONNECTOR
Female, Tin, Fuse / Relay X-810F3
20шт.
20
87698530
SEAL
Blue, Fuse / Relay X-810F3
20шт.
20
87686742
PLUG
Cavity Green, Fuse / Relay X-810F3
18шт.
21
84062580
CONNECTOR, ELEC
3 Cavity, Urea Tank Sensor Interface X-803F3
1шт.
21
87687564
TERMINAL CONNECTOR
Female, Tin, Urea Tank Sensor Interface X-803F3
2шт.
21
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
Urea Tank Sensor Interface X-803F3
1шт.
21
82012084
SEAL,1.4mm ID
Cavity, Yellow, Urea Tank Sensor Interface X-803F3
3шт.
22
87696141
TERMINAL
Male, Nickel, Terminator X-827M3
2шт.
22
87696585
LOCKING TAB,Wedge Lock, 2-Pin
Terminator X-827M3
1шт.
22
84539353
WIRE CONNECTOR
120 OHM, Resistor, X-827M3
1шт.
23
84149219
ELEC CONNECTOR
6 Cavity, X-838F3
1шт.
23
84152576
TERMINAL
Female, Tin, X-838F3
4шт.
23
84129570
SEAL
Wire, X-838F3
4шт.
23
84129571
PLUG
Cavity, X-838F3
2шт.
24
84152570
ELEC CONNECTOR,Female, 12 Cavities
Denox Supply Module X-823F3
1шт.
24
84152576
TERMINAL
Female,Tin, Denox Supply Module X-823F3
8шт.
24
84129571
PLUG
Cavity, Denox Supply Module X-823F3
4шт.
24
84567010
COVER
90°, Black, Denox Supply Module X-823F3
1шт.
25
47584669
RETAINER
Relay Holder, Fusebox
1шт.
26
47740115
DECAL
Fuse Box
1шт.
Выбрано товаров: 92
