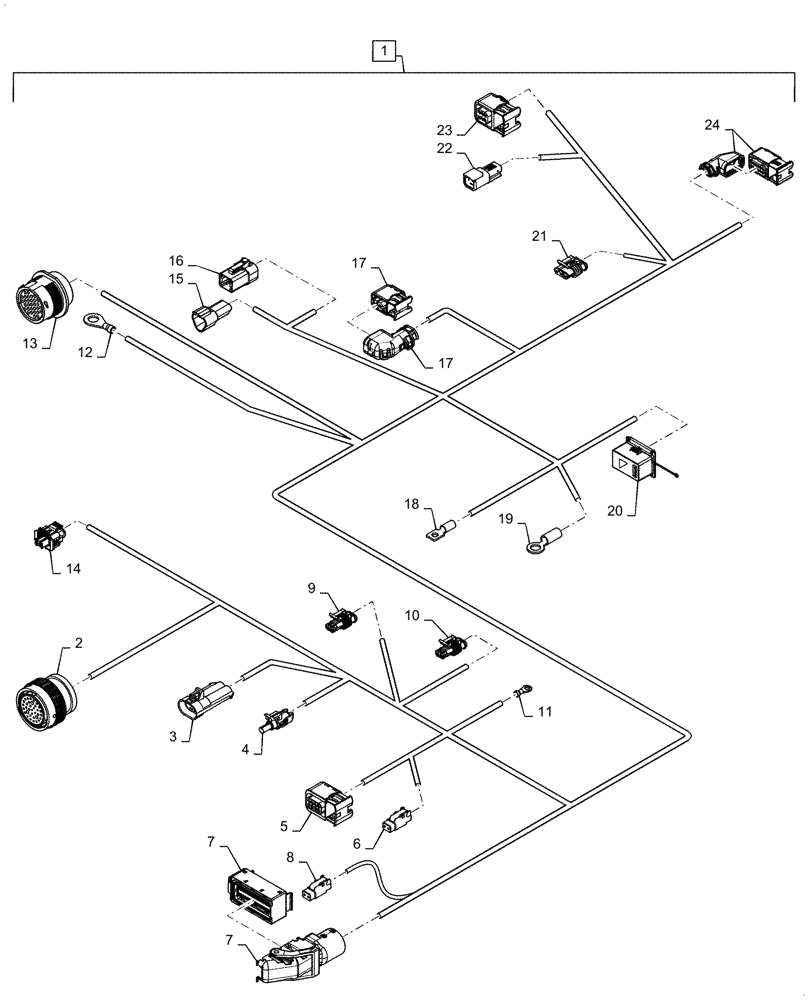

Запчасти Case IH PATRIOT 4440 (55.015.AB[02]) - ENGINE WIRE HARNESS, BSN YGT042519 (55) - ELECTRICAL SYSTEMS

1

47687091

WIRE HARNESS

Engine, 9L

1шт.

2

87700817

ELEC CONNECTOR

Interface, XB-802F5

1шт.

2

84807680

PLUG

20, Interface, XB-802F5

18шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Interface, XB-802F5

16шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Interface, XB-802F5

1шт.

3

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

AC Safety SW, X-813M3

1шт.

3

87688862

LOCKING TAB

AC Safety SW, X-813M3

1шт.

3

87688814

TERMINAL

Male Metri - Pack 480 Tin Plated, AC Safety SW, X-813M3

2шт.

3

87688859

PLUG,0.8 - 2mm, Red

AC Safety SW, X-813M3

2шт.

4

87693744

WIRE CONNECTOR

Weather Pack, X-814F3

1шт.

5

84152563

ELEC CONNECTOR

FPT Interface, X- 840F3

1шт.

5

82035902

PLUG

FPT Interface, X- 840F3

1шт.

5

84129571

PLUG

FPT Interface, X- 840F3

2шт.

5

84152576

TERMINAL

FPT Interface, X- 840F3

4шт.

5

87691478

SEAL

5MM Hole, FPT Interface, X- 840F3

2шт.

5

84129570

SEAL

FPT Interface, X- 840F3

2шт.

6

87696093

ELEC CONNECTOR,Female, 2 Cavities

NOX Can Interface, X-819F1

1шт.

6

84807680

PLUG

20, NOX Can Interface, X-819F1

2шт.

6

87696145

LOCKING TAB

2 Way Secondary, NOX Can Interface, X-819F1

1шт.

6

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Way, NOX Can Interface, X-819F1

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

NOX Can Interface, X-819F1

2шт.

7

84300197

ELEC CONNECTOR

Engine ECM, X-816F3

1шт.

7

84300198

ELEC CONNECTOR

Cover, Engine ECM, X-816F3

1шт.

7

84300193

LOCK

Secondary Lock, Engine ECM, X-816F3

1шт.

7

84300196

TERMINAL

Female, Matrix 1.2, Engine ECM, X-816F3

1шт.

7

84300195

TERMINAL

Female, Matrix 1.2, Engine ECM, X-816F3

20шт.

7

47766631

TERMINAL

Female, Matrix 1.2, Engine ECM, X-816F3

25шт.

8

87696093

ELEC CONNECTOR,Female, 2 Cavities

Flashing, X-818F3

1шт.

8

84807680

PLUG

20, Flashing, X-818F3

2шт.

8

87696145

LOCKING TAB

Wedge, 2 Way, Flashing, X-818F3

1шт.

8

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Way, Flashing, X-818F3

1шт.

9

82012083

WIRE CONNECTOR,Female

Intermediate Start X-806f3

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Intermediate Start X-806f3

1шт.

9

87406998

SEAL

Intermediate Start X-806f3

1шт.

10

82012083

WIRE CONNECTOR,Female

Grid Heater X-817F3

1шт.

10

87687564

TERMINAL CONNECTOR

Mini Mic, Grid Heater X-817F3

2шт.

10

82012084

SEAL,1.4mm ID

Rubber, Grid Heater X-817F3

2шт.

11

84127304

TERMINAL

Ring M5, ALT Excite X-835F5

1шт.

12

84140737

TERMINAL CONNECTOR

Ring M10-6, Chassis Ground G1-SPX

1шт.

13

87696944

ELEC CONNECTOR,Female, 31 Pole

Engine Interface XB-801F3

1шт.

13

87271930

NUT

Plastic, Engine Interface XB-801F3

1шт.

13

84068583

PLUG,12 - 16 Ga, White

Engine Interface XB-801F3

19шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Engine Interface XB-801F3

12шт.

14

87709793

WIRE CONNECTOR,Female, 2 Cavities

DEF Dosing Module, X-804F3

1шт.

14

47399877

TERMINAL

Damping BDK 2.8, DEF Dosing Module, X-804F3

2шт.

14

87705976

SEAL

DEF Dosing Module, X-804F3

2шт.

15

87695723

ELEC CONNECTOR,Male , 3 Pole

SW PWR Interface, X-505M3

1шт.

15

87695625

WIRE CONNECTOR,Locking, Green

3 Way, SW PWR Interface, X-505M3

1шт.

15

87695623

ELEC. TERMINAL PIN

Pin Size 16, SW PWR Interface, X-505M3

1шт.

15

87697956

TERMINAL

Male, Size 16, SW PWR Interface, X-505M3

2шт.

16

87707727

WIRE CONNECTOR

4 Way, PWR Interface X-506F3

1шт.

16

84068583

PLUG,12 - 16 Ga, White

PWR Interface X-506F3

4шт.

16

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

4 Way, PWR Interface X-506F3

1шт.

16

87707796

ELEC CONNECTOR

4 Way, PWR Interface X-506F3

1шт.

16

87695923

TERMINAL

Size 12, PWR Interface X-506F3

4шт.

17

84146685

WIRE CONNECTOR,Female, 3 Cavities

Urea Heater Valve X-829F3

1шт.

17

84129571

PLUG

Cavity, Urea Heater Valve X-829F3

1шт.

17

84595907

ELEC CONNECTOR

90D Cover, Urea Heater Valve X-829F3

1шт.

17

84152576

TERMINAL

1.5K Recep, Urea Heater Valve X-829F3

2шт.

18

84260359

TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm

Battery Power PD3.3

1шт.

19

84398828

TERMINAL,3/8" Ring, SAE 8

Clean Ground CG4.3

1шт.

20

87312843

FUSE BOX

50W, Ext Fuse Relays X-810F3

1шт.

20

87686742

PLUG

Cavity, Ext Fuse Relays X-810F3

18шт.

20

84127704

FUSE,20A, Mini, Yellow

Ext Fuse Relays X-810F3

2шт.

20

84127708

FUSE,30A, Mini, Green

Ext Fuse Relays X-810F3

7шт.

20

87655334

RELAY,12V, 35A, Micro

Ext Fuse Relays X-810F3

3шт.

20

87704966

TERMINAL

Female, Metri - Pack 280.1 Tin Plated, Ext Fuse Relays X-810F3

7шт.

20

84286327

SEAL

Rubber, Ext Fuse Relays X-810F3

7шт.

20

84392736

TERMINAL CONNECTOR

Female, Metri - Pack 280, Ext Fuse Relays X-810F3

19шт.

20

87698530

SEAL

Blue, Loose Cable, Ext Fuse Relays X-810F3

19шт.

20

87693249

ELEC. TERMINAL PIN

Female, Metri - Pack 280 Tin Plated, Ext Fuse Relays X-810F3

2шт.

21

84062580

CONNECTOR, ELEC

3 Way, Urea Tank Sensor Interface X-803F3

1шт.

21

87687564

TERMINAL CONNECTOR

Mini, Urea Tank Sensor Interface X-803F3

2шт.

21

82012084

SEAL,1.4mm ID

Rubber, Urea Tank Sensor Interface X-803F3

3шт.

21

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Urea Tank Sensor Interface X-803F3

1шт.

22

87696547

ELEC CONNECTOR,Female, 2 Cavities

Terminator X-827M3

1шт.

22

84539353

WIRE CONNECTOR

2 Way, Terminator X-827M3

1шт.

22

87696585

LOCKING TAB,Wedge Lock, 2-Pin

2 Way Lock, Terminator X-827M3

1шт.

22

87696141

TERMINAL

Pin Size 20, Terminator X-827M3

2шт.

23

84149219

ELEC CONNECTOR

6 Way, X-838F3

1шт.

23

84129571

PLUG

Cavity, X-838F3

2шт.

23

84152576

TERMINAL

1.5K Recep, X-838F3

4шт.

23

84129570

SEAL

X-838F3

4шт.

24

84152570

ELEC CONNECTOR,Female, 12 Cavities

Denox Supply Module X-823F3

1шт.

24

84567010

COVER

Denox Supply Module X-823F3

1шт.

24

84129571

PLUG

Cavity, Denox Supply Module X-823F3

4шт.

24

84152576

TERMINAL

1.5K Recep, Denox Supply Module X-823F3

8шт.
