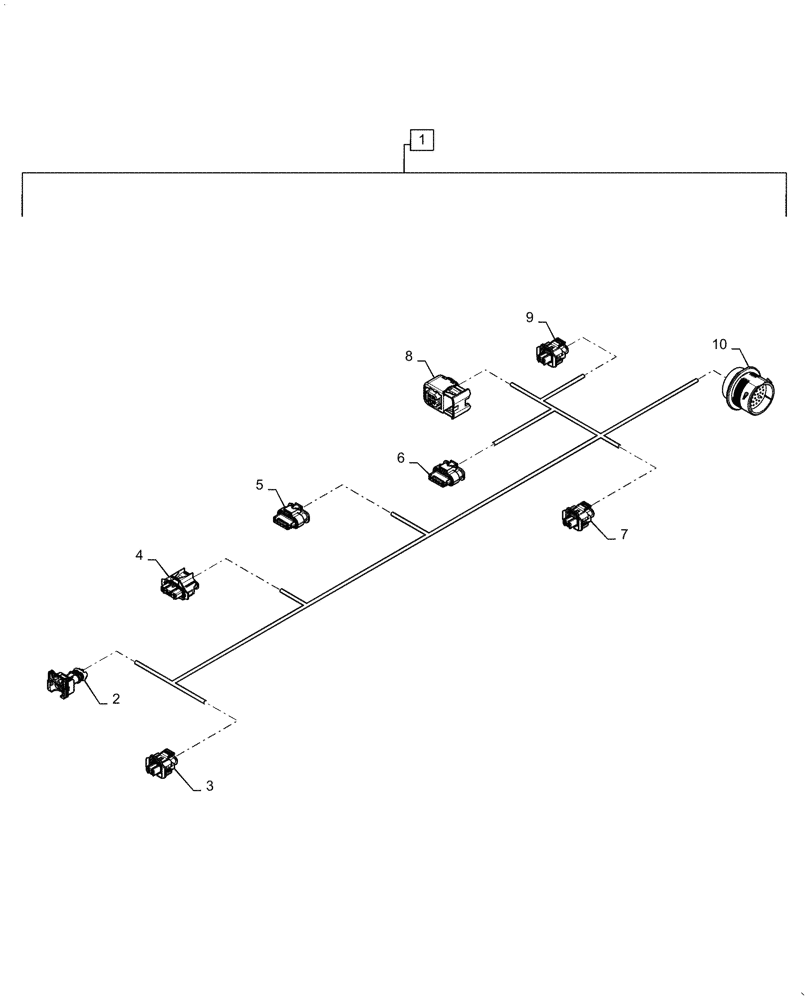

Запчасти Case IH PATRIOT 4440 (55.015.AB[01]) - WIRE HARNESS, EXHAUST SUB-ASM, T4B (55) - ELECTRICAL SYSTEMS

1

47673379

WIRE HARNESS

Exhaust

1шт.

2

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Restriction, X-811F3

1шт.

2

87697946

CONNECTOR, ELEC

Air Filter Restriction, X-811F3

2шт.

2

87702681

TERMINAL

Air Filter Restriction, X-811F3

2шт.

2

87691478

SEAL

Air Filter Restriction, X-811F3

2шт.

3

87709793

WIRE CONNECTOR,Female, 2 Cavities

SCR Upstream Temp, X-827F3

1шт.

3

87697949

ELEC. TERMINAL PIN

SCR Upstream Temp, X-827F3

1шт.

3

47399877

TERMINAL

SCR Upstream Temp, X-827F3

2шт.

3

87705976

SEAL

SCR Upstream Temp, X-827F3

2шт.

4

87709809

ELEC CONNECTOR

Humidity Temp, X-830F3

1шт.

4

87697946

CONNECTOR, ELEC

Humidity Temp, X-830F3

4шт.

4

84130602

TERMINAL CONNECTOR

Humidity Temp, X-830F3

4шт.

4

87705976

SEAL

Humidity Temp, X-830F3

4шт.

5

84190317

WIRE CONNECTOR,Female, 5 Cavities

DOC Upstream Nox, X-836F3

1шт.

5

84190318

TERMINAL CONNECTOR

DOC Upstream Nox, X-836F3

2шт.

6

84190317

WIRE CONNECTOR,Female, 5 Cavities

SCR Downstream Nox, X-825F3

1шт.

6

84190318

TERMINAL CONNECTOR

SCR Downstream Nox, X-825F3

2шт.

6

87709655

BLANK-OFF PLUG

SCR Downstream Nox, X-825F3

1шт.

7

87709793

WIRE CONNECTOR,Female, 2 Cavities

DOC Upstream Temp, X839F3

1шт.

7

87697949

ELEC. TERMINAL PIN

DOC Upstream Temp, X839F3

1шт.

7

47399877

TERMINAL

DOC Upstream Temp, X839F3

1шт.

7

87705976

SEAL

DOC Upstream Temp, X839F3

1шт.

8

84146686

ELEC CONNECTOR,Female, 4 Cavities

NH3 Sensor, X-831F3

1шт.

8

84152584

TERMINAL,Tin, 0.50 - 1.00mm

NH3 Sensor, X-831F3

1шт.

8

87691478

SEAL

NH3 Sensor, X-831F3

1шт.

9

87709793

WIRE CONNECTOR,Female, 2 Cavities

SCR DownstreamTemp, X-828F3

1шт.

9

87697949

ELEC. TERMINAL PIN

SCR DownstreamTemp, X-828F3

1шт.

9

47399877

TERMINAL

SCR DownstreamTemp, X-828F3

1шт.

9

87705976

SEAL

SCR DownstreamTemp, X-828F3

1шт.

10

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

Interface, XB-802M5

1шт.

10

87271930

NUT

Interface, XB-802M5

1шт.

10

84190318

TERMINAL CONNECTOR

Interface, XB-802M5

1шт.

10

87697946

CONNECTOR, ELEC

Interface, XB-802M5

1шт.

10

84807680

PLUG

Interface, XB-802M5

16шт.

10

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Interface, XB-802M5

1шт.

10

87697949

ELEC. TERMINAL PIN

Interface, XB-802M5

1шт.
