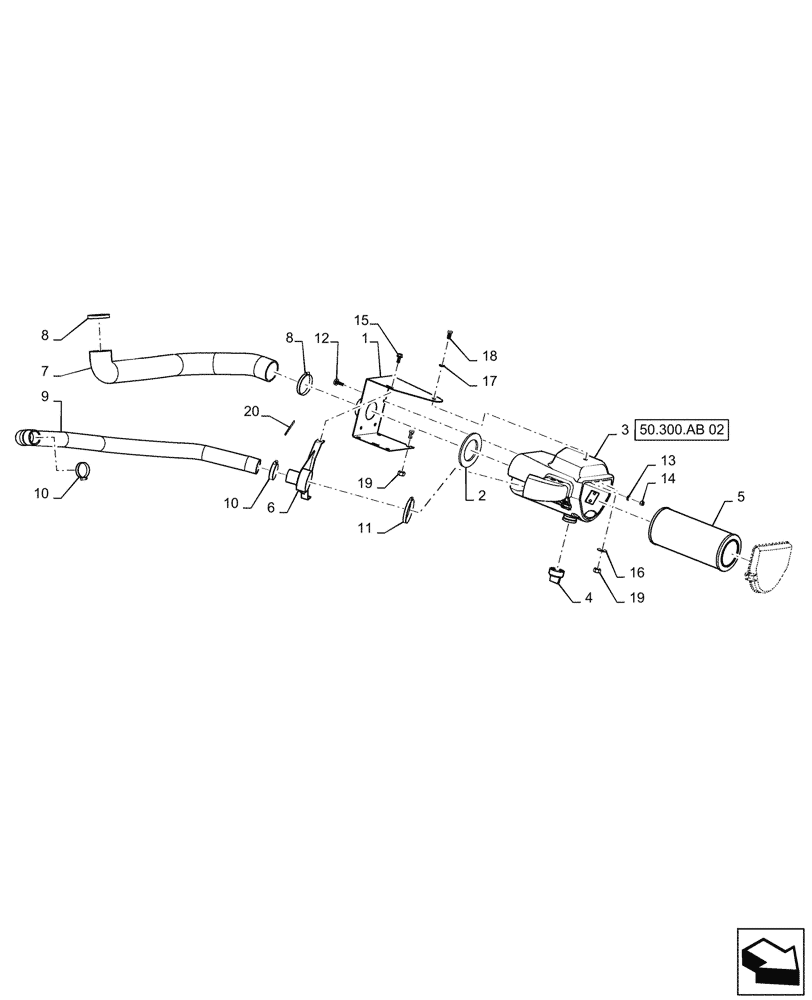

Запчасти Case IH PATRIOT 4440 (50.300.AB[01]) - CAB AIR INTAKE FILTER (50) - CAB CLIMATE CONTROL

1

BN323644

SUPPORT

Filter Housing

1шт.

2

255219A2

GASKET

Bracket To Housing

1шт.

3

BN324282

HOUSING

Cab Housing Assembly

1шт.

See Fig 50.206.08 For Service Parts

1шт.

4

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Evacuator

1шт.

5

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab, Activated Carbon

1шт.

6

BN324249

SUPPORT

Elbow

1шт.

7

84398026

HOSE

Cab Filter Outlet

1шт.

8

343199A1

HOSE CLAMP

#44, Stainless Steel

2шт.

9

BN324258

HOSE,51.00 mm ID x 1250.00 mm

Filter Inlet

1шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

11

214-3272

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm, W/ Liner

1шт.

12

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

13

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

4шт.

14

825-1405

NUT,M5, Cl 8

4шт.

15

87344207

BOLT,Hex, M8 x 20mm, Cl 10.9

Flange, M8 x 20mm, CL10.9, DOR

2шт.

16

87529132

WASHER,0.34" ID x 1.5" OD x 0.06" Thk

5/16" x 1.5" x 0.06", CST, DOR

1шт.

17

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

18

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

20

48073906

TRIM

Edge 5.3"

1шт.
