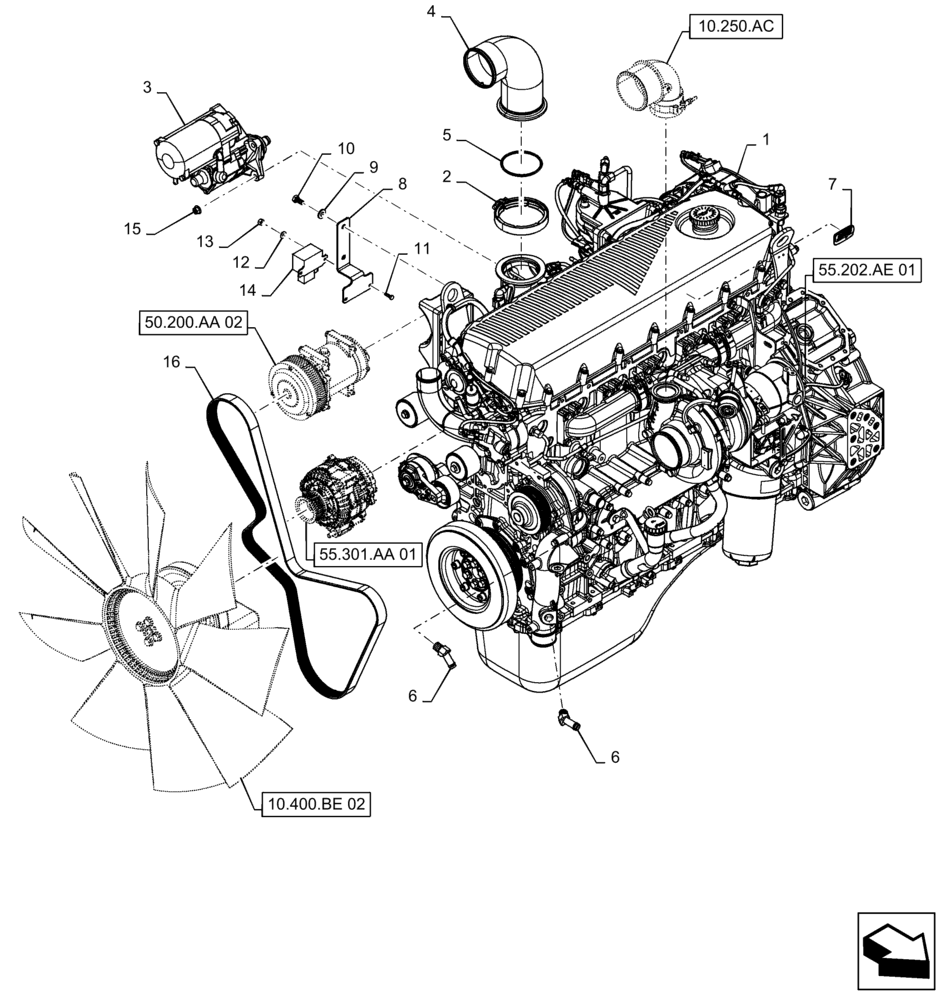

Запчасти Case IH PATRIOT 4440 (10.001.AA[03]) - ENGINE ACCESSORIES (10) - ENGINE

1

47566947

ENGINE

FPT, CT19 Sprayer

1шт.

47566947ER

Reman Engine FPT, CT19 Sprayer

REMAN-REPLACEMENT EN

1шт.

47566947EPAC

Return Number

CORE-REPLACEMENT ENG

1шт.

2

87304529

SPECIAL CLAMP,125mm - 129mm

V - Band

1шт.

3

84150030

STARTER MOTOR,12V, 5kW

Denso, 12V

1шт.

3

84150030R

REMAN-STARTER,12V, 5kW

Denso, 12V

1шт.

3

84150030C

CORE-STARTER,12V, 5kW

Return Number

1шт.

4

47400013

AIR INTAKE

FPT Engine

1шт.

5

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

6

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

2шт.

7

84373430

EMBLEM

Case - IH, Engine

1шт.

8

84396516

MOUNT

Relay

1шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

10

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

11

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

12

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

14

86619908

RELAY,12V, 150A

FPT Engine

1шт.

15

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

3шт.

16

84292913

BELT,2203.00 mm L

Engine

1шт.
