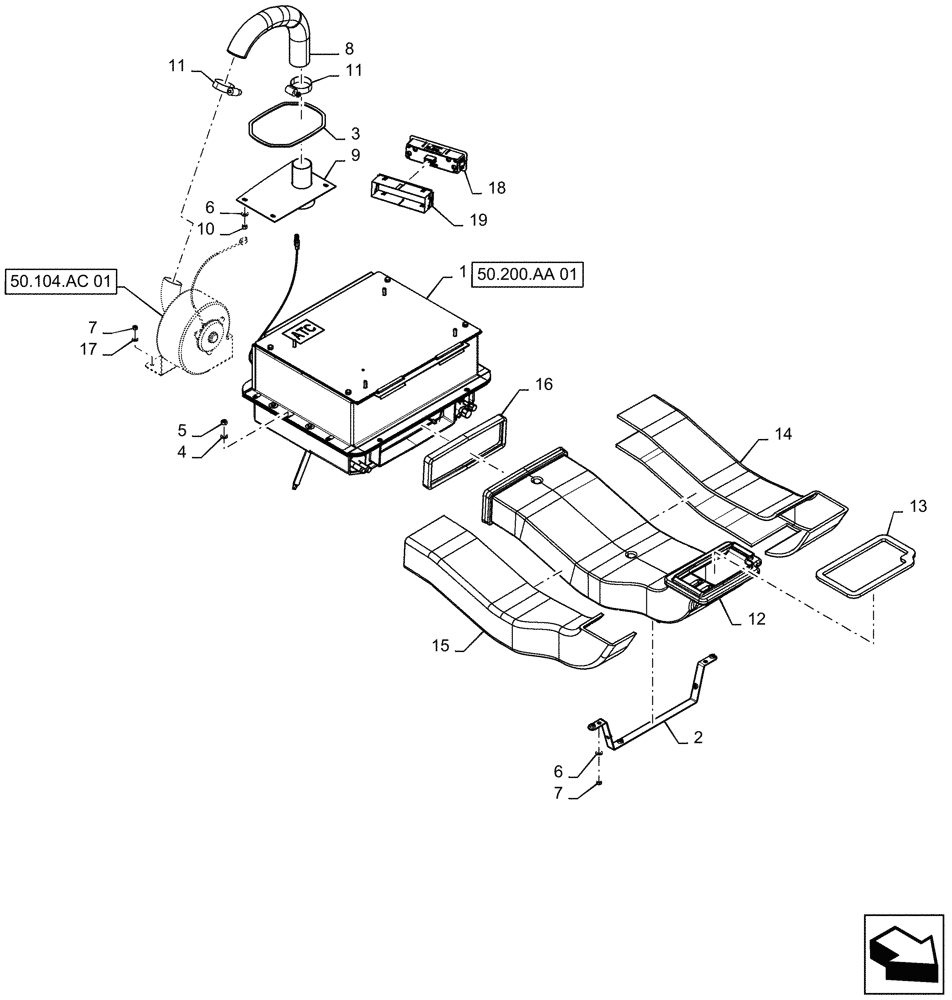

Запчасти Case IH PATRIOT 4440 (50.200.CG[01]) - CAB AIR CONDITIONING (50) - CAB CLIMATE CONTROL

1

48083719

AIR CONDITIONER

Unit, ATC

1шт.

2

384950A2

BRACKET

Duct

1шт.

3

359586A1

SEAL

Filter Housing To Floor Panel

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

8

84323014

INTAKE AIR HOSE,57mm ID x 465mm L

Air Intake

1шт.

9

84127937

AIR INTAKE

Cab

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

12

327851A1

DUCT

HVAC

1шт.

13

278967A3

GASKET

Duct To Cab Floor

1шт.

14

328052A2

FOAM INSULATION

HVAC Duct

1шт.

15

328051A2

FOAM INSULATION

HVAC Duct

1шт.

16

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

Duct

1шт.

17

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

18

47542136

HVAC Cab Control

CONTROL UNIT

1шт.

19

87281122

SLEEVE

Heater/AC Control

1шт.
