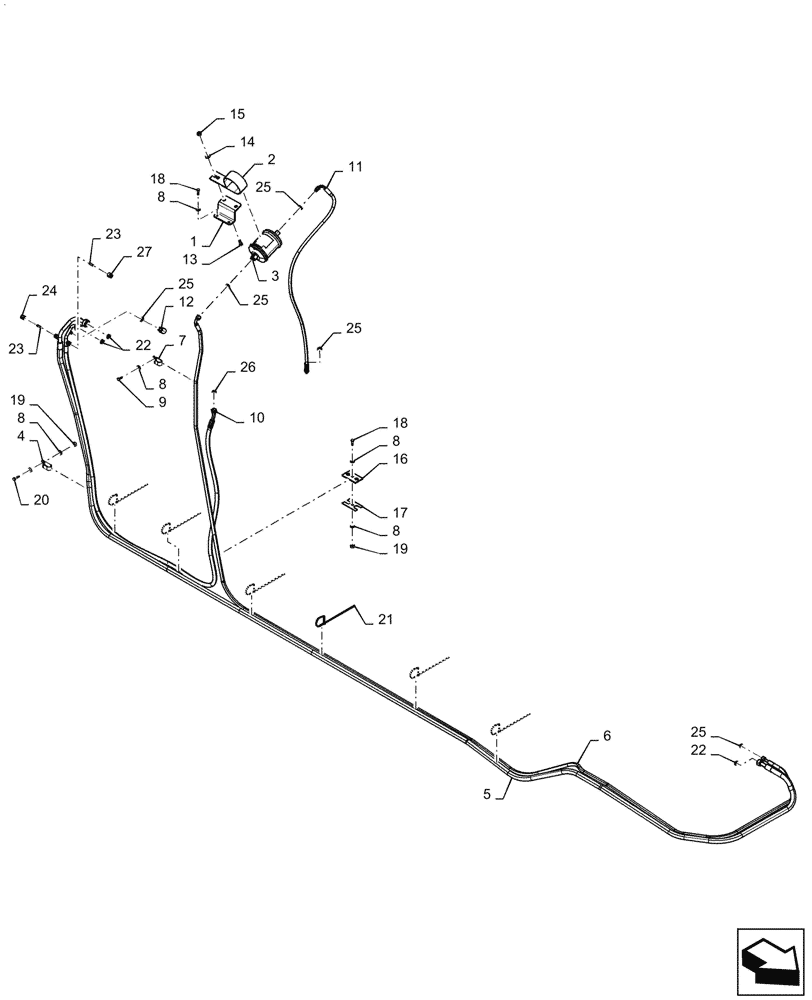

Запчасти Case IH PATRIOT 4440 (50.200.AB[01.1]) - AIR CONDITIONING LINES, ASN YGT044001 (50) - CAB CLIMATE CONTROL

1

87270649

MOUNTING PLATE

A/C Dryer

1шт.

2

D145289

SUPPORT

Receiver Dryer Bracket

1шт.

3

47821526

RECEIVER-DRYER

Horizontal

1шт.

4

R54363

CLAMP

Double

1шт.

5

84252510

A/C HOSE

Compressor To Cab

1шт.

6

48067333

HOSE

Cab To Dryer

1шт.

7

L101181

CLAMP,0.75" D Clamping pipes x 2

Insulated, Double

1шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

7шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

10

47939114

A/C HOSE

Condenser To Compressor

1шт.

11

47939117

A/C HOSE

Dryer To Condenser

1шт.

12

284273A2

SWITCH, A/C HIGH PRE

1шт.

13

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

16

87270790

SEAL

A/C Hoses

1шт.

17

87270791

PLATE

Seal, A/C Hoses

1шт.

18

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

20

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

21

BN570007

STRAP

14" Zip Tie

6шт.

22

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16" Thick, Green

3шт.

23

1250594C1

CORE

Service Port / Pressure Switch

2шт.

24

122553A1

CAP

Low Side Service Port, Light Blue, "L"

1шт.

25

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16" Thick, Green

6шт.

26

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16" Thick, Green

1шт.

27

122554A1

CAP

High Side Service Port, Light Blue, "H"

1шт.
