Запчасти Case IH PATRIOT 4440 (50.200.AB[01]) - AIR CONDITIONER LINES, BSN YGT044001 (50) - CAB CLIMATE CONTROL

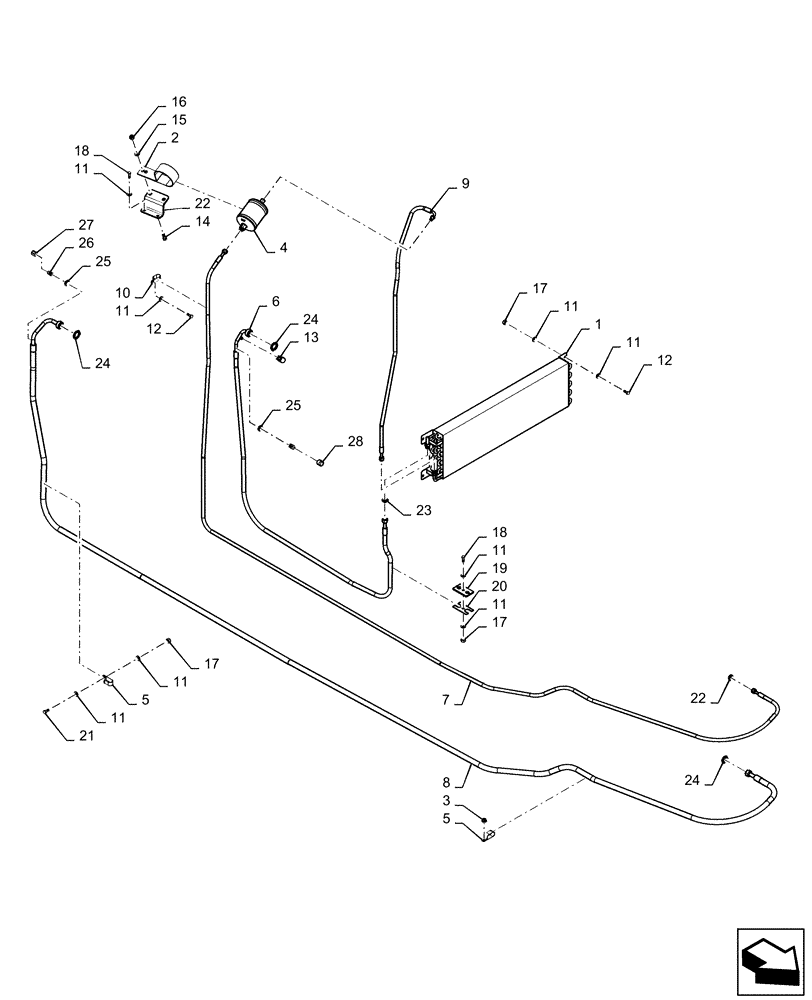

Схема запчастей Case IH PATRIOT 4440 - (50.200.AB[01]) - AIR CONDITIONER LINES, BSN YGT044001 (50) - CAB CLIMATE CONTROL
28
10
26
23
19
16
25
22
3
5
12
2
8
20
7
18
5
11
11
11
11
11
24
4
24
17
11
21
15
25
11
17
6
14
9
27
22
18
11
17
13
12
1
24

Артикул

Название

Примечание

Количество

1

84127942

CONDENSER

Air Conditioning

1шт.

2

D145289

SUPPORT

Receiver Dryer Bracket

1шт.

3

87344227

SERRATED NUT

Serrated, M8, SPL, DOR

1шт.

4

295006A1

RECEIVER-DRYER

HFC - 134a

1шт.

5

R54363

CLAMP

Double

2шт.

6

47435679

A/C HOSE

Condenser To Compressor

1шт.

7

84252510

A/C HOSE

Compressor To Cab

1шт.

8

47435703

A/C HOSE

Cab To Dryer

1шт.

9

84252513

A/C HOSE

Dryer To Condenser

1шт.

10

L101181

CLAMP,0.75" D Clamping pipes x 2

Insulated, Double

1шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

15шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

13

284273A2

SWITCH, A/C HIGH PRE

1шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

16

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

18

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

87270790

SEAL

A/C Hoses

1шт.

20

87270791

PLATE

Seal, A/C Hoses

1шт.

21

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

22

87270649

MOUNTING PLATE

A/C Dryer

1шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16" Thick, Green

5шт.

24

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16" Thick, Green

1шт.

25

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16" Thick, Green

3шт.

26

1250594C2

CORE

Schrader Valve, Service Port and Test Port

3шт.

27

122554A1

CAP

High Side Service Port, Light Blue, "H"

1шт.

28

122553A1

CAP

Low Side Service Port, Light Blue, "L"

1шт.

Выбрано товаров: 28
