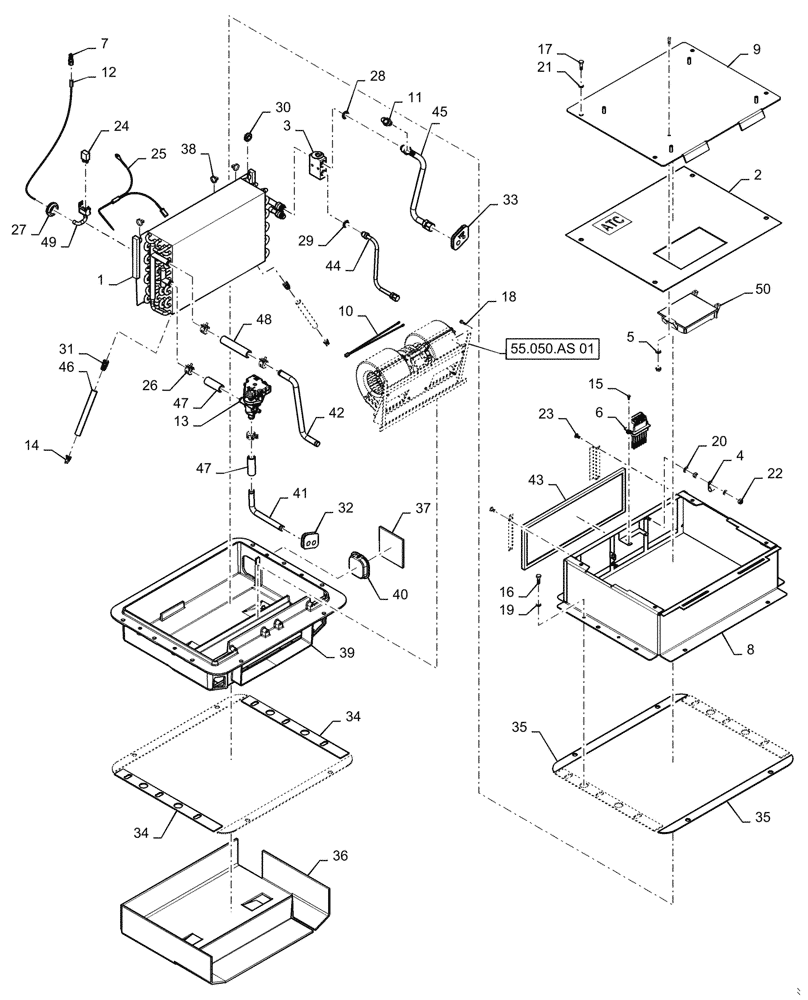

Запчасти Case IH PATRIOT 4440 (50.200.AA[01]) - AIR CONDITIONING WITH ATC (50) - CAB CLIMATE CONTROL

1

86990262

CORE

Evaporator & Heater

1шт.

2

87324951

GASKET,3mm Thk

Top Cover, HVAC Package

1шт.

3

386535A1

VALVE

THRM EXP, HFC -134A, 2 Ton

1шт.

4

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

5

87529300

WASHER,4.4mm ID x 9mm OD x 0.8mm Thk

4.4 x 9 x .8MM CST DOR

1шт.

6

47788712

SERVICE KIT

Driver Blower Linear

1шт.

7

87454442

SENSOR

Thermister, Cab Return Air

1шт.

8

87454443

CASE ASSY.

With Top

1шт.

9

87306495

COVER

With Top

1шт.

10

84598774

WIRE HARNESS

Jumper

1шт.

11

84419250

PRESSURE SWITCH

A/C Low

1шт.

12

84381101

WIRE HARNESS

ATC

1шт.

13

47597104

CONTROL

Heater Valve

1шт.

14

109239C2

CHECK VALVE

Evap Drain

2шт.

15

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

18

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

19

892-11006

LOCK WASHER,M6

5шт.

20

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

21

892-11008

LOCK WASHER,8mm ID

4шт.

22

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

23

439846

RIVET

Steel Pop

4шт.

24

105849A1

RELAY

Micro, 12 Volt

1шт.

25

323016A1

SENSOR

Temperature, HVAC

1шт.

26

1954736C1

HOSE CLAMP,#24

6шт.

27

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

28

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

29

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

30

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

31

1250522C3

FITTING

Drain

2шт.

32

322990A1

GROMMET

Bulkhead - Heater

1шт.

33

322989A1

GROMMET

Bulkhead - A/C

1шт.

34

322994A1

GASKET,3mm Thk

Flange

4шт.

35

322995A1

GASKET,3mm Thk

Flange

4шт.

36

324484A1

INSULATOR

Foil, Bottom

1шт.

37

87306773

FOAM INSULATION

Foil, Side

1шт.

38

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

39

322996A1

BOX

Lower Evaporator

1шт.

40

368313A1

PLASTIC PLUG

HVAC, Corner

1шт.

41

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

1шт.

42

322985A1

HEATER TUBE

1шт.

43

386751A1

CAB FILTER

Recirculated Air

1шт.

44

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

1шт.

45

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

1шт.

46

1977334C1

HOSE

Condensate Drain

2шт.

47

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

2шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

1шт.

49

47788712

SERVICE KIT

Wire Harness, Relay

1шт.

50

47532798

MODULE

Service ATC Control

1шт.

50

47532798R

REMAN-MODULE

ATC Control

1шт.

50

47532798C

CORE-MODULE

Return Number

1шт.
