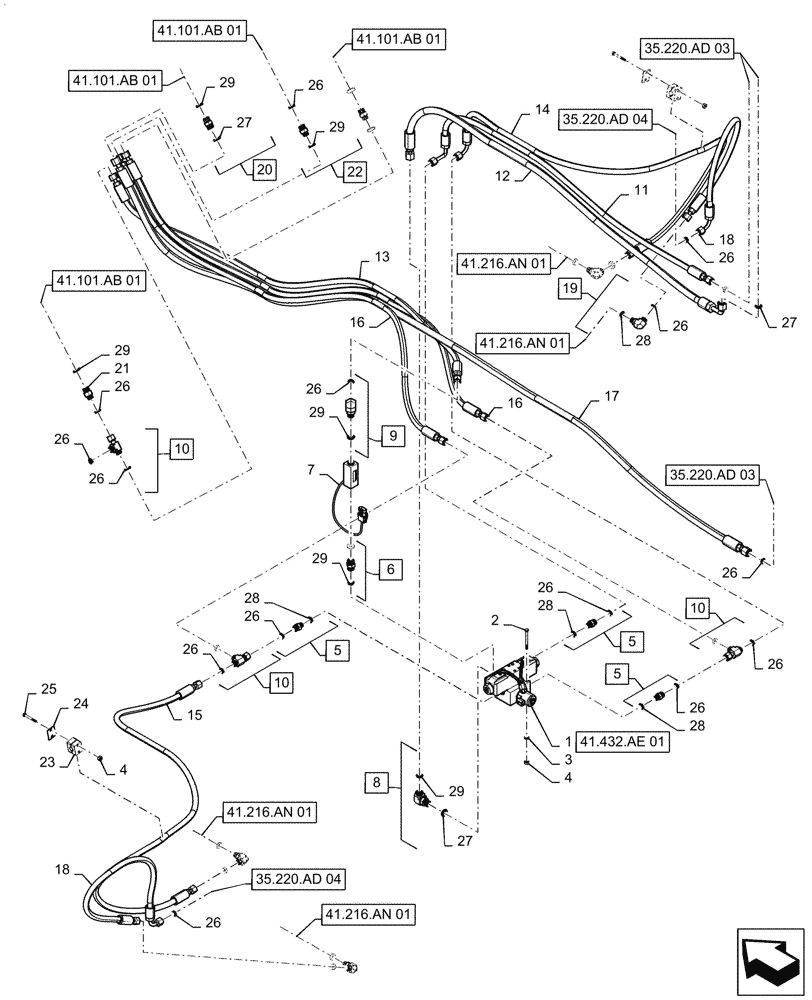

Запчасти Case IH PATRIOT 4440 (41.432.AG[02]) - AUTOGUIDANCE HYDRAULIC LINES, ASN YGT044000 (41) - STEERING

1

87609218

VALVE

Autoguidance

1шт.

See 41.432.AE 01 For Service

1шт.

2

86980368

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

3

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

6шт.

5

BN302646

FITTING

Straight, 11/16" - 16 ORFS x 9/16" - 18 ORB, Incl 26, 28

3шт.

6

BN322765

FITTING

Straight, 3/4" - 16 ORB x 3/4 - 16 ORB, Incl 29

1шт.

7

47626975

PRESSURE SWITCH

Auto Guide, Hydraulic Flow Control

1шт.

8

BN302558

ELBOW

13/16" - 16 ORFS x 3/4" - 16 ORB, Incl 27, 29

1шт.

9

BN302554

FITTING

Elbow, 11/16" - 16 ORFS x 3/4" - 16 ORB, Incl 26, 29

1шт.

10

BN302435

TEE

11/16" - 16 ORFS x 11/16" - 16 ORFS Swivel, Incl 26

3шт.

11

47952549

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel, Long Elbow, x 11/16" - 16 ORFS Swivel, Short Straight x 3/8" ID x 50 1/4" Long, Valve to Steel Line

1шт.

12

47952604

HYDRAULIC HOSE

13/16" - 16 ORFS Swivel Short Straight, x 13/16" - 16 ORFS Swivel Short Elbow, x 1/2" ID x 56" Long, Valve to Steel Line

1шт.

13

47952542

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel, Short Straight, x 11/16" - 16 ORFS Swivel, Short Straight x 3/8" ID x 60 3/4" Long, Orbital to Pressure Switch

1шт.

14

48033908

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel, Short Straight, x 11/16" - 16 ORFS Swivel, Short Straight x 3/8" ID x 72 11/16" Long, Tee to LH Steer Cylinder

1шт.

15

48033910

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel, Short Straight, x 11/16" - 16 ORFS Swivel, Short Straight x 3/8" ID x 81 1/2" Long, Tee to RH Steer Cylinder

1шт.

16

47952545

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel, Short Straight, x 11/16" - 16 ORFS Swivel, Short Straight x 3/8" ID x 66" Long, Orbital to Tee and Valve

2шт.

17

47923949

HYDRAULIC HOSE

13/16" - 16 ORFS Swivel Short Straight, x 13/16" - 16 ORFS Swivel Short Straight x 1/2" ID x 106 1/2" Long, Orbital to Steel Line

1шт.

18

BN307821

HOSE ASSY.

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel Medium Elbow x 3/8" ID x 33 1/2" Long, Steering Cylinder To Crossover Tube

2шт.

19

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB, Incl 26, 28

4шт.

20

BN302650

FITTING

13/16" -16 ORFS x 3/4" -16ORB, Incl 27, 29

1шт.

21

BN311751

CHECK VALVE

11/16" -16 ORFS x 3/4" -16ORB, 5 PSI Cracking Pressure, Incl 29

1шт.

22

BN302647

FITTING

11/16-16 ORFS x 3/4-16 ORB, Incl 26, 29

2шт.

23

BN315164

CLAMP

Pair Single, 5/8" Tube

2шт.

24

BN29785

PLATE

Top Plate, Single

2шт.

25

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

4шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

25шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

3шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

7шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

7шт.
