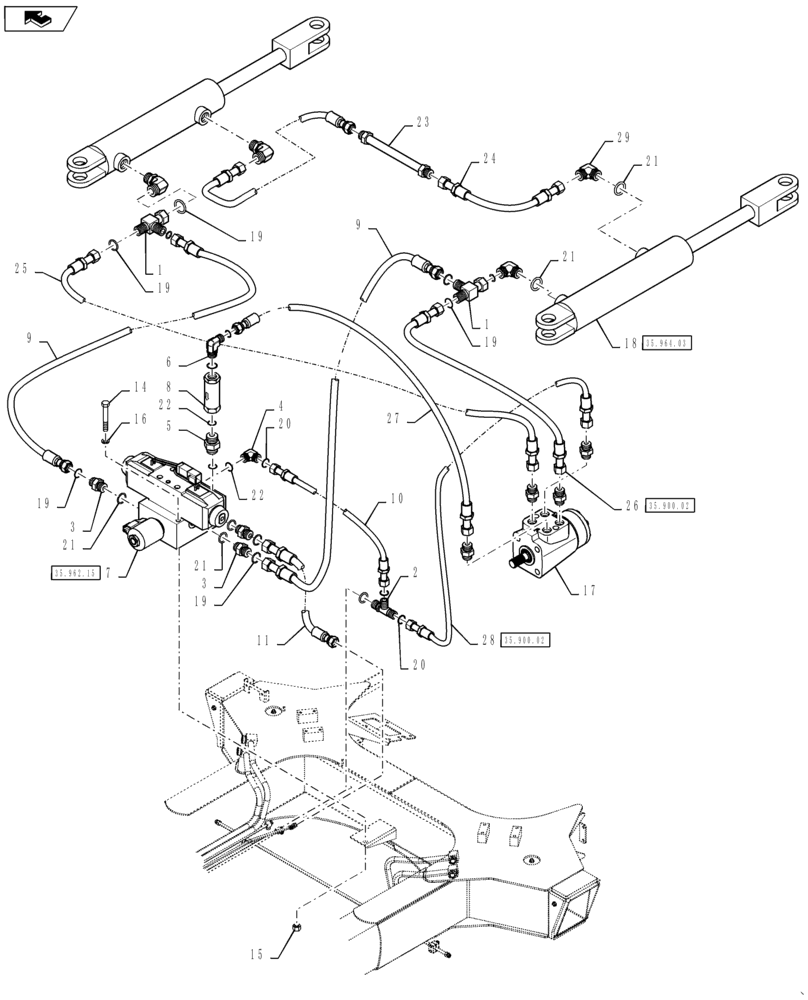

Запчасти Case IH PATRIOT 4440 (41.432.AG[01]) - AUTOGUIDANCE HYDRAULICS, BSN YGT044001 (41) - STEERING

1

BN302435

TEE

11/16" - 16 ORFS x 11/16" - 16 ORFS Swivel

2шт.

2

BN302436

TEE

13/16" - 16 ORFS x 13/16" - 16 ORFS Swivel

1шт.

3

BN302646

FITTING

11/16" - 16 ORFS x 9/16" - 18 ORB

3шт.

4

BN302558

ELBOW

13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

5

BN322765

FITTING

3/4" - 16 ORB x 3/4 - 16 ORB

1шт.

6

BN302554

FITTING

11/16" - 16 ORFS x 3/4" - 16 ORB x 90 Deg

1шт.

7

87609218

VALVE

Autoguidance

1шт.

See Fig 35.962.15 For Service Parts

1шт.

8

47626975

PRESSURE SWITCH

Auto Guide, Hydraulic Flow Control

1шт.

9

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 64" Long, Valve to Steering Cylinders

2шт.

10

BN309746

HOSE

13/16" - 16 ORFS Swivel x 13/16" - 16 ORFS Swivel x 3/8" ID x 40" Long, Valve to Return Steel Line

1шт.

11

BN314945

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 25" Long, Valve to Pressure Steel Line

1шт.

14

86980368

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

15

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

16

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

17

87267311

PUMP

Steering Orbital

1шт.

18

86986500

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

Steering

2шт.

See Fig 35.964.03 For Service Parts

1шт.

18

86986500R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, Steering (9/11-)

2шт.

18

86986500C

CORE-HYD CYLINDER

Return Number

2шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

14шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

4шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

7шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

4шт.

24

BN307821

HOSE ASSY.

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel Medium Elbow x 3/8" ID x 33.5" Long, Steering Cylinder To Crossover Tube

2шт.

25

87267163

HOSE

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel x 3/8" ID x 140" Long, Steering Motor to LH Steering Cylinder

1шт.

26

84226498

HOSE

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel x 3/8" ID x 121" Long, Steering Motor to RH Steering Cylinder

1шт.

27

BN321023

HOSE ASSY.

3/4" - 16 Female ORFS Swivel x 3/4" - 16 Female ORFS Swivel x 1/2" ID x 88" Long, Steering Motor to Return Steel Line

1шт.

28

BN321024

HOSE ASSY.

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel x 3/8" ID x 92" Long, Steering Motor to Pressure Steel Line

1шт.

29

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB

4шт.
