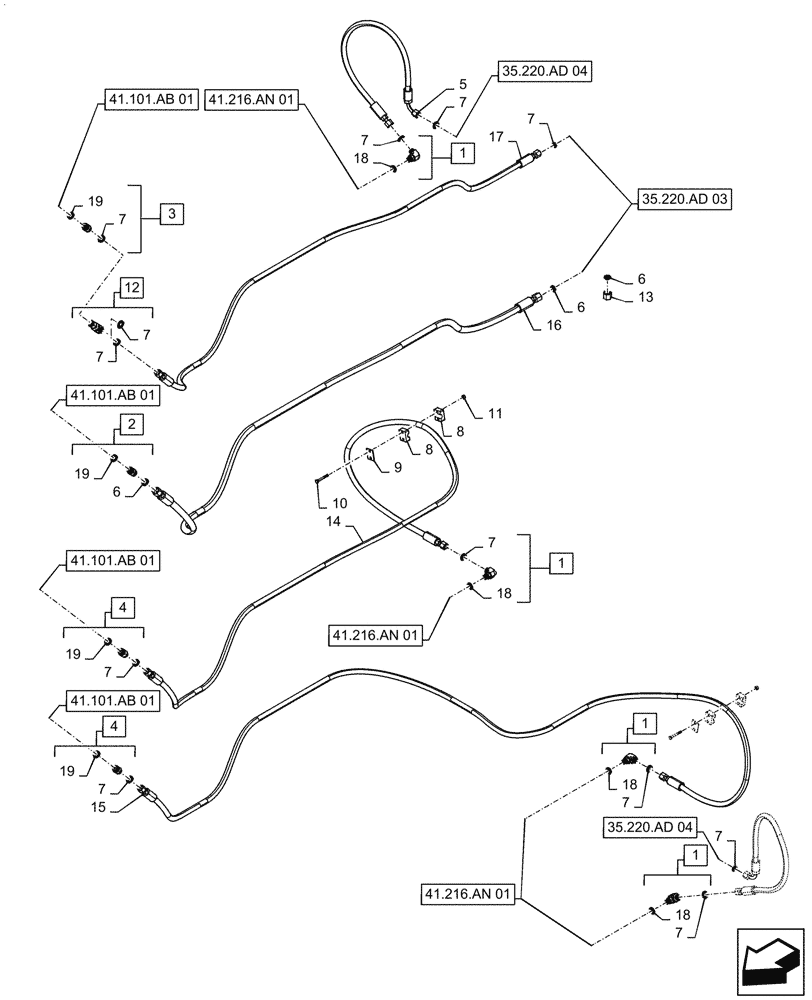

Запчасти Case IH PATRIOT 4440 (41.200.AO[02]) - STEERING LINES ASN YGT044000 (41) - STEERING

1

BN302553

ELBOW

90°, 11/16 -16 ORFS x 9/16 -18 ORB, Incl 7, 18

4шт.

2

BN302650

FITTING

Straight, 13/16-16 ORFS x 3/4-16 ORB, Incl 6, 19

1шт.

3

BN311751

CHECK VALVE

3/8" x 1/2", Incl 7, 19

1шт.

4

BN302647

FITTING

11/16-16 ORFS x 3/4-16 ORB, Incl 7, 19

2шт.

5

BN307821

HOSE ASSY.

11/16" - 16 Female ORFS Swivel, Short Straight x 11/16" - 16 Female ORFS Swivel, Medium Elbow x 3/8" ID x 33.5" Long, Steering Cylinder To Crossover Tube

2шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

8

BN315164

CLAMP

Single, 5/8" Tube

2шт.

9

BN29785

PLATE

Cover, Single, 1/2" Tube

2шт.

10

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

4шт.

11

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

12

BN302435

TEE

Union, 11/16 -16 ORFS x 11/16 -16 ORFS Swivel, Incl 7

1шт.

13

BN305427

CAP

13/16 - 16 ORFS, 1/2" Tube, Used on Steel Line

1шт.

14

48033903

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel, Short Straight x 11/16" - 16 Female ORFS Swivel, Short Straight x 3/8" ID x 10' 11 1/2" Long, Orbital Fitting to LH Steering Cylinder

1шт.

15

48033902

HYDRAULIC HOSE

13/16" - 16 Female ORFS Swivel, Straight Short, x 13/16" - 16 Female ORFS Swivel, Straight Short x 3/8" ID x 12' 8 3/4" Long, Orbital Fitting to RH Steering Cylinder

1шт.

16

47923949

HYDRAULIC HOSE

13/16" - 16 Female ORFS Swivel, Straight Short, x 13/16" - 16 Female ORFS Swivel, Straight Short x 1/2" ID x 8' 10 3/8" Long, Orbital Fitting to Steel Line

1шт.

17

47923950

HYDRAULIC HOSE

11/16" - 16 Female ORFS Swivel, Short Straight x 11/16" - 16 Female ORFS Swivel, Short Straight x 3/8" ID x 8' 7 3/4" Long, Orbital Fitting to Steel Line

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
