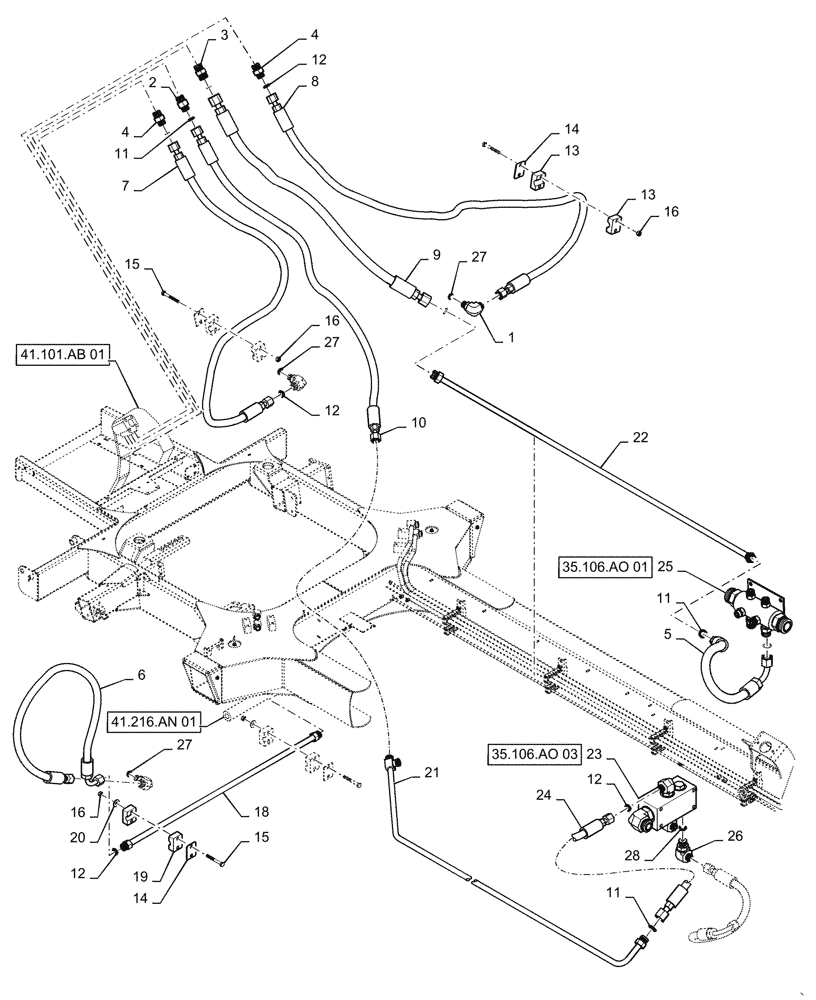

Запчасти Case IH PATRIOT 4440 (41.200.AO[01]) - STEERING HYDRAULICS, BSN YGT044001 (41) - STEERING

1

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB

4шт.

2

BN311751

CHECK VALVE

11/16" - 16 OFRS x 3/4" - 16 ORB

1шт.

3

BN302650

FITTING

13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

4

BN302647

FITTING

11/16" - 16 OFRS x 3/4" - 16 ORB

2шт.

5

BN307840

HOSE ASSY.

13/16" - 16 Female ORFS Swivel Short Elbow x 13/16" - 16 Female ORFS Swivel x 1/2" ID x 20" Long, Steel Line to Return Manifold

1шт.

6

BN307821

HOSE ASSY.

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel Medium Elbow x 3/8" ID x 33.5" Long, Steering Cylinder To Crossover Tube

2шт.

7

87267163

HOSE

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel x 3/8" ID x 140" Long, Steering Motor to LH Steering Cylinder

1шт.

8

84226498

HOSE

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel x 3/8" ID x 121" Long, Steering Motor to RH Steering Cylinder

1шт.

9

BN321023

HOSE ASSY.

3/4" - 16 Female ORFS Swivel x 3/4" -16 Female ORFS Swivel x 1/2" ID x 88" Long, Steering Motor to Return Steel Line

1шт.

10

BN321024

HOSE ASSY.

11/16" - 16 Female ORFS Swivel x 11/16" - 16 Female ORFS Swivel x 3/8" ID x 92" Long, Steering Motor to Pressure Steel Line

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

5шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

11шт.

13

BN315164

CLAMP

Single, 5/8" Tube

2шт.

14

BN29785

PLATE

Cover, Single, 1/2" Tube

4шт.

15

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 - 1 x 50, 8.8, DOR

8шт.

16

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

17

BN570007

STRAP

Black Only .12-4.0 Band, Not Shown

4шт.

18

BN324491

TUBE

1/2" x 58.5" Long, Steering Cylinder Cross Over Tube

1шт.

19

BN29783

CLAMP

Single, 1/2" Tube

2шт.

20

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6mm x 18mm x 1.6 mm, CST, DOR

4шт.

21

84279309

HYD TUBE

1/2", Steering And Dynamic Brake Pressure

1шт.

22

84279310

HYD TUBE

1/2", Steering Return

1шт.

23

BN323902

MANIFOLD

Pressure

1шт.

See Fig 35.962.07 For Service Parts

1шт.

24

343293A1

HOSE

11/16" - 16 Female ORFS Swivel x 13/16" - 16 Female ORFS Swivel x 3/8" ID x 24" Long, Pressure Manifold to Steel Line

1шт.

25

BN307639

MANIFOLD

Return Manifold

1шт.

26

BN302554

FITTING

11/16" - 16 ORFS x 3/4" - 16 ORB x 90 Deg

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

4шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

5шт.
