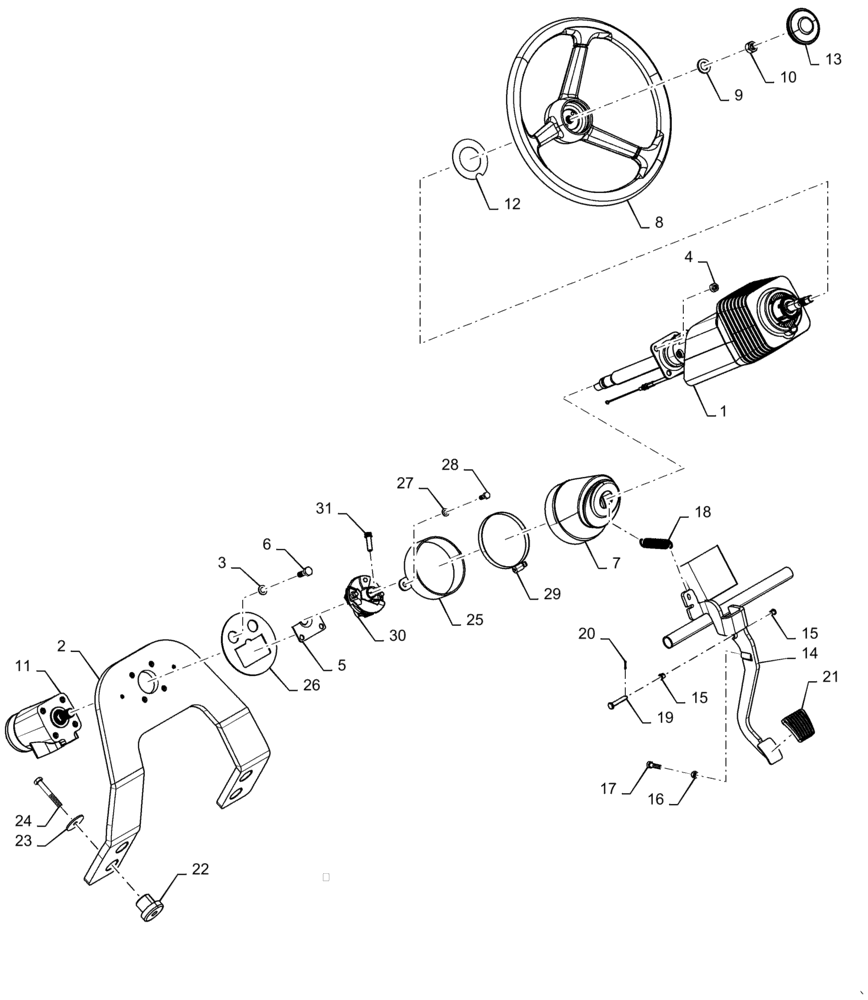

Запчасти Case IH PATRIOT 4440 (41.101.AB[01]) - STEERING COLUMN, DELUXE CAB, LUXURY CAB (41) - STEERING

1

47553309

STEERING COLUMN

Steering Column

1шт.

2

343214A1

PLATE

Pump Support

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

86500689

NUT,M10 x 1.5, Cl 10

4шт.

5

450945A1

STOP DEVICE

Steering Pump Shaft

1шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

7

373193A1

BOOT

Steering

1шт.

8

301200A1

STEERING WHEEL

Deluxe

1шт.

8

359033A1

STEERING WHEEL

Luxury

1шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

10

86639148

NUT,M14 x 1.5, Cl 8

1шт.

11

87267311

PUMP

Steering Series 10, 11.3 D

1шт.

12

1977448C2

WASHER

Support. Boot

1шт.

13

361024A3

CAP

Deluxe & Luxury

1шт.

14

47709826

PEDAL

With Steering Adjust

1шт.

15

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

2шт.

16

829-1508

NUT,M8, Cl 10

1шт.

17

86637961

BOLT,Hex, M8 x 30mm, Cl 8.8, Full Thd

1шт.

18

311812A1

SPRING

Extension

1шт.

19

729-845

CLEVIS PIN,M8 x 45

1шт.

20

733-2012

COTTER PIN,M2 x 12

1шт.

22

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Front Mount

4шт.

23

86637950

WASHER,0.41" ID x 1.75" OD x 0.12" Thk

4шт.

24

86639030

BOLT,Hex, M10 x 70mm, Cl 10.9, Full Thd

4шт.

25

373194A1

HOUSING

Boot Mounting

1шт.

26

86983451

SEAL

Closed Cell Foam

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

2шт.

29

214-1580

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm, W/ Liner

1шт.

30

L100096

ISOLATOR

Bushing Steering Noise

1шт.

31

CAS7807271

SCREW

2шт.
