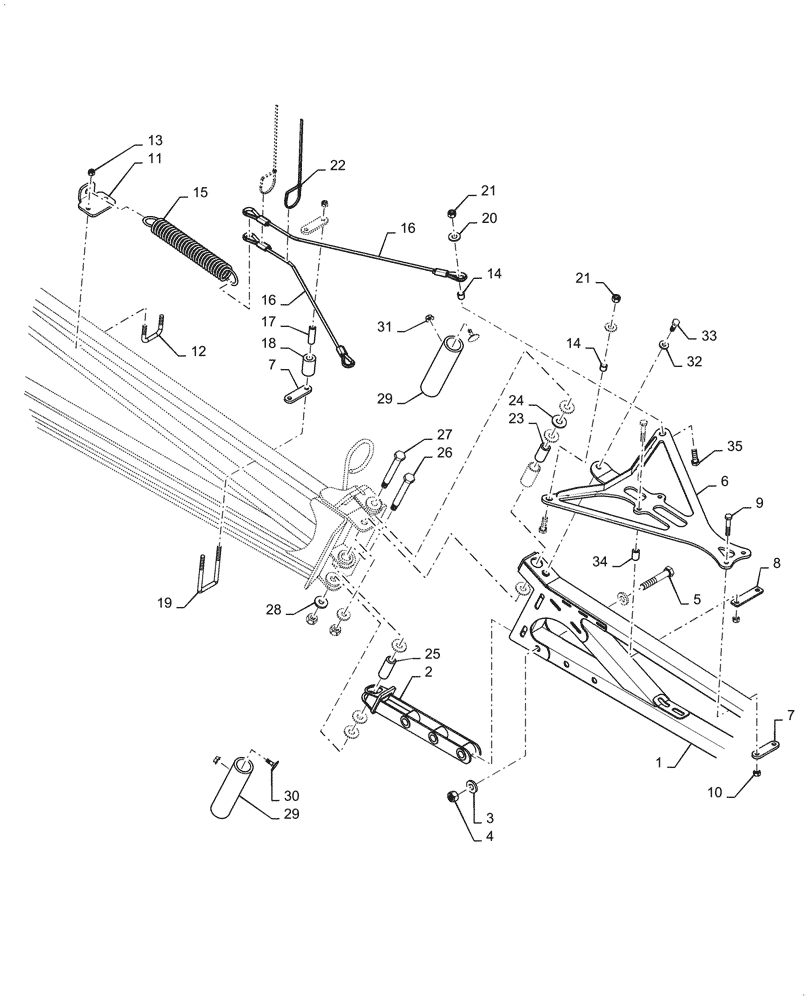

Запчасти Case IH PATRIOT 4440 (39.130.AE[03.1]) - BOOM, BREAKAWAY, 120 BOOM, ASN YGT044000 (39) - FRAMES AND BALLASTING

1

87704806

BOOM

Breakaway, 120' Boom

1шт.

2

87272889

EXTENSION

Insert, Pivot

1шт.

3

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

DOR

6шт.

4

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

5шт.

5

86980510

BOLT,Hex, M16 x 90mm, Cl 8.8

DOR

3шт.

6

48017556

ARM

Breakaway

1шт.

7

BN308039

PLATE

Spacer

3шт.

8

87620862

PLATE

Backer, 2 1/2" Tube

1шт.

9

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

DOR

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

11

84217032

PLATE

Breakaway Spring

1шт.

12

BN68062

U-BOLT

3/8"

1шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

14

47636886

BUSHING

5/8" OD x 1/2" ID

2шт.

15

BN305410

SPRING

Breakaway, 1.67" OD x 12" Long

1шт.

16

47587695

CABLE

Breakaway, 24"

2шт.

17

47361072

GUIDE

Insert, Break-A-Way

2шт.

18

47361079

GUIDE

Cable, Break-A-Way

2шт.

19

BN305434

U-BOLT

3/8" x 2" x 4 1/2"

1шт.

20

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

1шт.

21

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

22

BN570007

STRAP

Black, 14-1/2"

2шт.

23

87637173

BUSHING,16.14mm ID x 25.2mm OD x 53mm L

1шт.

24

87272614

WASHER,17.5mm ID x 38.1mm OD x 3.18mm Thk

Nylon

6шт.

25

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

1шт.

26

84189219

BOLT

M16 x 120

1шт.

27

84189224

BOLT

M16 X 110

1шт.

28

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

29

87706358

HOSE,38.10 mm ID

2шт.

30

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

31

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

32

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

33

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

34

87706359

BUSHING,11.4mm ID x 17.5mm OD x 24.8mm L

2шт.

35

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.
