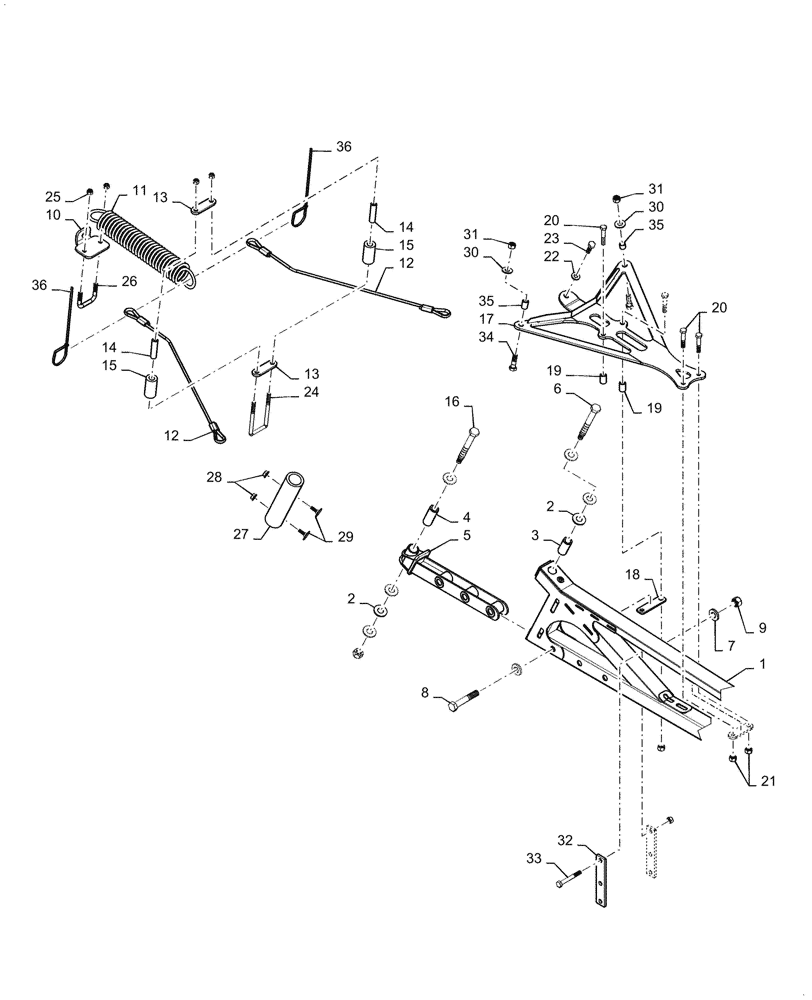

Запчасти Case IH PATRIOT 4440 (39.130.AE[02.1]) - BOOM BREAKAWAY, 100 BOOM, ASN YGT 044000 (39) - FRAMES AND BALLASTING

1

87686306

BOOM

Breakaway, 100' Boom

1шт.

2

87272614

WASHER,17.5mm ID x 38.1mm OD x 3.18mm Thk

7шт.

3

87637173

BUSHING,16.14mm ID x 25.2mm OD x 53mm L

1шт.

4

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

1шт.

5

87272889

EXTENSION

Insert, Pivot

1шт.

6

84189224

BOLT

M16 X 110

1шт.

7

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

8

86980510

BOLT,Hex, M16 x 90mm, Cl 8.8

3шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

5шт.

10

84217032

PLATE

Spring

1шт.

11

BN305410

SPRING

1 11/16" x 12"

1шт.

12

47587695

CABLE

Breakaway, 23 1/2"

2шт.

13

BN308039

PLATE

Spacer

3шт.

14

47361072

GUIDE

Insert, Break-A-Way

2шт.

15

47361079

GUIDE

Cable, Break-A-Way

2шт.

16

84189219

BOLT

M16 x 120

1шт.

17

48017556

ARM

Breakaway

1шт.

18

87620862

PLATE

Backer, 2 1/2" Tube

1шт.

19

87706359

BUSHING,11.4mm ID x 17.5mm OD x 24.8mm L

2шт.

20

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

4шт.

21

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

22

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

23шт.

23

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

24

BN305434

U-BOLT

3/8" x 2" x 4 1/2"

1шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

26

BN68062

U-BOLT

3/8"

1шт.

27

87706358

HOSE,38.10 mm ID

Breakaway Bumper

2шт.

28

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

29

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

30

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

2шт.

31

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

32

87707554

BRACKET, SUPPORTING

Backer, Spraybar

4шт.

33

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

6шт.

34

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

35

47636886

BUSHING

5/8" OD x 1/2" ID

2шт.

36

BN570007

STRAP

14"

2шт.
