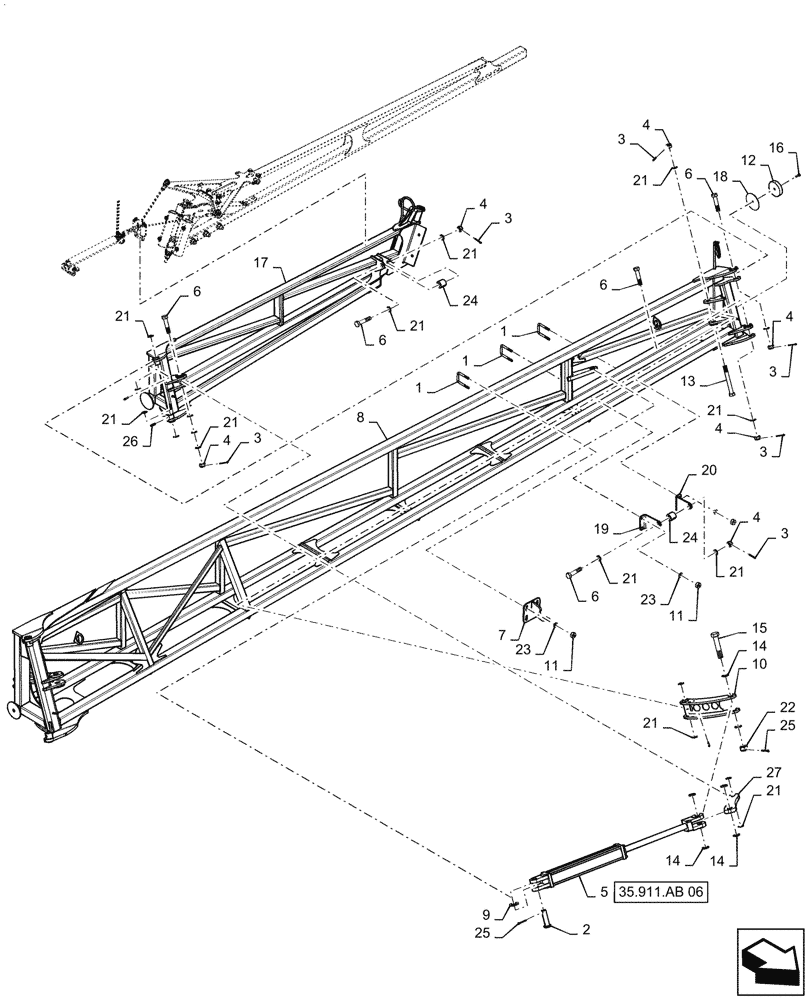

Запчасти Case IH PATRIOT 4440 (39.130.AB[06.1]) - LH MID AND OUTER BOOM, 120, ASN YGT044000 (39) - FRAMES AND BALLASTING

1

47650282

U-BOLT

M10, 2" ID x 3 1/4" Long

4шт.

2

87735776

PIN,25.4mm OD x 111.5mm L

1шт.

3

BN50604

COTTER PIN

6шт.

4

47917717

NUT

Slotted, 3/4-10, DOR

6шт.

5

87505171

HYDRAULIC CYLINDER,31.75mm Rod, 406.4mm Stroke

Outer Boom Fold, 2-1/2" x 16", 1-1/4" rod, 120' Boom

1шт.

See 35.911.AB 06 For Service

1шт.

6

47919090

BOLT

3/4-10 X 3-3/8", DOR

4шт.

7

84192693

CRADLE

Outer Boom

1шт.

8

48004836

BOOM

Middle, LH, 120'

1шт.

9

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

DOR

1шт.

10

84126409

ARM

Double

1шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

12

87501590

BUMPER

Poly, 89mm OD x 19MM Thick

1шт.

13

47919094

BOLT

3/4-10 X 6 3/8", DOR

1шт.

14

87564721

WASHER,1.02" ID x 1.5" OD x 0.12" Thk

DOR

6шт.

15

47919096

BOLT

1-8 X 5", DOR

1шт.

16

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

47929668

BOOM

Outer, LH, 120'

1шт.

18

87501591

WASHER,10.3mm ID x 101.6mm OD x 2.08mm Thk

1шт.

19

84387712

MOUNT

Inner Roller, LH

1шт.

20

84387718

MOUNT

Inner Roller, RH

1шт.

21

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

18шт.

22

87343900

SLOTTED NUT

1-8 X 6, DOR

1шт.

23

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

DOR

8шт.

24

87503700

ROLLER

19.45mm ID x 38.1mm OD x 36mm Long

2шт.

25

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

27

84126408

ARM

Single

1шт.
