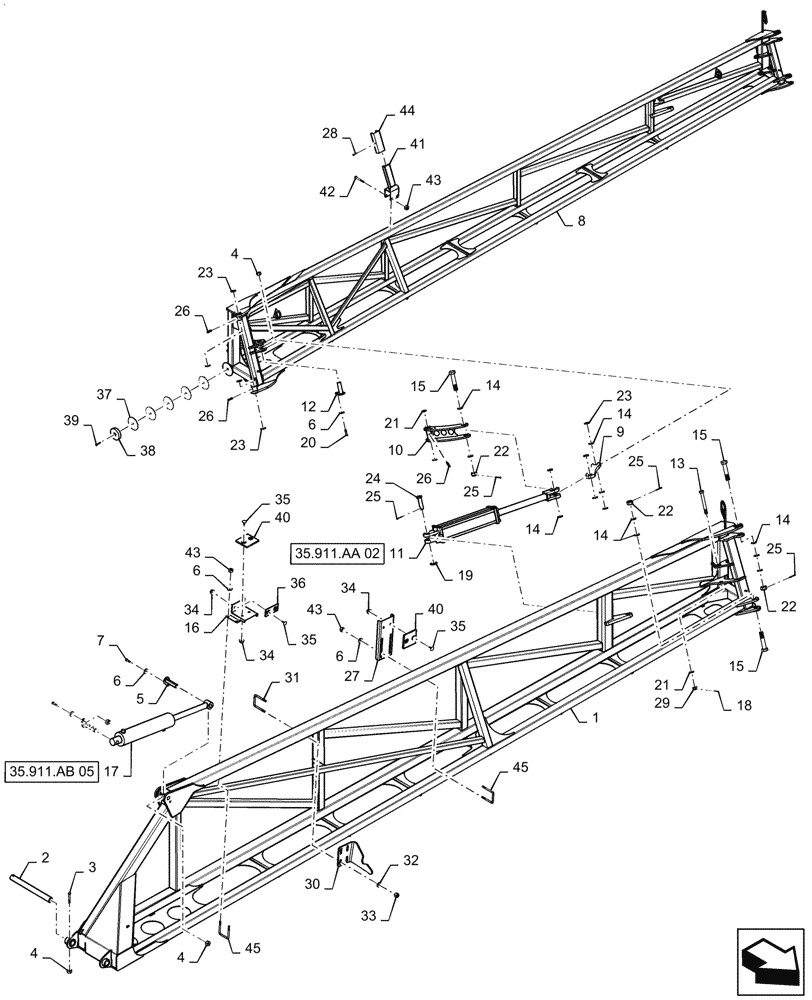

Запчасти Case IH PATRIOT 4440 (39.130.AB[05.1]) - LH INNER AND MID BOOM, 120 BOOM, ASN YGT044000 (39) - FRAMES AND BALLASTING

1

48004838

BOOM

Inner, LH, 120'

1шт.

2

BN326079

PIN,38.1mm OD x 408.94mm L

Boom Pivot

1шт.

3

87698857

BOLT,Hex, M10 x 80mm, Cl 10.9

DOR

1шт.

4

87344003

NUT,M10-1.5, 10, DOR

4шт.

5

BN305621

PIN

Boom Level Cylinder

2шт.

6

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

10шт.

7

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

2шт.

8

48004836

BOOM

Middle, LH, 120'

1шт.

9

84306382

ARM

Single

1шт.

10

84126409

ARM

Double

1шт.

11

87446384

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

Mid Boom Fold Cylinder

1шт.

See 35.911.AB 05 For Service

1шт.

12

BN307223

PIN,25.4mm OD x 85.85mm L

Locking

1шт.

13

47919094

BOLT

3/4-10 X 6 3/8", DOR

1шт.

14

87564721

WASHER,1.02" ID x 1.5" OD x 0.12" Thk

DOR

13шт.

15

47919096

BOLT

1-8 X 5", DOR

3шт.

16

47960073

SUPPORT

LH Upper Cradle

1шт.

17

87566312

HYDRAULIC CYLINDER,Double Acting, 41.27mm Rod, 368.3mm Stroke

Boom Level Cylinder, 120' Boom

1шт.

See 35.911.AA 02 For Service

1шт.

18

BN50604

COTTER PIN

1/8" x 1 1/2"

1шт.

19

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

DOR

1шт.

20

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

21

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

3шт.

22

87343900

SLOTTED NUT

1 -8, DOR

3шт.

23

87564722

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

DOR

4шт.

24

87735776

PIN,25.4mm OD x 111.5mm L

1шт.

25

87399

COTTER PIN,1/2 x 3 Bolt

4шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

27

87705378

PLATE

Boom Stop

1шт.

28

47964322

SCREW

# 11 -16 x 3/4"

2шт.

29

47917717

NUT

Slotted, 3/4-10, DOR

1шт.

30

84204419

CRADLE

Inner Boom, LH

1шт.

31

1404

U-BOLT

1/2" x 3 1/8" W x 4 1/4" D

2шт.

32

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

DOR

4шт.

33

87343983

NUT

1/2"-13, DOR

4шт.

34

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

6шт.

35

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

6шт.

36

BN319335

PAD

Boom Rest

1шт.

37

87501591

WASHER,10.3mm ID x 101.6mm OD x 2.08mm Thk

5шт.

38

87501590

BUMPER

Poly, 89mm OD x 19MM Thick

1шт.

39

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

40

BN320995

PAD

Boom Rest, Bottom

2шт.

41

87621178

STOP

Boom Breakaway

1шт.

42

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

43

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

44

87573707

CHANNEL

Snap-On 1" x 2" x 6"

1шт.

45

47654099

U-BOLT

M10, 4" x 3 1/2"

4шт.
