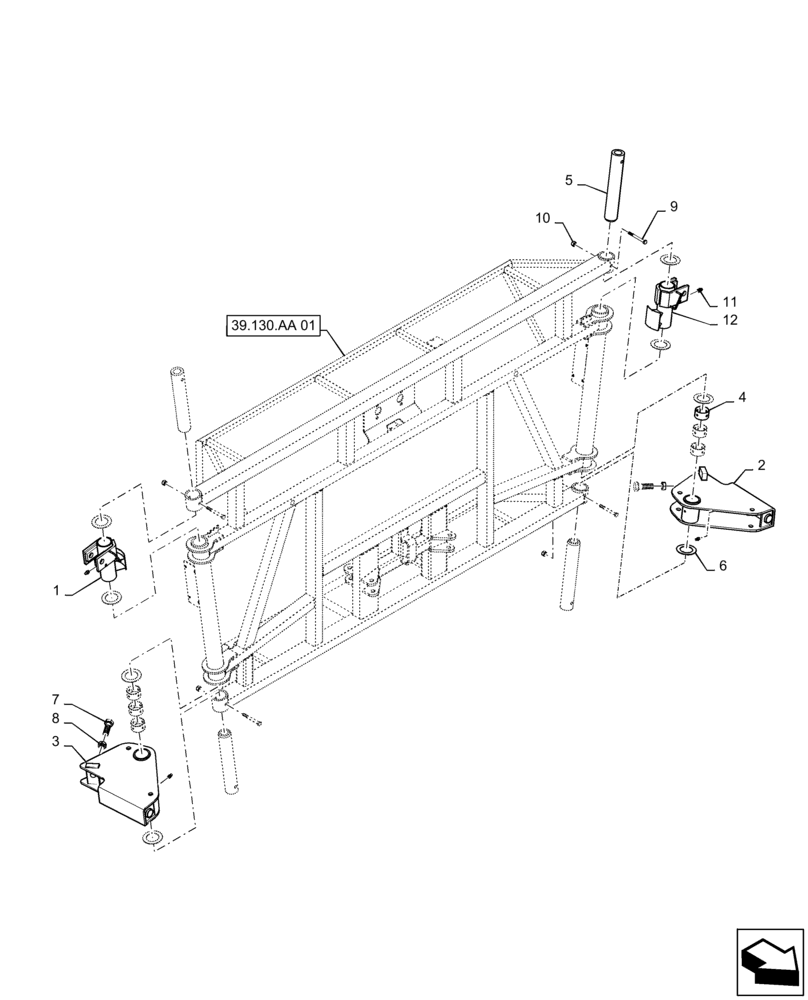

Запчасти Case IH PATRIOT 4440 (39.130.AB[01]) - MAST PIVOT ASSEMBLY, 90/100 (39) - FRAMES AND BALLASTING

1

84355734

MOUNT

RH, Upper Cylinder

1шт.

2

47622412

PIVOT

Inner Boom, LH

1шт.

3

47622414

PIVOT

Inner Boom, RH

1шт.

4

87675983

GROOVED BUSHING,64.11mm ID x 76.43mm OD x 114mm L

76.m OD x 64mm ID x 114mm

2шт.

5

BN306646

TUBE

Inner Pivot

4шт.

6

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

Bushing, 2.5" ID

8шт.

7

87644287

BOLT

1" - 14 x 3", GR8, DOR

2шт.

8

87310319

JAM NUT,1"-14, G8

2шт.

9

87695425

BOLT,Hex, M12 x 110mm, Cl 10.9

M 12 x 110mm, DOR

4шт.

10

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

11

BN302051

NIPPLE, LUBE,M8 x 1, Straight

8шт.

12

84355742

MOUNT

LH, Upper Cylinder

1шт.
