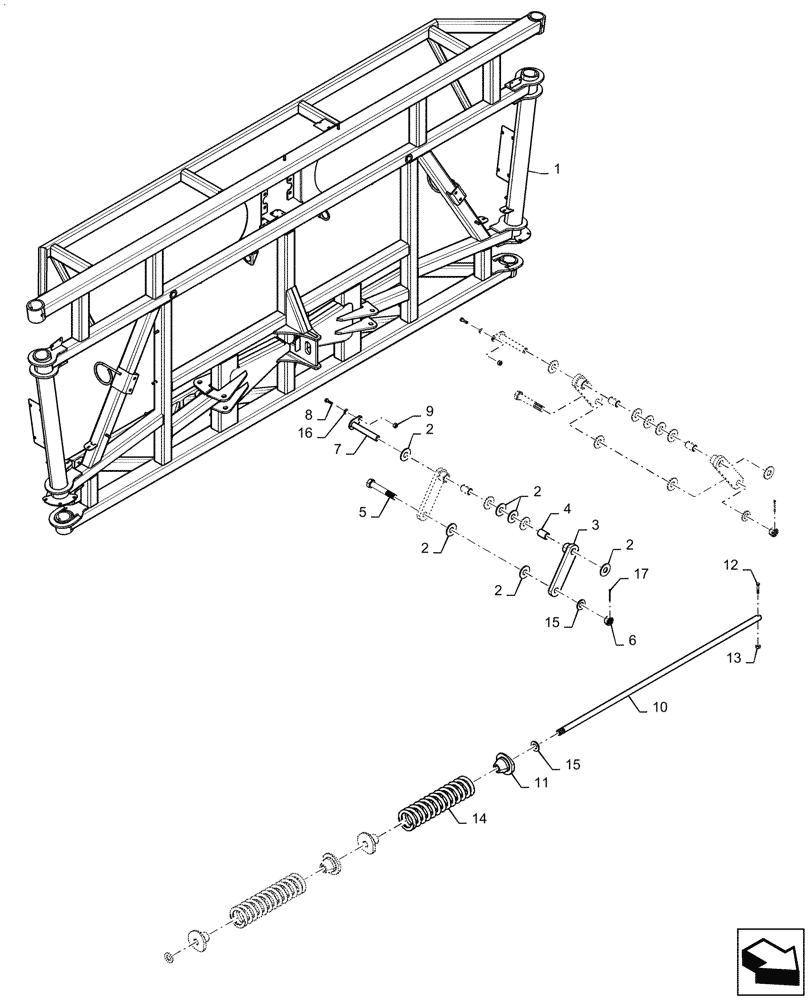

Запчасти Case IH PATRIOT 4440 (39.130.AA[05.1]) - BOOM CENTER SECTION, 120, ASN YGT044000 (39) - FRAMES AND BALLASTING

1

48004846

BOOM

Center Section

1шт.

2

87529124

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

16шт.

3

87707145

HANGER

Center Boom, Bracket

4шт.

4

87714127

BUSHING

Hanger

4шт.

5

47919309

BOLT

1" -8 x 6"

2шт.

6

87343900

SLOTTED NUT

1 -8

4шт.

7

BN306785

PIN

Hanger

2шт.

8

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

2шт.

9

87344003

NUT,M10-1.5, 10, DOR

2шт.

10

87543736

ROD

Spring Retainer

1шт.

11

87536126

RETAINER

Spring

4шт.

12

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

14

87700743

COMPRESSION SPRING

120' Boom

2шт.

15

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

2шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

17

BN50601

PIN, SPLIT (COTTER)

3/16" x 2"

2шт.
