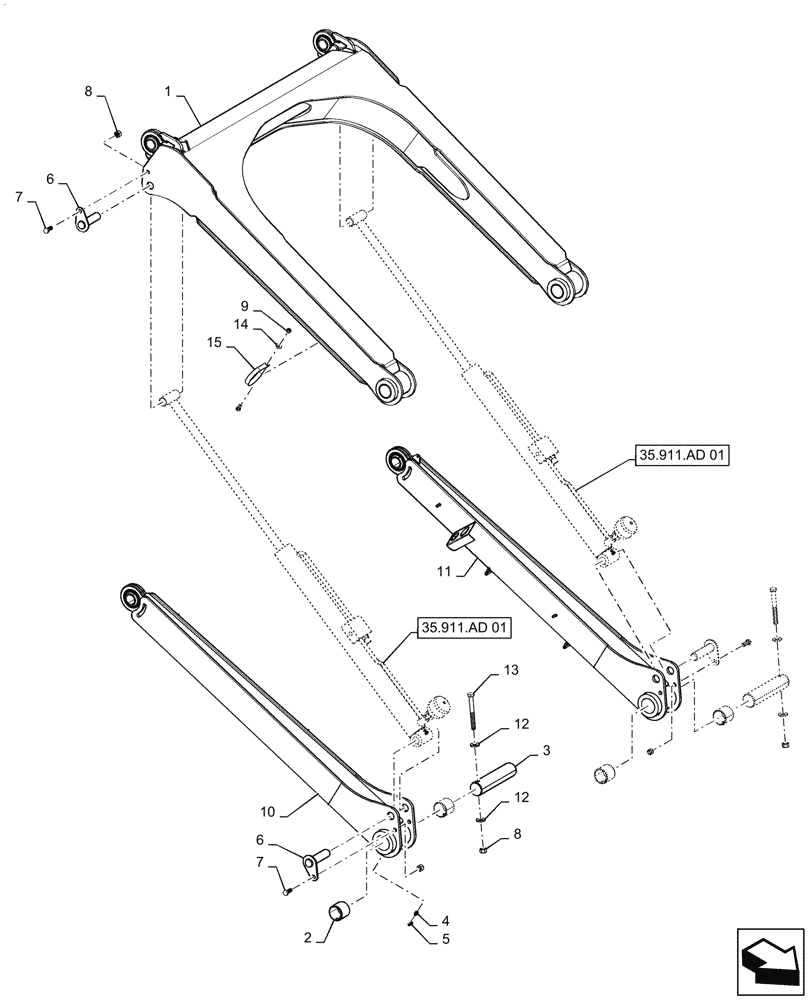

Запчасти Case IH PATRIOT 4440 (39.130.AA[04.1]) - BOOM HEIGHT, PARALLEL LINKAGE, ASN YGT 044000 (39) - FRAMES AND BALLASTING

1

47834828

LINK

Upper

1шт.

2

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

Spring

8шт.

3

84488958

PIN

Parallel Link

4шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

4шт.

5

BN69951

CAP

Grease

4шт.

6

87271475

PIN

Parallel Linkage, Boom End

4шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

9

47575188

NUT

5/16" -18, SST

2шт.

10

48004568

LINK

RH, Lower

1шт.

11

48004571

LINK

LH, Lower

1шт.

12

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5mm x 28mm x 4 mm, HDN, DOR

8шт.

13

87695425

BOLT,Hex, M12 x 110mm, Cl 10.9

M12 x 110mm, 10.9, DOR

4шт.

14

BN50142

WASHER,5/16", Stainless Steel

2шт.

15

87021161

CLAMP,76.2mm, Coat, 8.7mm Bolt Hole, P Type

2шт.
