(39.130.AA[04]) - BOOM HEIGHT, PARALLEL LINKAGE, BSN YGT044001

Запчасти Case IH PATRIOT 4440 (39.130.AA[04]) - BOOM HEIGHT, PARALLEL LINKAGE, BSN YGT044001 (39) - FRAMES AND BALLASTING

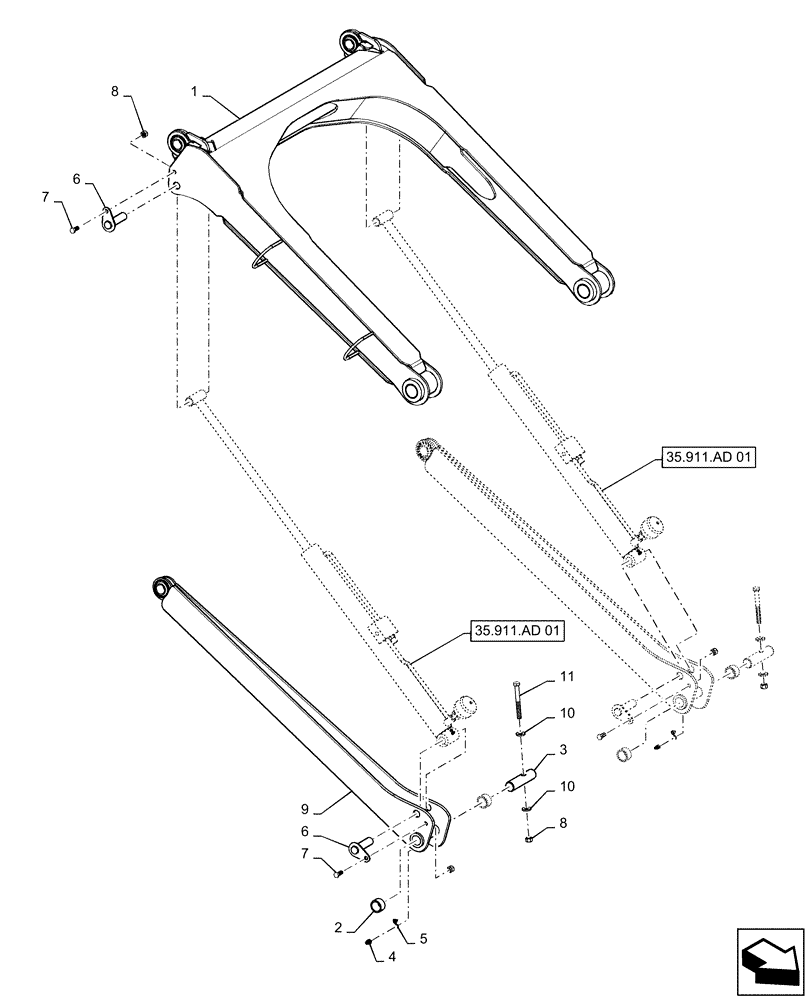

Схема запчастей Case IH PATRIOT 4440 - (39.130.AA[04]) - BOOM HEIGHT, PARALLEL LINKAGE, BSN YGT044001 (39) - FRAMES AND BALLASTING
35.911.ad 01
2
5
9
35.911.ad 01
4
8
10
7
6
6
7
8
1
10
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84158058

LIFT LINK

Upper

1шт.

2

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

Spring

8шт.

3

84488958

PIN

Parallel Link

4шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

4шт.

5

BN69951

CAP

Grease

4шт.

6

87271475

PIN

Parallel Linkage, Boom End

4шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

9

84158059

LIFT LINK

Lower Link

2шт.

10

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5mm x 28mm x 4 mm, HDN, DOR

8шт.

11

87695425

BOLT,Hex, M12 x 110mm, Cl 10.9

M12 x 110mm, 10.9, DOR

4шт.
