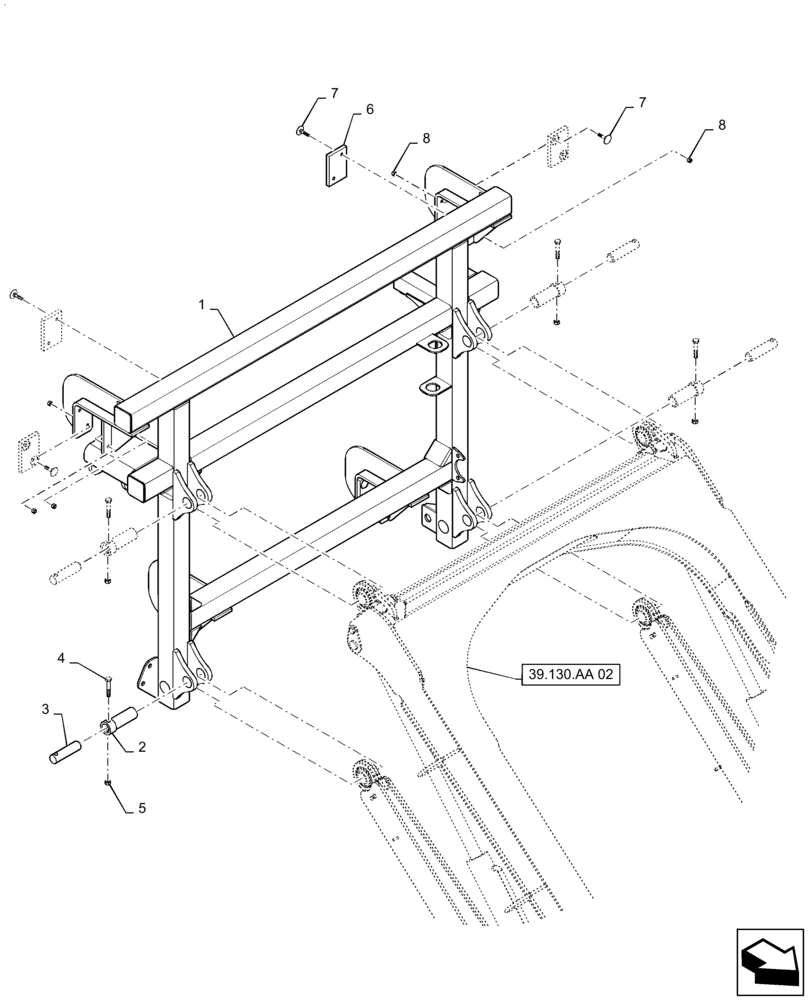

Запчасти Case IH PATRIOT 4440 (39.130.AA[03]) - MAST ASSEMBLY, 90/100, 120 BOOMS (39) - FRAMES AND BALLASTING

1

87492632

MAST ASSEMBLY

Boom, Serial Range: -YGT 044000

1шт.

1

48004573

MAST ASSEMBLY

Boom, Start Serial: YGT 044001

1шт.

2

47123096

BUSHING,28.7mm ID x 37mm OD x 45mm L

4шт.

3

BN307221

PIN

1.125" OD x 4.38"

4шт.

4

87695424

BOLT,Hex, M10 x 60mm, Cl 10.9

M10 - 1.5 x 60mm, 10.9, DOR

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

6

BN306777

PAD

Boom Slide

8шт.

7

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

8

87343959

NUT,5/16" - 18, GR B, DOR

16шт.
