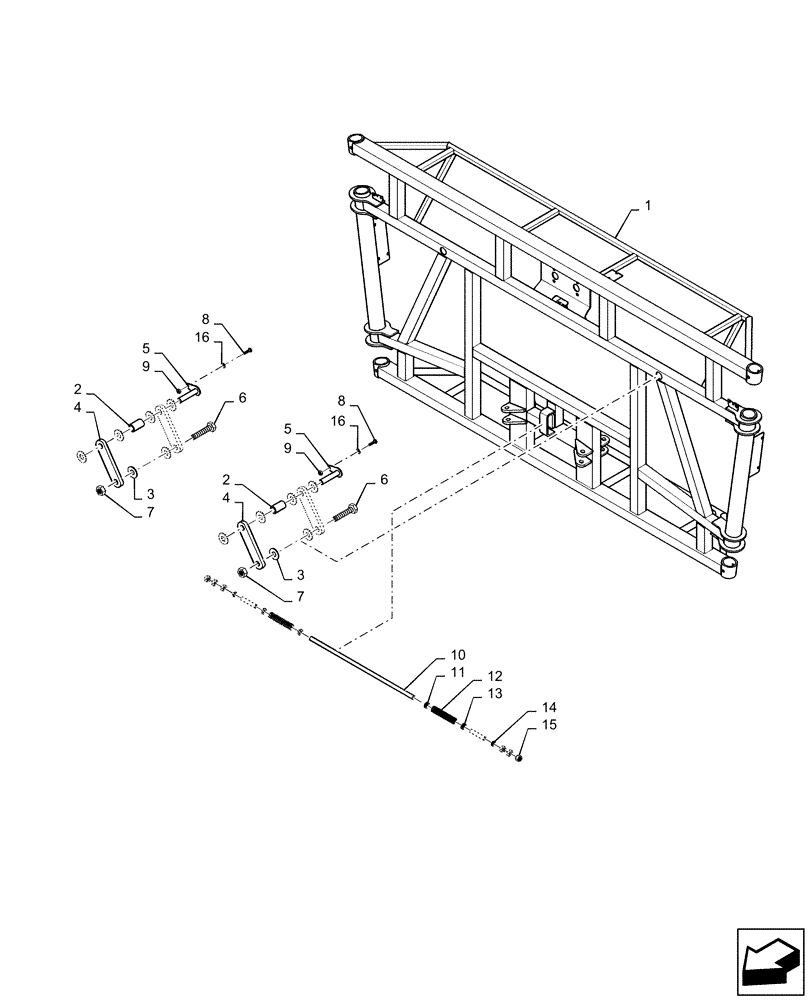

Запчасти Case IH PATRIOT 4440 (39.130.AA[01]) - BOOM CENTER SECTION, 90/100 (39) - FRAMES AND BALLASTING

1

87272748

FRAMEWORK

Center Section, 90/100' Boom

1шт.

2

BN308003

BUSHING

Hanger

2шт.

3

87529124

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1.062" x 2.50" x .165" CST, DOR

12шт.

4

BN29505

HANGER

Center Boom, Bracket

4шт.

5

BN306785

PIN

Hanger

2шт.

6

87310330

BOLT

1" - 14 x 6", Gr 5

2шт.

7

87310319

JAM NUT,1"-14, G8

4шт.

8

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

2шт.

9

87344003

NUT,M10-1.5, 10, DOR

2шт.

10

BN306783

SHAFT

Center Boom Hanger, Threaded 1"

1шт.

11

896-16024

WASHER,26mm ID x 56mm OD x 6mm Thk

4шт.

12

BN27328

SPRING

Compression, 1.75" OD x11"

2шт.

13

BN306784

TUBE

Spacer, Hanger

2шт.

14

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26mm x 44mm x 5 mm, HDN, DOR

2шт.

15

87343879

JAM NUT

1" - 8, Gr 5, DOR

8шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.
