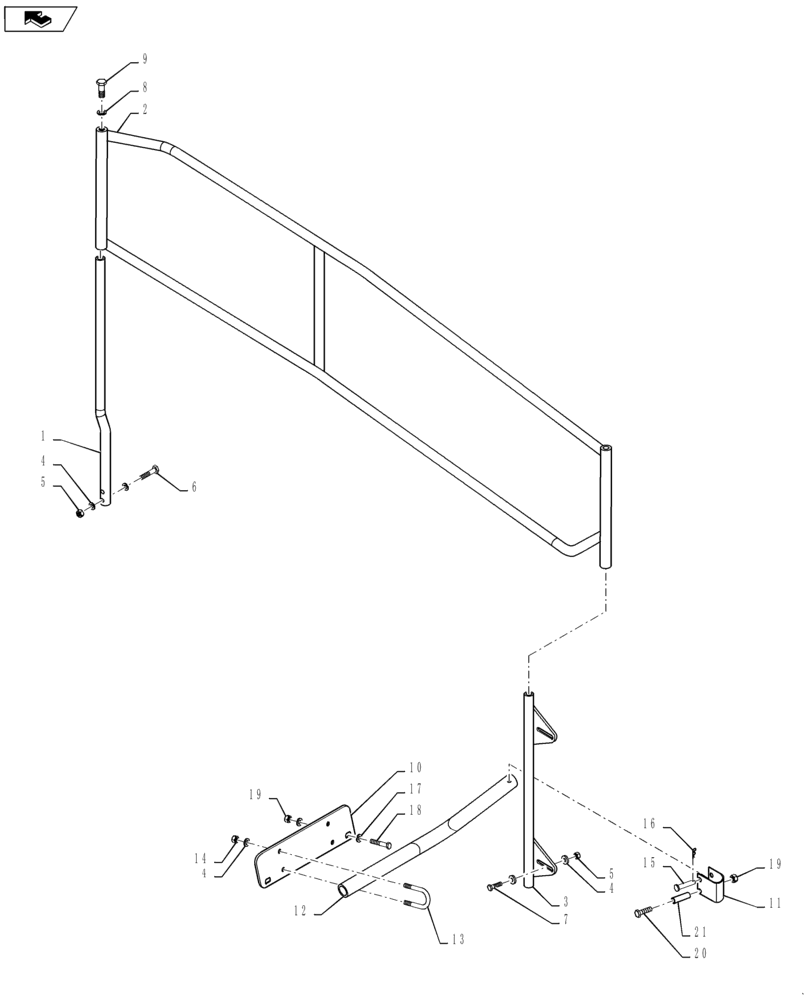

Запчасти Case IH PATRIOT 4440 (39.100.AT[08]) - MIDDLE WALKWAY HANDRAIL, 120’ BOOM (39) - FRAMES AND BALLASTING

1

84480935

POST

Rear, Handrail

1шт.

2

84536535

HANDRAIL

Middle Walkway, 120'

1шт.

3

84536539

POST

Front, Handrail

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

6

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

M8 x 25 x 2, CST, DOR

2шт.

9

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

10

87471544

MOUNT

Handrail Support

1шт.

11

84481960

ANCHOR

Handrail Support

1шт.

12

87471545

SUPPORT TUBE,370, 322 mm L

Handrail Support

1шт.

13

87267464

U-BOLT

3/8-16 x 1.5 ID x 2.50

2шт.

14

87343970

NUT,3/8"-16, G8, DOR

4шт.

15

87344039

PIN

M8 X 60 HTS DOR

1шт.

16

48090454

PIN

Hair

1шт.

17

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

18

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

20

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

21

84482026

SPACER

1-1/4" Long

1шт.
